GEAR SHIFTING

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

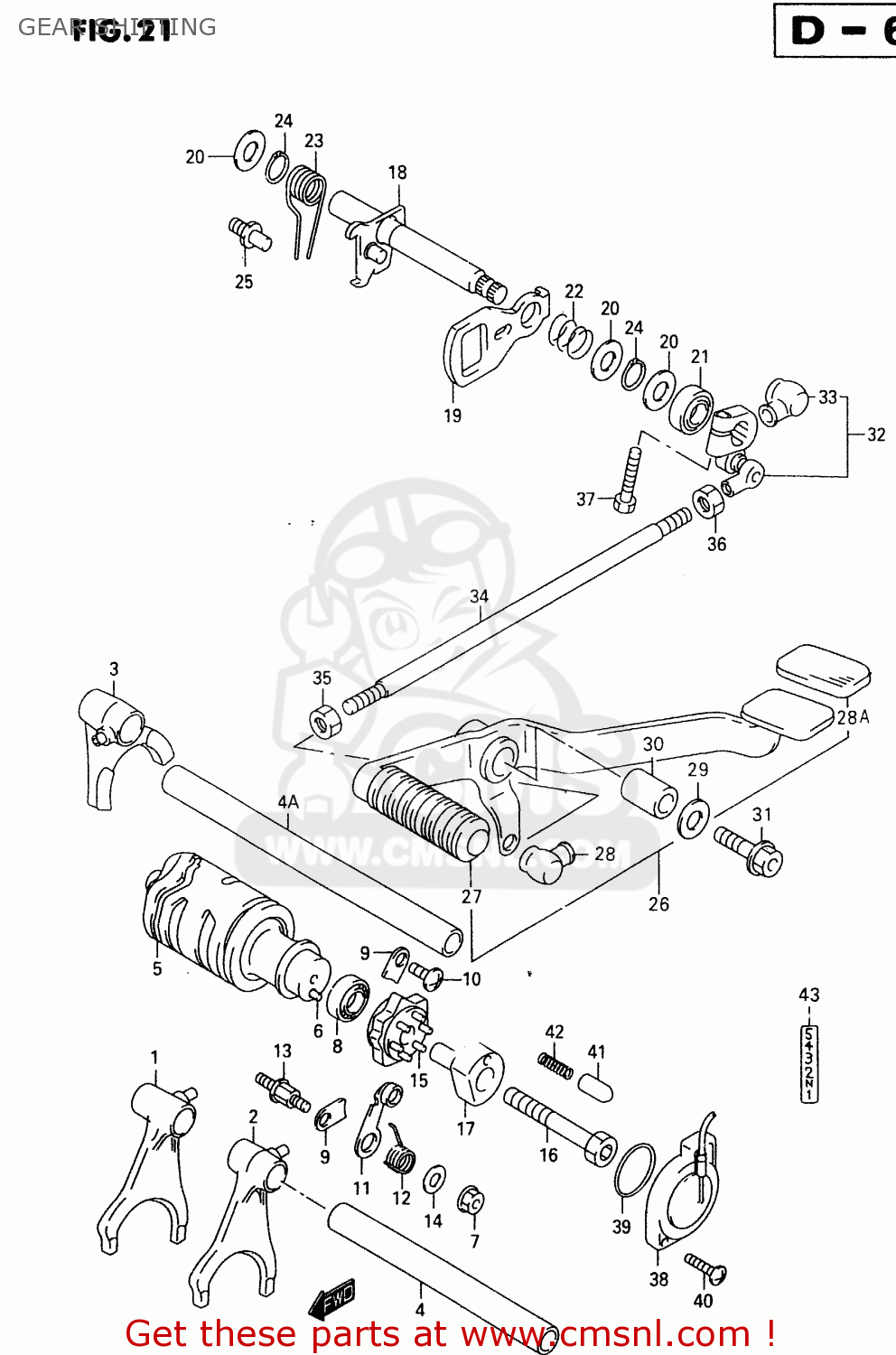

Gear shifting diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

GEAR SHIFTING VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
GEAR SHIFTING VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
GEAR SHIFTING VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1
2521138B11
ref: 1
FORK,GEAR SHIFT NO.1
2521138B11
€ 83.00
2
2522138B10
ref: 2
FORK,GEAR SHIFT NO.2
2522138B10
€ 83.00
3
2523110F00
ref: 3
FORK,GEAR SHIFT NO.3
€ 83.50
4
2541110F10
ref: 4
SHAFT,GEAR SHIFT FORK NO.1
€ 28.00
4A
2541110F20
ref: 4A
SHAFT GEAR SHIFT FORK NO.2
2541110F20
€ 29.50
5
2531010F00
ref: 5
CAM,GEAR SHIFT
€ 205.00
6
0422104089
ref: 6
PIN
0422104089
€ 1.50
7
0831610063
ref: 7
NUT
0831610063
€ 2.50
8
0926225006
ref: 8
BEARING(25X47X8)
0926225006
€ 24.00
9
2474218A00
ref: 9
RETAINER,BEARING
2474218A00
€ 2.00
10
0211206123
ref: 10
SCREW
0211206123
€ 1.50
11
2535024B00
ref: 11
STOPPER,GEAR SHIFT CAM
2535024B00
€ 8.00
12
2535513E10
ref: 12
SPRING,SHIFT CAM STOPPER
2535513E10
€ 4.00
13
2535612C00
ref: 13
SUPPORT,CAM STOPPER ARM
2535612C00
€ 9.50
14
0821106181
ref: 14
WASHER
0821106181
€ 2.00
15
2538010F00
ref: 15
PLATE,GEAR SHIFT CAM
2538010F00
€ 67.50
16
0713006453
ref: 16
BOLT
0713006453
€ 2.50
17
2531238B01
ref: 17
HOLDER,NEUTRAL SWITCH
2531238B01
€ 21.00
18
2551010F00
ref: 18
SHAFT,GEAR SHIFT
€ 85.00
19
2551213E11
ref: 19
PLATE,GEAR SHIFT CAM DRIVE
2551213E11
€ 18.00
20
0918114167
ref: 20
SHIM(14X22X1)
0918114167
€ 3.50
21
0928314006
ref: 21
SEAL,OIL(14X22X6)
0928314006
€ 6.50
22
0944017009
ref: 22
SPRING
0944017009
€ 1.50
23
0944420001
ref: 23
SPRING
0944420001
€ 5.00
24
0833131146
ref: 24
CIRCLIP
0833131146
€ 2.00
25
2567101000
ref: 25
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
26
2560010F01
ref: 26
LEVER ASSEMBLY,GEAR SHIFTING
2560010F01
€ 99.00
27
2565210F00
ref: 27
RUBBER
2565210F00
€ 8.00
28
2552647000
ref: 28
COVER,DUST
2552647000
€ 3.50
28A
4315101400
ref: 28A
RUBBER,BRAKE PEDAL
4315101400
€ 4.00
29
0916010127
ref: 29
WASHER (10.5X24X2.3)
0916010127
€ 2.00
30
2561710F00
ref: 30
SPSCER,GEAR SHIFT LEVER
2561710F00
€ 14.50
31
0910310300
ref: 31
BOLT(10X40)
0910310300
€ 5.50
32
2552019C02
ref: 32
ARM,GEAR SHIFT LINK
2552019C02
€ 53.50
33
2552647000
ref: 33
COVER,DUST
2552647000
€ 3.50
34
2552517E11
ref: 34
ROD,GEAR SHIFT LINK
2552517E11
€ 19.00
35
0914006011
ref: 35
NUT
0914006011
€ 1.50
36
0831000063
ref: 36
NUT 6MM
0831000063
€ 2.00
37
0150006253
ref: 37
BOLT
0150006253
€ 2.50
38
3772010F20
ref: 38
BASE ASSY,GEAR SHIFT TERMINAL
3772010F20
€ 66.50
39
0928035006
ref: 39
O RING(D:2.4,ID:35.5)
0928035006
€ 4.00
40
0211275163
ref: 40
SCREW
0211275163
€ 2.50
41
0920904021
ref: 41
PIN
0920904021
€ 9.00
42
0944002003
ref: 42
SPRING
0944002003
€ 12.00
43
6839238B00
ref: 43
LABEL,GEAR SHIFT
€ 2.50
