HANDLEBAR

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

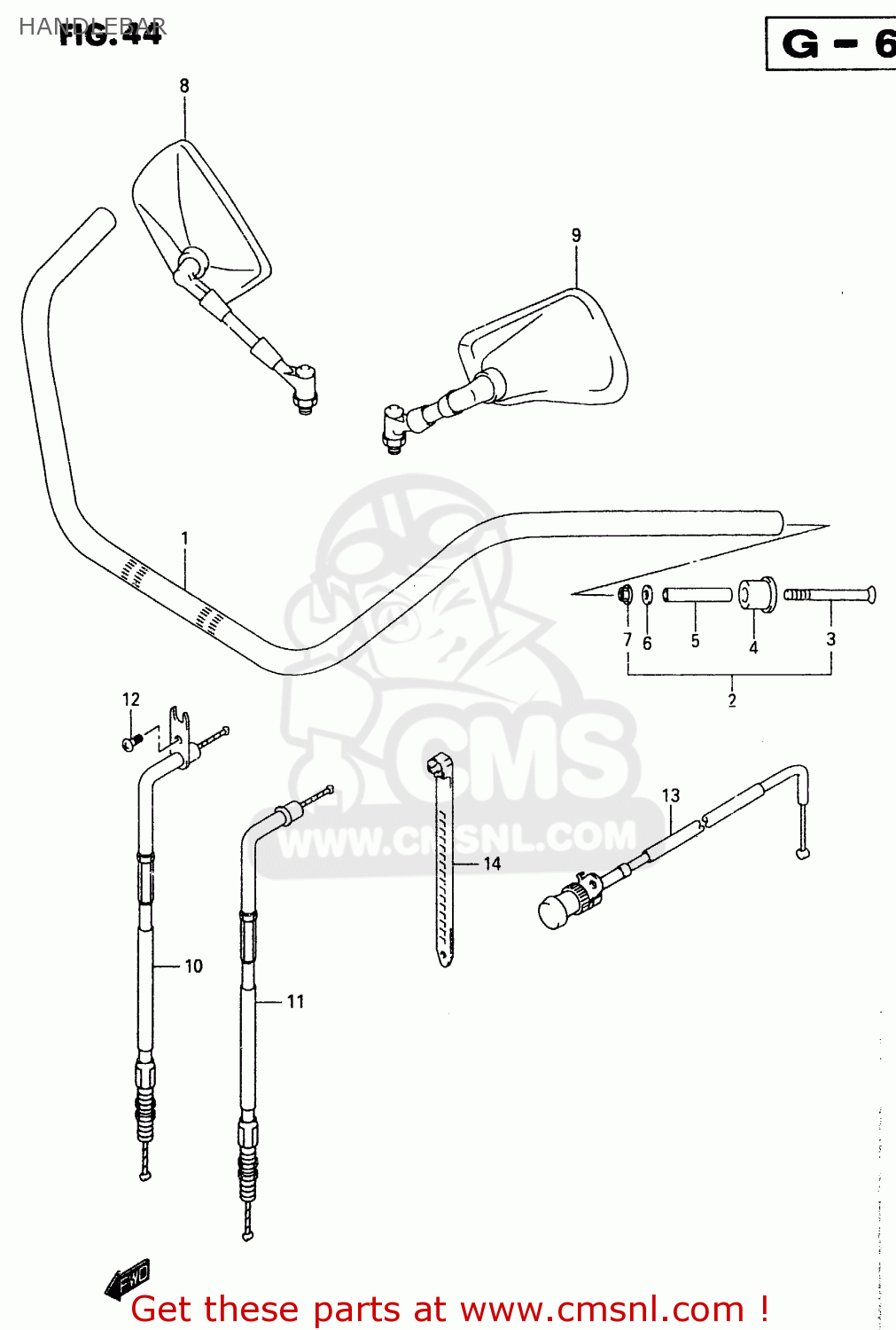

Handlebar diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

5611110F00
ref: 1

HANDLEBAR

€ 331.00

5620010860
ref: 2

BALANCER SET,HANDLEBAR

€ 77.00

0912706017
ref: 3

SCREW(6X127)

€ 2.50

5627226D01
ref: 4

EXPANDER,HANDLE BALANCER NO.2

€ 5.00

5627609D00
ref: 5

SPACER,EXPANDER

€ 6.00

0916006013
ref: 6

WASHER (6.5X18X2)

€ 10.50

0915906024
ref: 7

NUT

€ 2.00

5650003F10
ref: 8

MIRROR ASSEMBLY,REAR VIEW

€ 393.50

5660003F10
ref: 9

MIRROR ASSEMBLY,REAR VIEW

€ 305.50

5830010F00
ref: 10

CABLE ASSEMBLY,THROTTLE NO

€ 51.00

5830010F10
ref: 11

CABLE ASSEMBLY,THROTTLE NO

€ 51.00

0214205087
ref: 12

SCREW

€ 2.00

5840010F00
ref: 13

CABLE ASSY,STARTER

€ 35.00

0940714403
ref: 14

CLAMP(L:125)

€ 2.50
