OIL COOLER

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

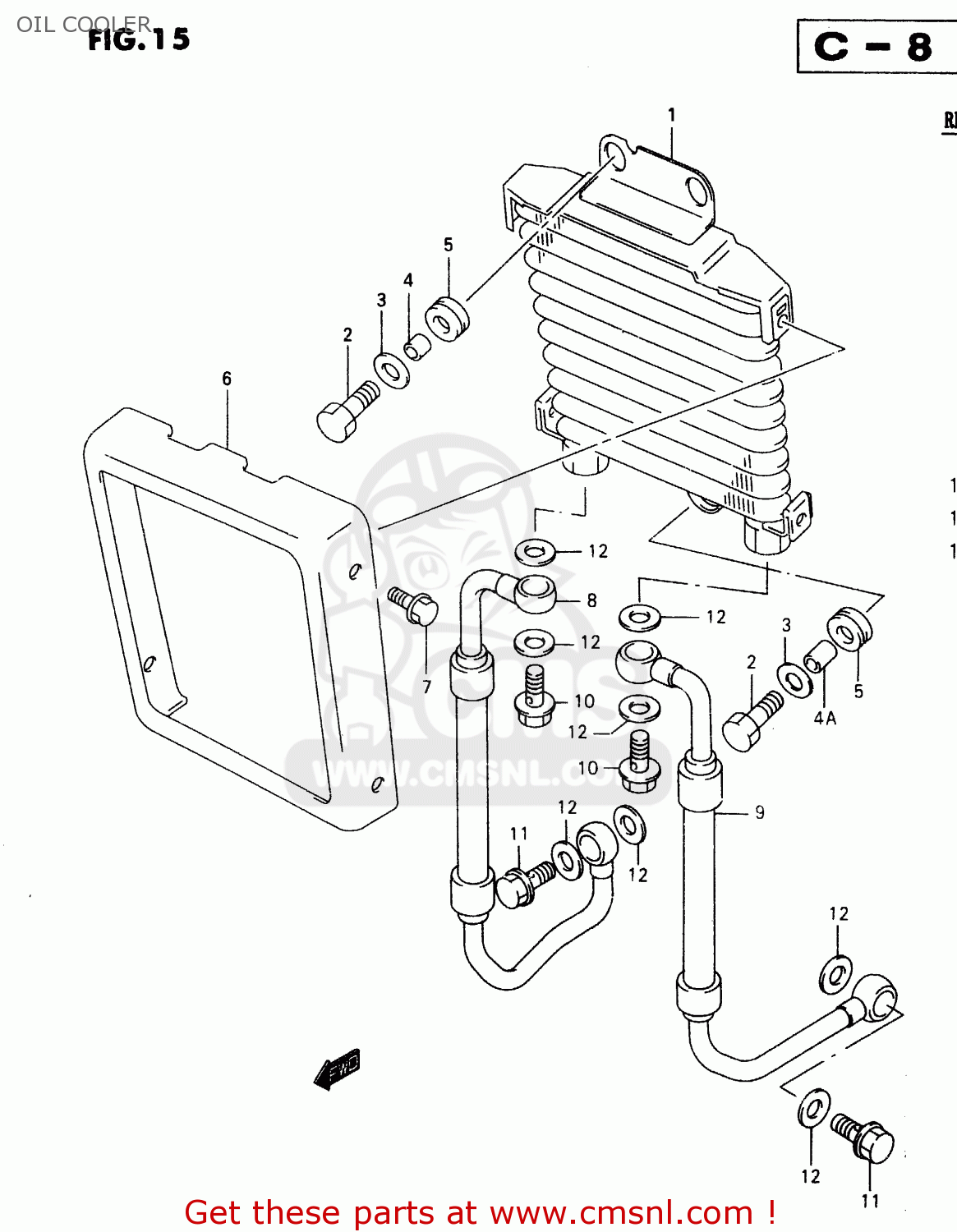

Oil cooler diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1660010F00
ref: 1

COOLER ASSY,OIL

€ 873.00

0150006203
ref: 2

BOLT

€ 2.00

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

0918006310
ref: 4

SPACER(6.5X10X10)

€ 2.00

0918007004
ref: 4A

SPACER(6.5X10.5X12)

€ 2.50

0932010015
ref: 5

CUSHION

€ 2.50

1662110F00
ref: 6

COVER,OIL COOLER

€ 134.00

0913906027
ref: 7

SCREW(6X12)

€ 3.00

1646010F00
ref: 8

HOSE,OIL COOLER,RIGHT

€ 186.50

1647010F00
ref: 9

HOSE,OIL COOLER,LEFT

€ 186.50

0936014009
ref: 10

BOLT UNION

€ 9.50

0936014012
ref: 11

BOLT UNION

€ 10.00

0916814011
ref: 12

GASKET(14X20X1.5) (NAS)

€ 2.00
