HEADLAMP (E24)

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

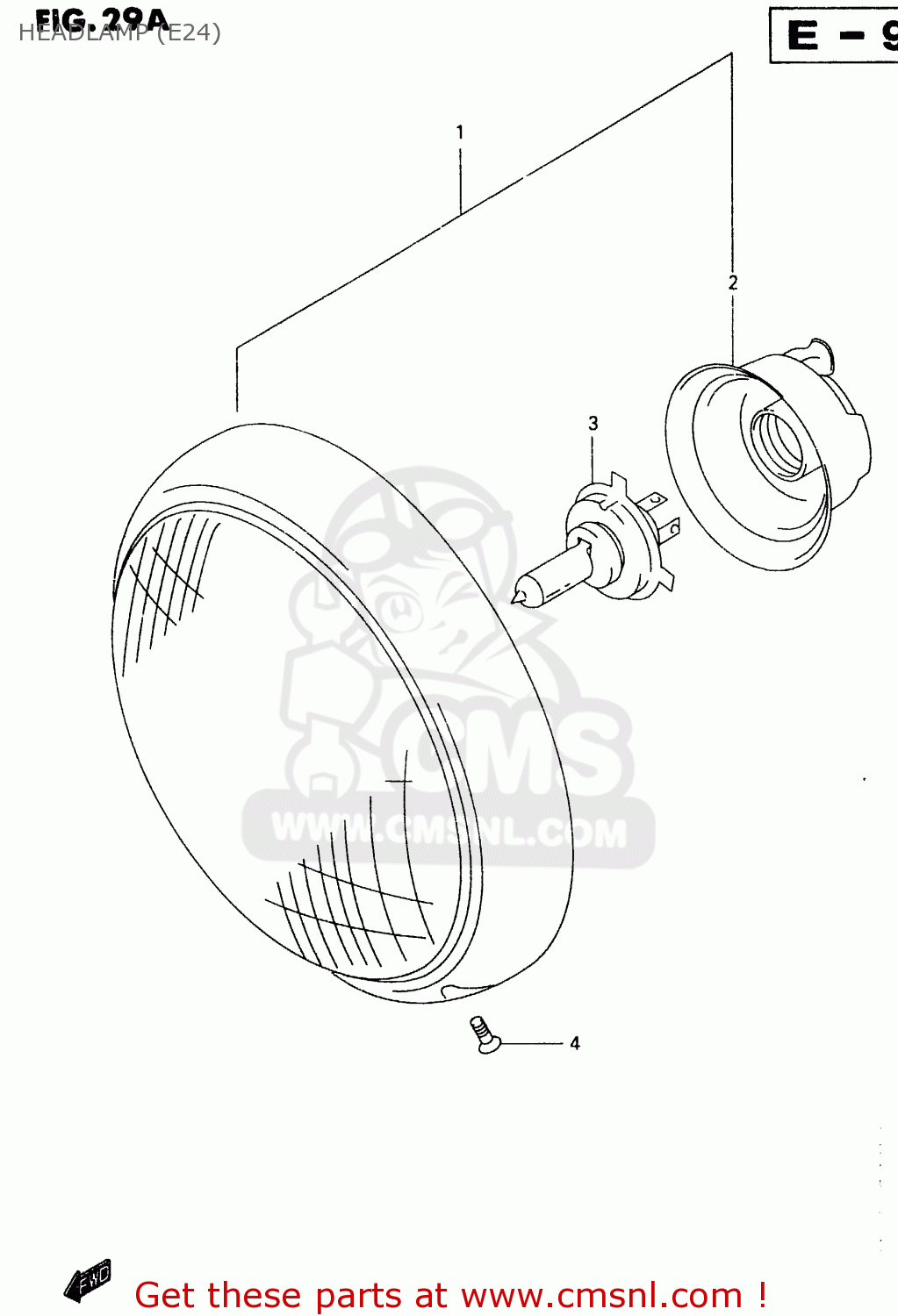

Headlamp (e24) diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

HEADLAMP (E24) VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

HEADLAMP (E24) VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3510010F30999
ref: 1

HEADLAMP ASSY

€ 265.00

2

3517321A01
ref: 2

COVER,SOCKET

€ 14.50

3

0947112060
ref: 3

BULB(12V60/55W,H4)

€ 8.00

4

0912605003
ref: 4

SCREW(5X12)

€ 2.50
