FUEL CATCH TANK

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

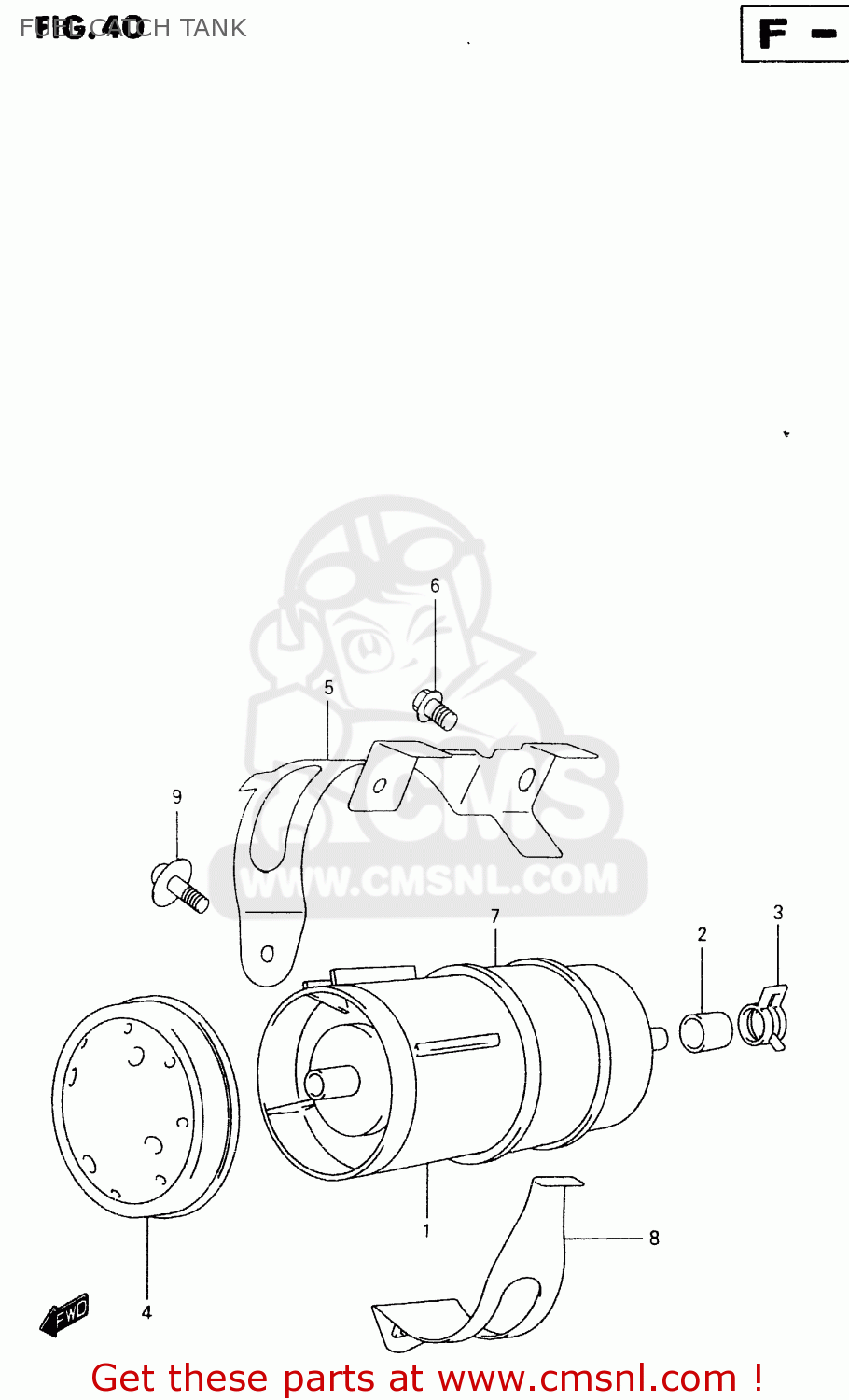

Fuel catch tank diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FUEL CATCH TANK VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

FUEL CATCH TANK VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4439010F00
ref: 1

TANK,FUEL CATCH

€ 70.00

2

0925107003
ref: 2

CAP,OD:11.5

€ 2.00

3

0940111407
ref: 3

CLIP

€ 2.50

4

1721148E00
ref: 4

CAP,CANISTER

€ 14.50

5

4488110F00
ref: 5

BRACKET,CATCH TANK

€ 13.50

6

0911606168
ref: 6

BOLT(6X16)

€ 2.50

7

4488326E00
ref: 7

CUSHION,CANISTER

€ 9.00

8

4488210F00
ref: 8

HOLDER,CATCH TANK

€ 7.00

9

0214206123
ref: 9

SCREW 6X12

€ 2.00
