MAGNETO

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

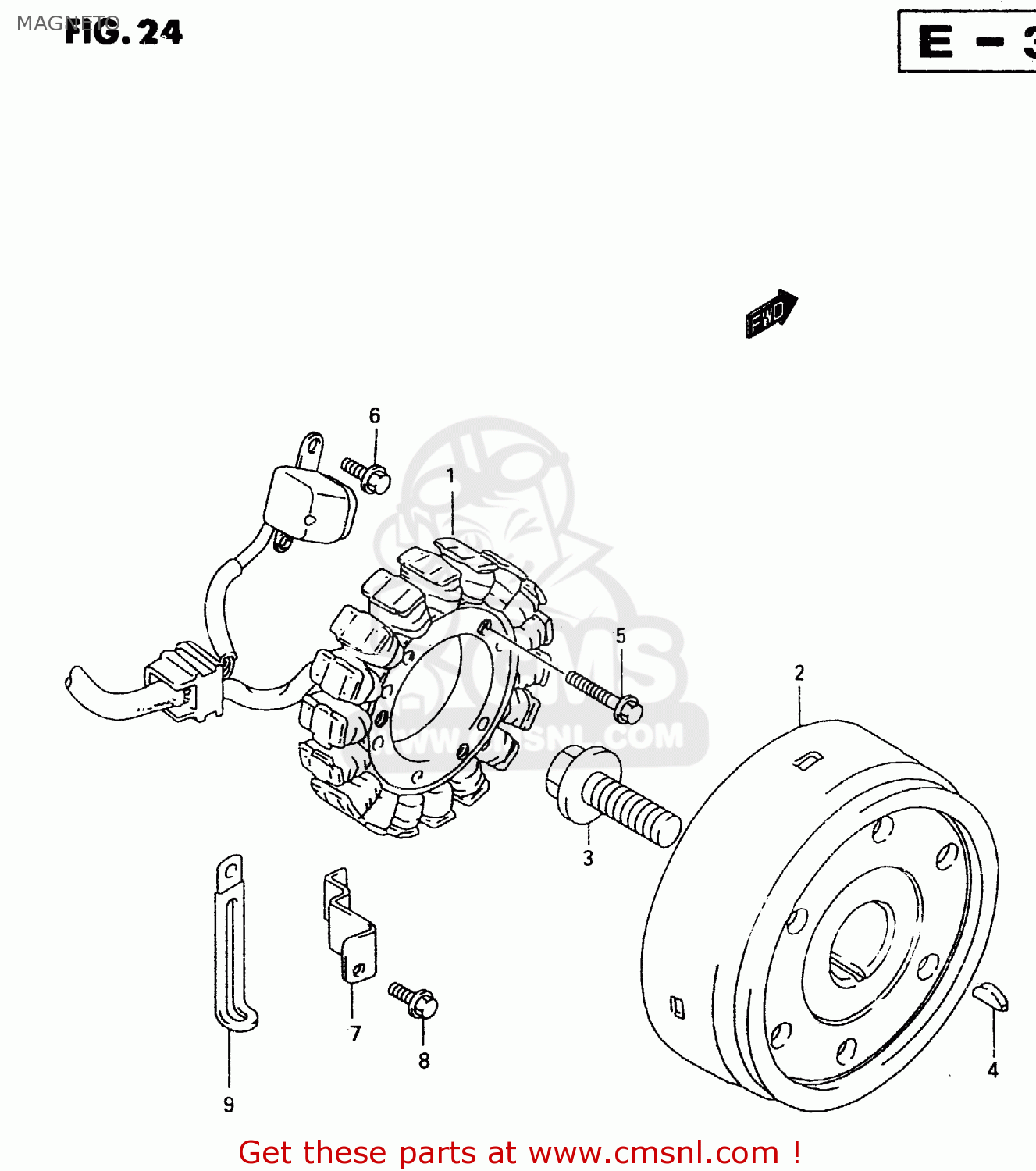

Magneto diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

MAGNETO VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

MAGNETO VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

3210110F00
ref: 1

STATOR ASSEMBLY,MAGNETO

€ 666.00

2

3210210F00
ref: 2

ROTOR ASSY

€ 556.00

3

0910314001
ref: 3

BOLT(14X43)

€ 7.00

4

0942005007
ref: 4

KEY

€ 3.00

5

0154706303
ref: 5

BOLT,G/S SWITC

€ 3.00

6

0154705103
ref: 6

BOLT

€ 2.50

7

3237145C00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8

0154705103
ref: 8

BOLT

€ 2.50

9-1

0940406429
ref: 9-1

CLAMP(L:45)

€ 2.50

9-2

0940408206
ref: 9-2

CLAMP(L:65 T:0.8)

€ 3.50
