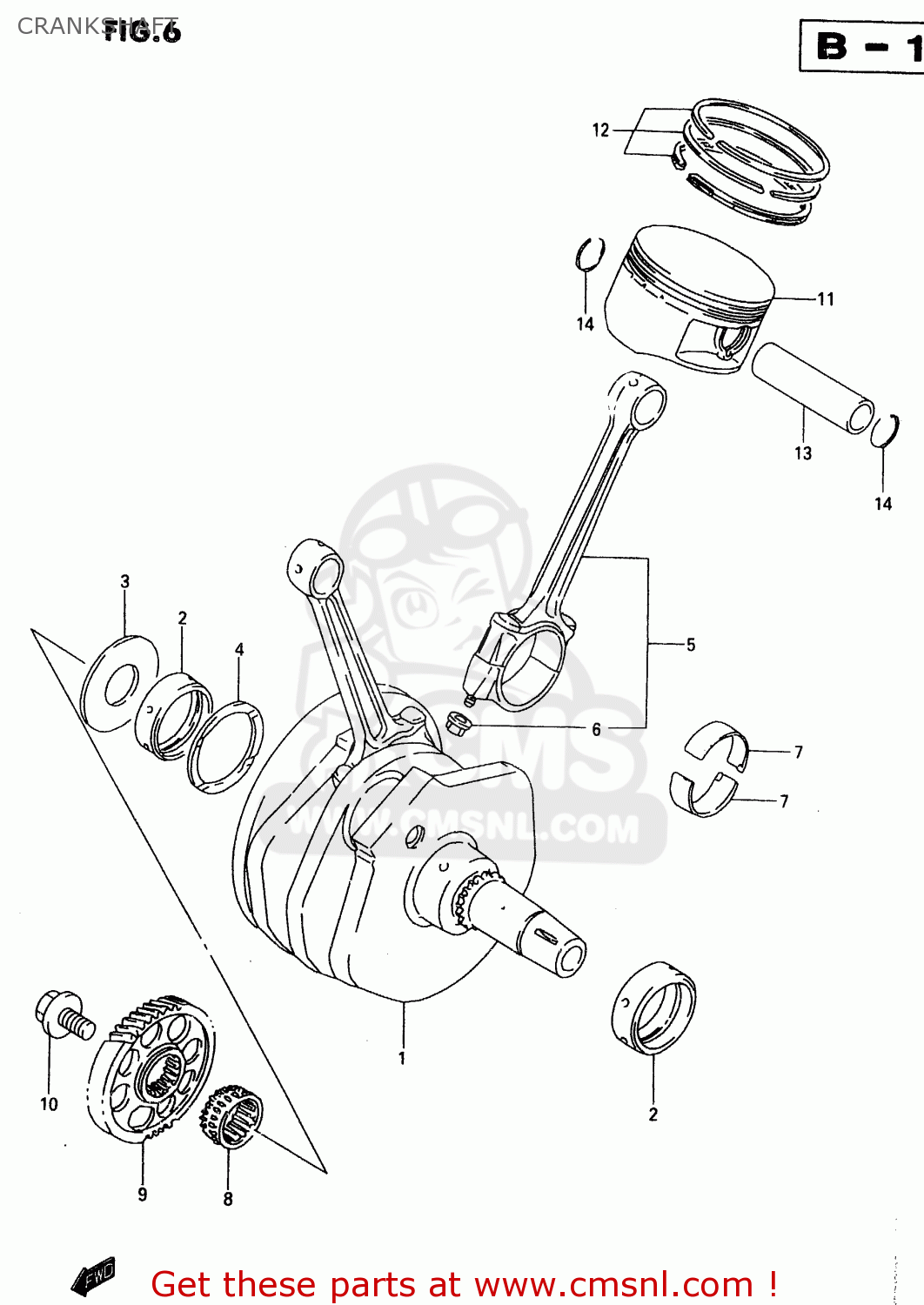

CRANKSHAFT

ref

part #

description

quantity

1

1200010810
ref: 1

CRANKSHAFT SET

€ 1,077.00

2

1222938B00
ref: 2
INCLUDED. CRANKCASE

METAL,CRANKSHAFT

€ 27.50

3

1265238B00
ref: 3

WASHER,CRANK THRUST

€ 54.50

4-1

1222838B000A0
ref: 4-1

PLATE,CRANK THRUST

€ 18.50

4-2

1222838B000B0
ref: 4-2

PLATE,CRANK THRUST

€ 15.50

4-3

1222838B000C0
ref: 4-3

PLATE,CRANK THRUST

€ 16.00

4-4

1222838B000D0
ref: 4-4

PLATE,CRANK THRUST

€ 17.50

4-5

1222838B000E0
ref: 4-5

PLATE,CRANK THRUST

€ 15.00

4-6

1222838B000F0
ref: 4-6

PLATE,CRANK THRUST

€ 24.50

4-7

1222838B000G0
ref: 4-7

PLATE,CRANK THRUST

€ 15.50

4-8

1222838B000H0
ref: 4-8

PLATE,CRANK THRUST

€ 15.50

4-9

1222838B000I0
ref: 4-9

PLATE,CRANK THRUST

€ 15.50

4-10

1222838B000J0
ref: 4-10

PLATE,CRANK THRUST

€ 15.50

5

1216010F00
ref: 5

CONNECTING ROD ASSY

€ 181.50

6

0915909001
ref: 6

NUT

€ 4.50

7-1

1216438B010A0
ref: 7-1

METAL,CRANK PIN

€ 13.00

7-2

1216438B010B0
ref: 7-2

METAL,CRANK PIN

€ 13.00

7-3

1216438B010C0
ref: 7-3

METAL,CRANK PIN

€ 13.00

7-4

1216438B010D0
ref: 7-4

METAL,CRANK PIN

€ 13.00

7-5

1216438B010E0
ref: 7-5

METAL,CRANK PIN

€ 8.50

8

1273138B00
ref: 8

SPROCKET,CAM CHAIN DRIVE,R

€ 58.50

9

2111110F00
ref: 9

GEAR,PRIMARY DRIVE

€ 134.50

10

0910314010
ref: 10

BOLT(14X28)

€ 15.00

11

1211110F000F0
ref: 11

PISTON

€ 110.00

12

1214010F00
ref: 12

RING SET,PISTON

€ 65.50

13

1215114A01
ref: 13

PIN,PISTON

€ 18.00

14

0938123003
ref: 14

CIRCLIP

€ 1.50
