REAR SWINGING ARM

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

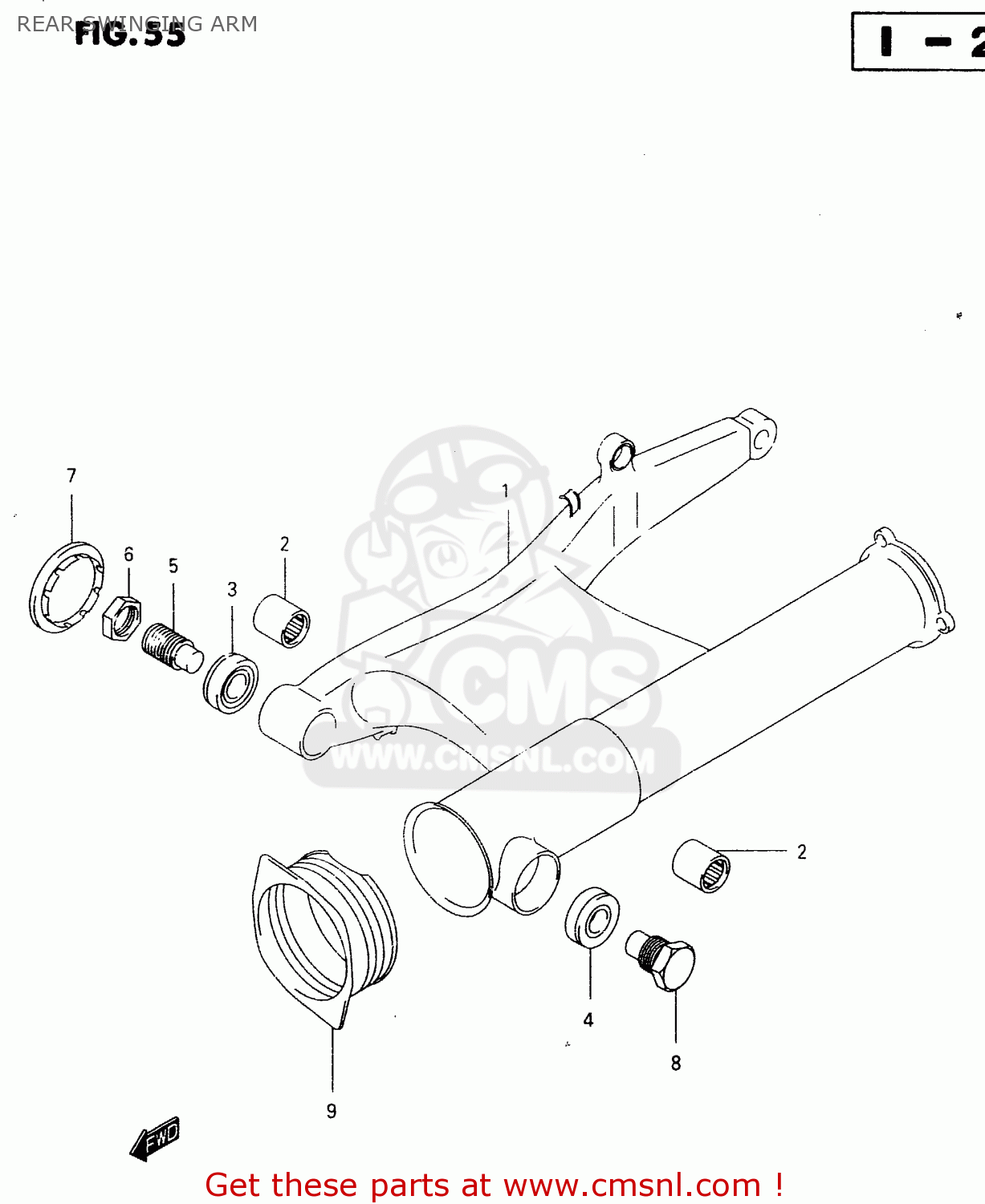

Rear swinging arm diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR SWINGING ARM VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

REAR SWINGING ARM VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

6110010F00019
ref: 1

SWING ARM COMP,REAR

€ 932.50

2

0926320071
ref: 2

BEARING(20X27X23.5)

€ 21.50

3

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

4

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

5

6121324A00
ref: 5

BOLT,RR SWGARM PIVOT

€ 17.00

6

0914024007
ref: 6

NUT

€ 4.50

7

6122205A01
ref: 7

CAP,RR SWINGING ARM PIVOT NUT

€ 8.00

8

6121310F00
ref: 8

BOLT,SWINGINGARM PIVOT,L

€ 16.00

9

6137210F00
ref: 9

BOOT,PROPELLER SHAFT

€ 18.50
