STAND

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

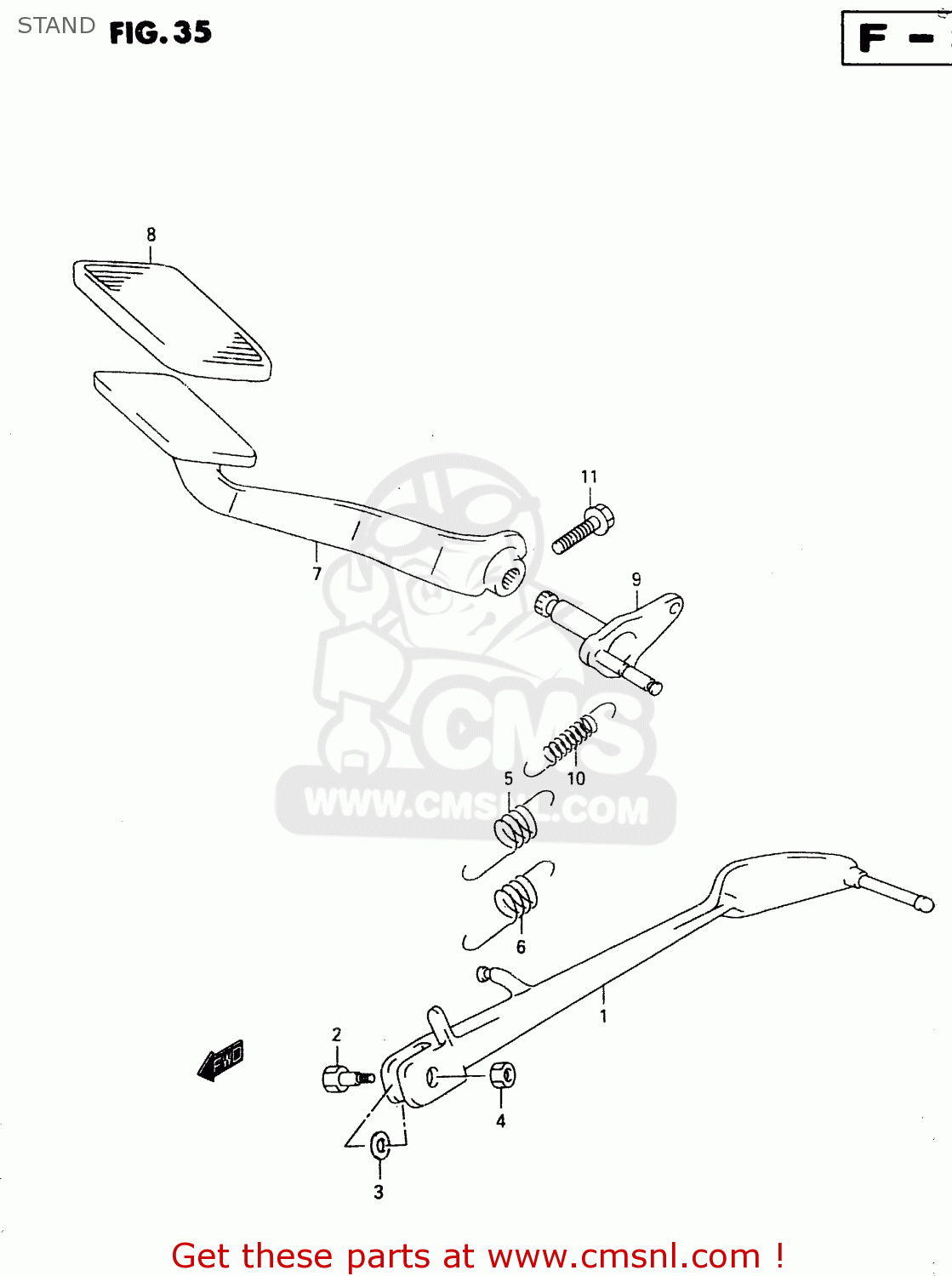

Stand diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

STAND VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

STAND VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

4231010F00
ref: 1

STAND COMP,PROP

€ 222.00

2

0911110027
ref: 2

BOLT(10X34)

€ 3.50

3

0822112224
ref: 3

SHIM

€ 2.00

4

0831921103
ref: 4

NUT

€ 2.00

5

0944314066
ref: 5

SPRING

€ 5.00

6

0944319012
ref: 6

SPRING

€ 5.50

7

4311010F00
ref: 7

PEDAL,BRAKE

€ 111.00

8

4315110F00
ref: 8

RUBBER,BRAKE PEDAL

€ 6.50

9

4312010F00
ref: 9

ARM,BRAKE ROD

€ 73.00

10

0944311030
ref: 10

SPRING

€ 4.00

11

0712006253
ref: 11

BOLT,OIL PAN

€ 2.50
