CARBURETOR

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

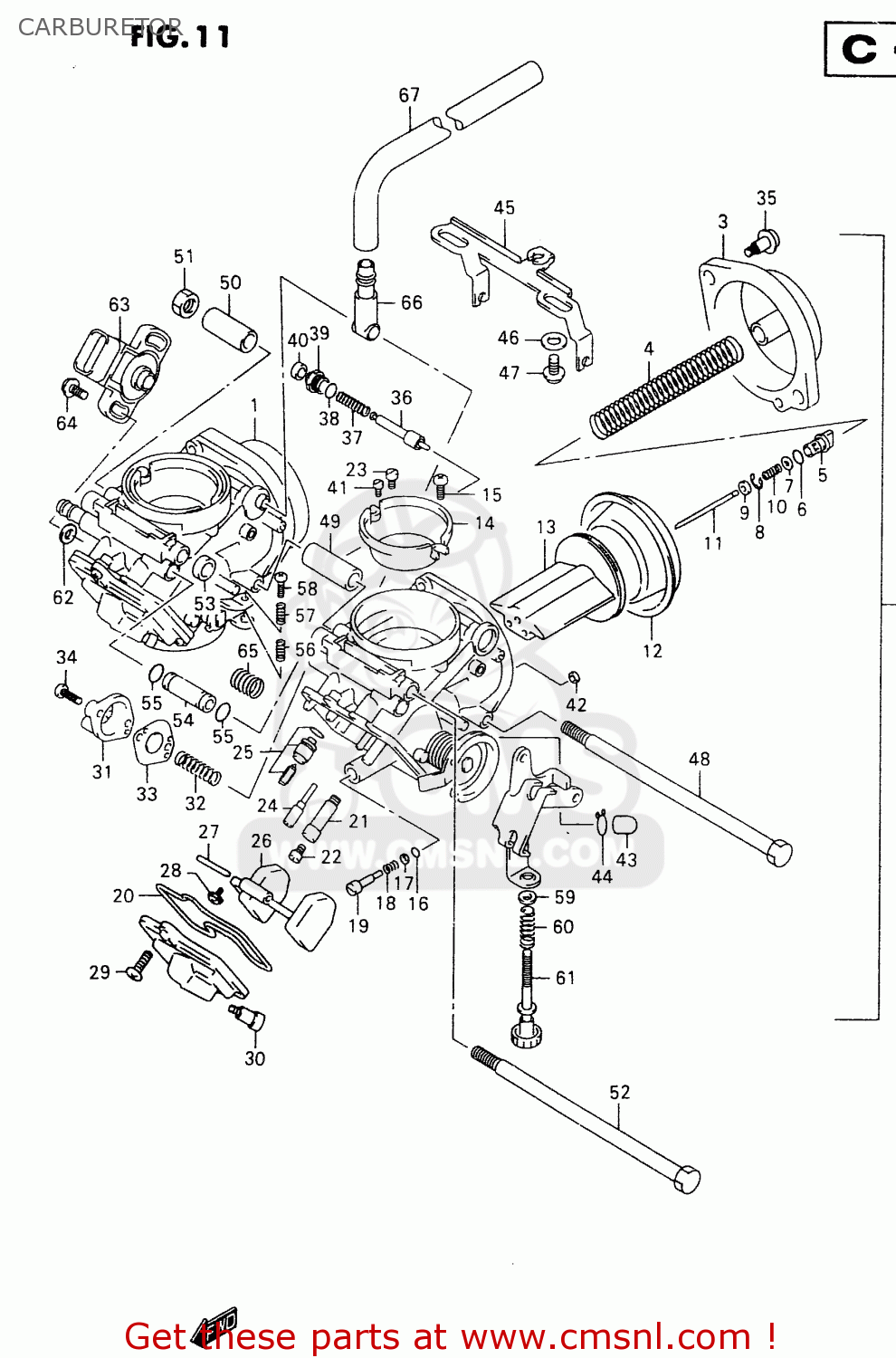

Carburetor diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CARBURETOR VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CARBURETOR VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CARBURETOR VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1320110F00
ref: 1-1
CARBURETOR,FR.
€ 770.00
1-2
1320110F20
ref: 1-2
E17, E22, E24
CARBURETOR ASSY, RH
€ 651.50
1-3
1320110F30
ref: 1-3
E18
CARBURETOR ASSY, RH
€ 0.00
2-1
1320210F00
ref: 2-1
CARBURETOR,REA
€ 729.00
2-2
1320210F20
ref: 2-2
E17, E22, E24
CARBURETOR ASSY, LH
€ 620.50
2-3
1320210F30
ref: 2-3
E18
CARBURETOR ASSY, LH
€ 0.00
3
1350234E00
ref: 3
COVER ASSY,DIAPHRAGM
1350234E00
€ 43.50
4
1357310F00
ref: 4
SPRING
€ 10.50
5
1341833E00
ref: 5
HOLDER
1341833E00
€ 4.50
6
0928005004
ref: 6
O RING(D:1.9,ID:4.8)
0928005004
€ 2.00
7
1338244030
ref: 7
WASHER
1338244030
€ 3.50
8
1339417E60
ref: 8
E RING,MULTIPLE JET NOZZLE
1339417E60
€ 1.50
9
1338733E00
ref: 9
RING
€ 5.00
10
1348133E00
ref: 10
SPRING
1348133E00
€ 3.00
11-1
1338310F00
ref: 11-1
RH
NEEDLE,JET
1338310F00
€ 19.50
11-2
1338310F10
ref: 11-2
LH
NEEDLE,JET
1338310F10
€ 19.50
12
1350717C01
ref: 12
DIAPHRAGM
1350717C01
€ 24.50
13
1350134E00
ref: 13
VALVE,PISTON
1350134E00
€ 87.50
14
1366734E00
ref: 14
FUNNEL
1366734E00
€ 34.50
15
0211204107
ref: 15
SCREW
0211204107
€ 2.00
16
1329529900
ref: 16
O RING,PILOT AIR SCREW
1329529900
€ 4.00
17
1329129900
ref: 17
WASHER
1329129900
€ 2.00
18
1326848700
ref: 18
SPRING,THROTTLE SCREW
1326848700
€ 3.50
19
1327933E00
ref: 19
ADJUSTER
1327933E00
€ 9.50
20
1325833E00
ref: 20
O RING
1325833E00
€ 9.50
21
1338533E00
ref: 21
HOLDER,JET
1338533E00
€ 25.00
22-1
0949122014
ref: 22-1
RH
JET,MAIN(112.5)
0949122014
€ 16.50
22-2
0949122013
ref: 22-2
LH
JET,MAIN(110)
0949122013
€ 7.50
23
0949155004
ref: 23
JET,MAIN(55)
0949155004
€ 11.50
24
0949232010
ref: 24
JET,PILOT(32.5)
0949232010
€ 11.50
25
1337033E80
ref: 25
VALVE ASSY,NEEDLE(NI)
1337033E80
€ 61.00
26
1325033E00
ref: 26
FLOAT ASSY
1325033E00
€ 41.00
27
1325492910
ref: 27
PIN,FLOAT
1325492910
€ 3.00
28
1360205A10
ref: 28
SCREW
1360205A10
€ 4.00
29
1360314A00
ref: 29
SCREW
1360314A00
€ 3.50
30
1324713A00
ref: 30
SCREW,DRAIN
1324713A00
€ 5.50
31
1350210F00
ref: 31
COVER ASSY
1350210F00
€ 26.00
32
1327110F00
ref: 32
SPRING
1327110F00
€ 4.50
33
1348010F00
ref: 33
DIAPHRAGM ASSY
1348010F00
€ 15.50
34
1360104148
ref: 34
SCREW
1360104148
€ 2.50
35
1324733E00
ref: 35
SCREW
1324733E00
€ 3.00
36
1341105300
ref: 36
PLUNGER
1341105300
€ 23.50
37
1341726D00
ref: 37
SPRING
1341726D00
€ 5.50
38
1327847090
ref: 38
O RING
1327847090
€ 2.00
39
1341844080
ref: 39
GUIDE SCREW,PLUNGER
1341844080
€ 8.00
40
1368231210
ref: 40
CAP,STARTER VALVE
1368231210
€ 5.00
41
0949338004
ref: 41
JET,PILOT AIR(1.9)
€ 15.50
42
1329533010
ref: 42
O RING
1329533010
€ 4.50
43
1327484000
ref: 43
CAP
1327484000
€ 5.50
44
0940106101
ref: 44
CLIP
0940106101
€ 2.50
45
1341310F00
ref: 45
LEVER
€ 23.50
46
1355733E00
ref: 46
PACKING
1355733E00
€ 3.00
47
0214204083
ref: 47
SCREW
0214204083
€ 1.50
48
1361210F10
ref: 48
BOLT
€ 8.50
49
1368510F20
ref: 49
PIPE
€ 8.50
50
1368510F30
ref: 50
PIPE
€ 7.50
51
1332403010
ref: 51
NUT
€ 3.00
52
1361210F00
ref: 52
BOLT
€ 8.50
53
1368510F00
ref: 53
PIPE
€ 5.00
54
1368510F10
ref: 54
PIPE
€ 10.00
55
1324687400
ref: 55
O RING
1324687400
€ 5.50
56
1326896110
ref: 56
SPRING,THROTTLE SCREW
€ 4.50
57
1327144B00
ref: 57
SPRING
1327144B00
€ 4.00
58
1326744B00
ref: 58
SCREW
1326744B00
€ 3.50
59
1339278B00
ref: 59
WASHER
€ 1.50
60
1327133C00
ref: 60
SPRING
1327133C00
€ 4.50
61
1326710F00
ref: 61
SCREW,ADJUST
€ 15.50
62
1366331010
ref: 62
GASKET,THRO VALVE INSPECTION (NAS)
1366331010
€ 3.50
63
1358002F00
ref: 63
SENSOR ASSY,THROTTLE
1358002F00
€ 118.50
64
1360255A00
ref: 64
SCREW, SENSOR
1360255A00
€ 3.00
65
1357306C10
ref: 65
SPRING
1357306C10
€ 7.00
66
1368310F00
ref: 66
HOSE
1368310F00
€ 14.00
67
1368321E10
ref: 67
HOSE
€ 27.50
