STARTER CLUTCH

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

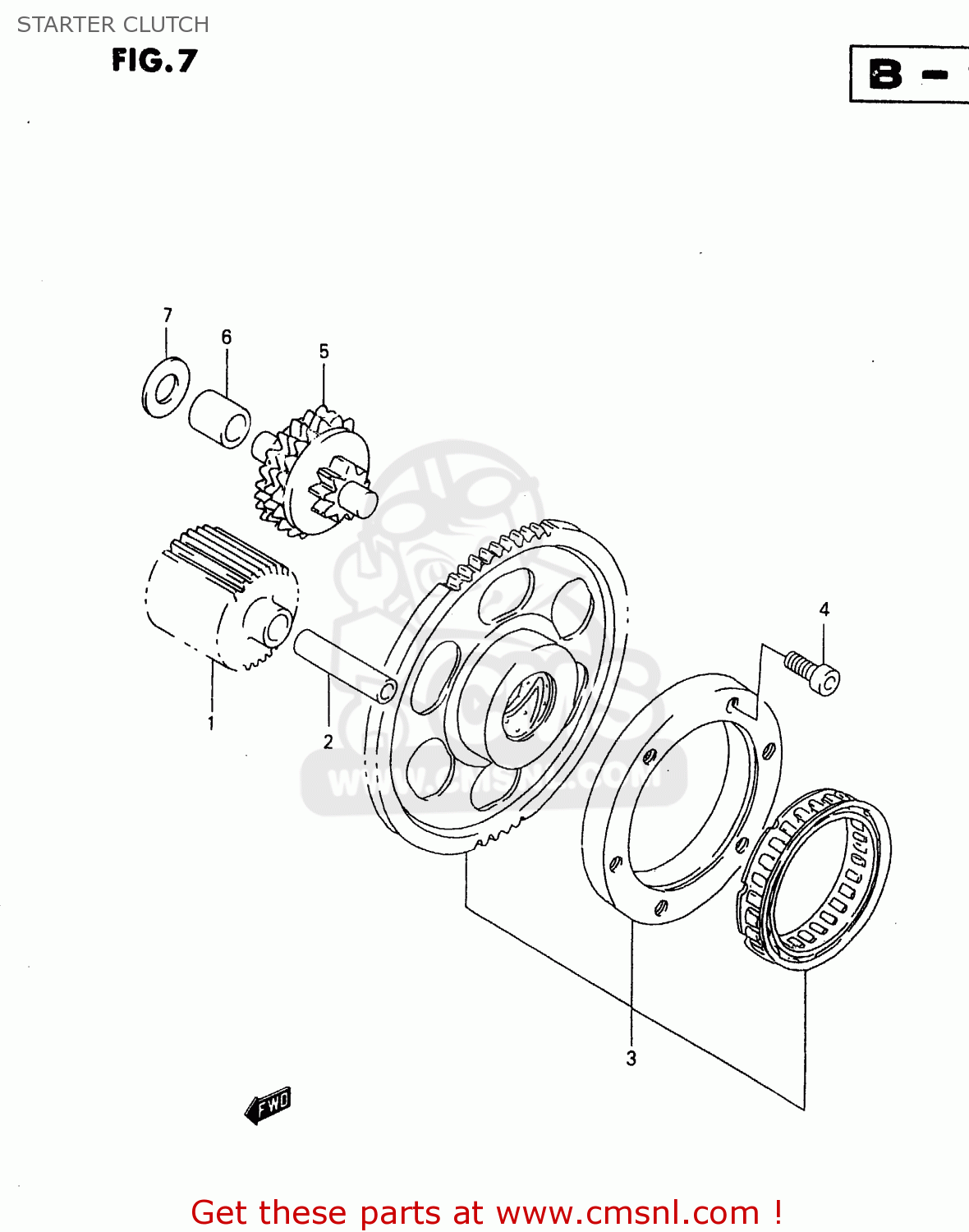

Starter clutch diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

STARTER CLUTCH VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

STARTER CLUTCH VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1

1261110F00
ref: 1
NT:10/40

GEAR,STARTER IDLE NO.1

€ 56.00

2

0920611015
ref: 2

PIN(7X11X55)

€ 9.00

3

1260010860
ref: 3

CLUTCH SET,STARTER

€ 374.00

4

0713008163
ref: 4

BOLT

€ 3.00

5

1260024B00
ref: 5

LIMITER ASSEMBLY,STARTER IDLER GEAR

€ 223.00

6

1261831D01
ref: 6

BUSH,LIMITER GEAR SHAFT

€ 17.50

7

0918110195
ref: 7

SHIM(10X20X1)

€ 2.00
