CYLINDER HEAD (FRONT)

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

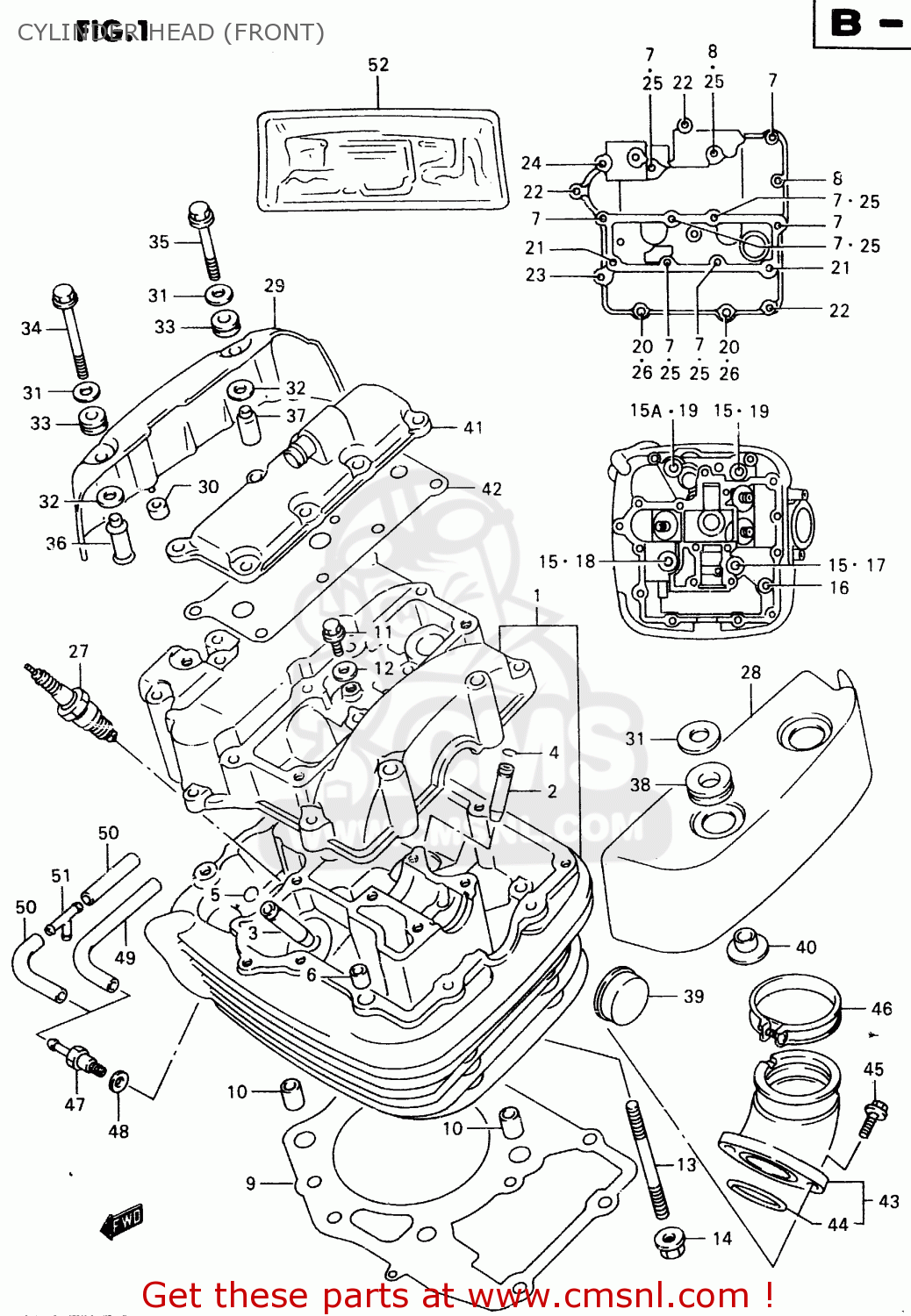

Cylinder head (front) diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER HEAD (FRONT) VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CYLINDER HEAD (FRONT) VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
CYLINDER HEAD (FRONT) VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
1110110F00
ref: 1-1
HEAD ASSY,CYLINDER FR
€ 1,198.00
1-2
1110110F10
ref: 1-2
E18
HEAD ASSY,CYLINDER FR
€ 1,170.50
2
1111538B70
ref: 2
GUIDE,INTAKE VALVE
1111538B70
€ 18.50
3
1111545740
ref: 3
GUIDE,INTAKE VALVE
1111545740
€ 25.50
4
0938110004
ref: 4
RING,SNAP
0938110004
€ 1.50
5
0938110003
ref: 5
RING,SNAP
0938110003
€ 2.50
6
0920608001
ref: 6
PIN(6.2X8X11)
0920608001
€ 2.00
7
0910306064
ref: 7
BOLT(6X60)
0910306064
€ 2.50
8
0910306102
ref: 8
BOLT(6X55)
0910306102
€ 2.50
9
1114110F00
ref: 9
GASKET,CYLINDER HEAD FR (NAS)
1114110F00
€ 52.00
10
0421113189
ref: 10
PIN
0421113189
€ 2.50
11
0712006123
ref: 11
BOLT
€ 3.50
12
0916806018
ref: 12
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
13
0910808142
ref: 13
BOLT,STUD
0910808142
€ 3.00
14
0831610087
ref: 14
NUT
0831610087
€ 2.50
15
0916010060
ref: 15
WASHER (10.5X22X2.3)
0916010060
€ 2.50
15A
0916810017
ref: 15A
GASKET(10.5X22X2) (NAS)
0916810017
€ 3.50
16
0910308099
ref: 16
BOLT(8X70)
0910308099
€ 6.00
17
0910310178
ref: 17
BOLT(10X180)
0910310178
€ 12.50
18
0910310179
ref: 18
BOLT(10X190)
0910310179
€ 12.50
19
0910310180
ref: 19
BOLT(10X200)
0910310180
€ 10.50
20
0910308213
ref: 20
BOLT(8X268)
0910308213
€ 22.50
21
0155006203
ref: 21
BOLT
0155006203
€ 2.50
22
0155006303
ref: 22
BOLT
0155006303
€ 2.50
23
0155006353
ref: 23
BOLT
0155006353
€ 2.50
24
0155006703
ref: 24
BOLT
€ 2.50
25
0916806023
ref: 25
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
26
0916008130
ref: 26
WASHER(8.5X24X1.6)
0916008130
€ 2.00
27-1
0948200354
ref: 27-1
PLUG,SPARK(DPR7EA-9)
0948200354
€ 4.00
27-2
0948200355111
ref: 27-2
SPARK PLUG X22EPR-U9
€ 4.00
27-3
0948200334
ref: 27-3
OPT E2, E4, E17, E18
PLUG,SPARK(DPR8EA-9)
€ 4.00
27-4
0948200335111
ref: 27-4
OPT E2, E4, E17, E18
SPARK PLUG X24EPR-U9
€ 4.00
27-5
0948200330
ref: 27-5
OPT E2, E4, E17, E18
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
27-6
0948200331111
ref: 27-6
OPT E2, E4, E17, E18
SPARK PLUG X27EPR-U9
0948200331111
€ 4.00
28
1117110F00
ref: 28
CAP,CYLINDER HEAD COVER FR,L
1117110F00
€ 116.50
29
1117210F00
ref: 29
CAP,CYLINDER HEAD COVER FR,R
1117210F00
€ 169.50
30
1127324B00
ref: 30
CUSHION,R CAP
1127324B00
€ 4.00
31
0916006084
ref: 31
WASHER(6.5X18X1.6)
0916006084
€ 2.00
32
0916009016
ref: 32
WASHER(9.5X20X1)
0916009016
€ 2.00
33
0932009016
ref: 33
CUSHION
0932009016
€ 2.50
34
0154706707
ref: 34
BOLT
0154706707
€ 2.50
35
0154706507
ref: 35
BOLT
0154706507
€ 2.50
36
1117910F00
ref: 36
SPACER,CYL HEAD COVER CAP NO.1
1117910F00
€ 14.50
37
1117910F10
ref: 37
SPACER,CYL HEAD COVER CAP NO.2
1117910F10
€ 8.00
38
0932013015
ref: 38
CUSHION
0932013015
€ 3.00
39
0924130008
ref: 39
PLUG(OD:30)
0924130008
€ 7.00
40
0930108007
ref: 40
BUSH
0930108007
€ 4.00
41
1118038B10
ref: 41
COVER,BREATHER
€ 32.00
42
1117738B01H17
ref: 42
GASKET,BREATHER COVER (NAS)
1117738B01H17
€ 19.00
43
1310110F00
ref: 43
PIPE ASSY,INTAKE FR
1310110F00
€ 96.00
44
0928041007
ref: 44
O RING(D:1.9,ID:40.7)
0928041007
€ 10.50
45
0911906092
ref: 45
BOLT(6X16)
0911906092
€ 2.00
46
0940252208
ref: 46
CLAMP
0940252208
€ 5.50
47
0936206002
ref: 47
BOLT UNION
0936206002
€ 11.00
48
0916806018
ref: 48
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
49
0935535755600
ref: 49
EXCEPT E18 L:600->15
HOSE(3.5X7.5X600)
0935535755600
€ 10.00
50
0935535755600
ref: 50
E18 L:600->70
HOSE(3.5X7.5X600)
0935535755600
€ 10.00
51
0936704007
ref: 51
E18
3 WAY
0936704007
€ 3.50
52
1140010850
ref: 52
GASKET SET (NAS)
€ 214.00
