CYLINDER

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

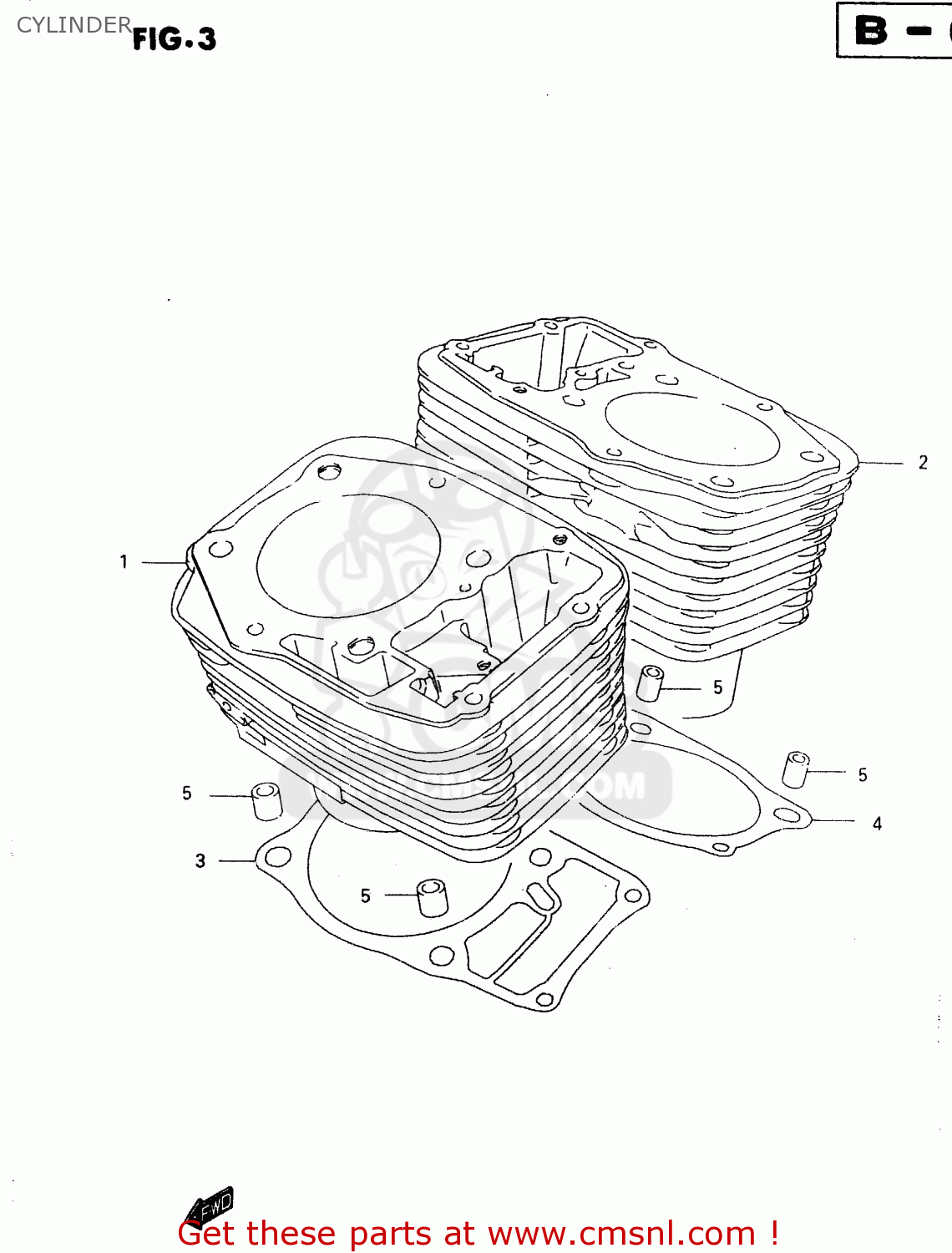

Cylinder diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

CYLINDER VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

1121110F000F0
ref: 1-1

CYLINDER,FR

€ 689.50

1-2

1121110F100F0
ref: 1-2
E18

CYLINDER,FR

€ 672.00

2-1

1122110F000F0
ref: 2-1

CYLINDER,RR

€ 689.50

2-2

1122110F100F0
ref: 2-2
E18

CYLINDER,RR

€ 736.00

3

1124110F00
ref: 3

GASKET,CYLINDER FR (NAS)

€ 14.00

4

1124210F00
ref: 4

GASKET,CYLINDER RR (NAS)

€ 14.00

5

0421113189
ref: 5

PIN

€ 2.50
