REAR COMBINATION LAMP

VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

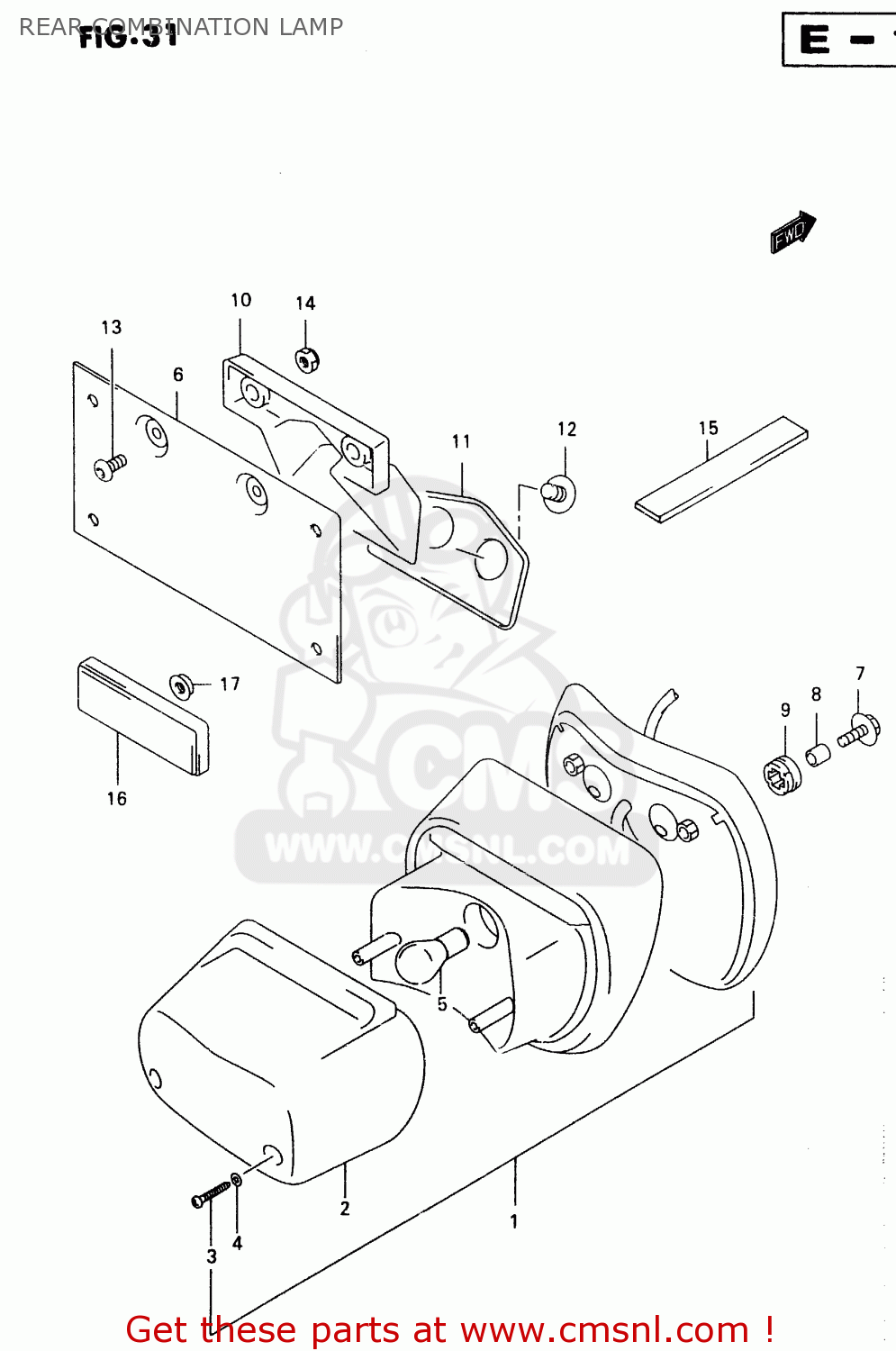

Rear combination lamp diagram VL1500 1998 (W) (E02 E04 E17 E18 E22 E24 E25 E34)

prices are in EUR

ref

part #

description

quantity

3571010F00
ref: 1

LAMP ASSY,RR COMBINATION

€ 393.00

3571210F00
ref: 2

LENS

€ 50.00

0321104207
ref: 3

SCREW

€ 1.50

3562743010
ref: 4

GASKET (NAS)

€ 2.00

0947112083
ref: 5

BULB(12V21/5W)

€ 6.00

6-1

6346110F20
ref: 6-1

HOLDER,LICENSE

€ 92.50

6-2

6346110F10
ref: 6-2
E4, E34

HOLDER,LICENSE

€ 79.00

0911606143
ref: 7

BOLT 6X20

€ 2.00

0918006310
ref: 8

SPACER(6.5X10X10)

€ 2.00

0932009010
ref: 9

CUSHION

€ 2.50

3592810F00
ref: 10

STAY,LICENSE PLATE HOLDER

€ 119.00

3592910F00
ref: 11

CUSHION,LICENSE PLATE HOLDER

€ 8.00

0911606168
ref: 12
6X16

BOLT(6X16)

€ 2.50

0913906030
ref: 13

SCREW(6X16)

€ 3.50

0831310067
ref: 14

NUT

€ 2.00

3365226E00
ref: 15

PROTECTOR(20X90)X1.0

€ 3.00

3597007F00
ref: 16

REFLECTOR ASSEMBLY,REAR

€ 20.50

0831610053
ref: 17

NUT

€ 2.50
