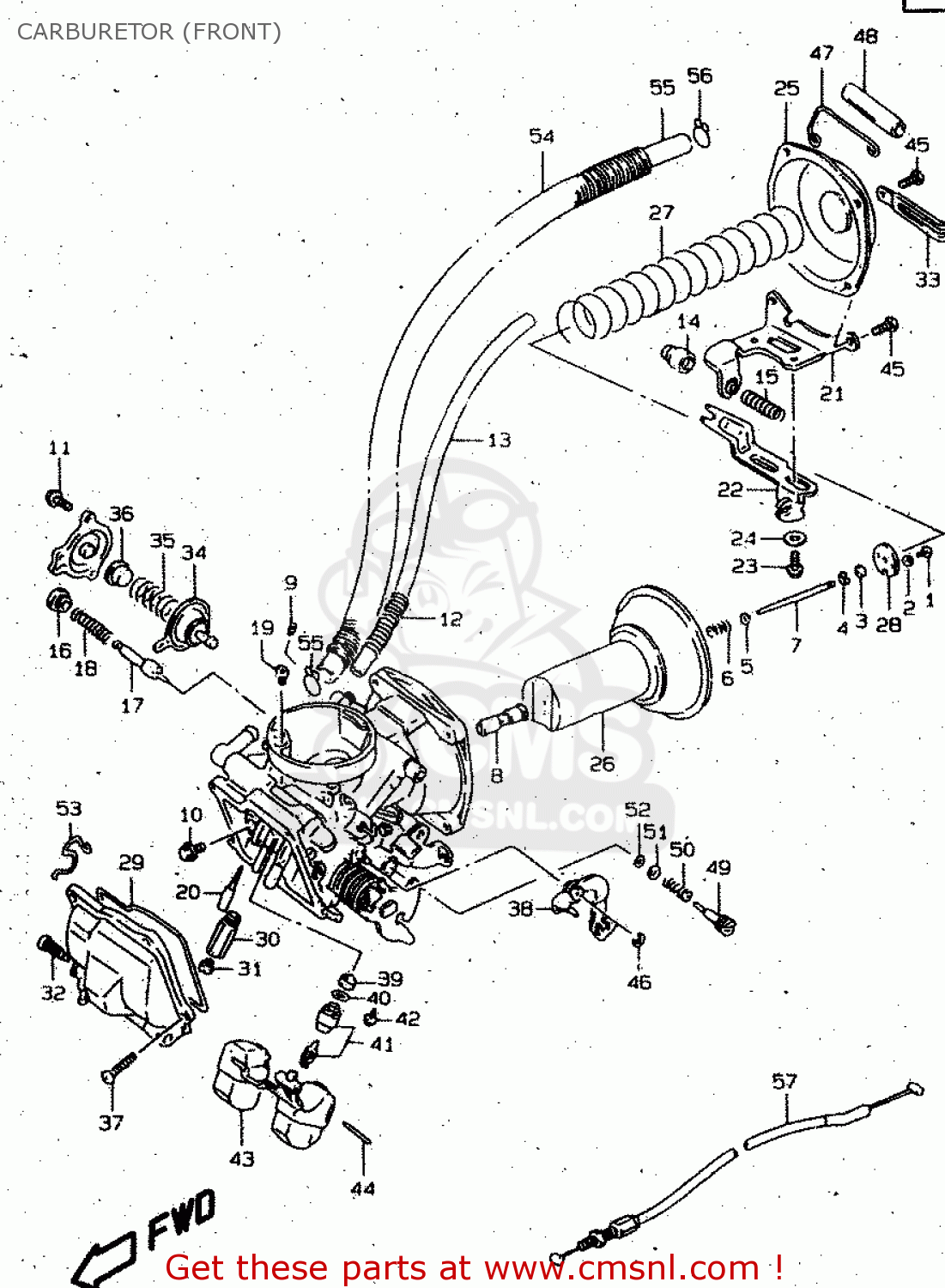

CARBURETOR (FRONT)

ref

part #

description

quantity

0

1321038BB0
ref: 0

CARBURETOR ASSY,FR

€ 777.00

0

1321038BC0
ref: 0
E17, E22

CARBURETOR ASSY,FR

€ 639.50

0

1321038B90
ref: 0
E24

CARBURETOR ASSY,FR

€ 776.50

0

1321038BD0
ref: 0
E37, P37

CARBURETOR ASSY, FRONT

€ 0.00

1

0211203063
ref: 1

SCREW

€ 2.00

2

0832121033
ref: 2

WASHER,LOCK

€ 1.50

3

1338747010
ref: 3

RING

€ 7.50

4

1339410010
ref: 4

CLIP

€ 4.50

5

1338244030
ref: 5

WASHER

€ 3.50

6

1338844030
ref: 6

SPRING

€ 6.00

7

1338338B90
ref: 7

NEEDLE,JET

€ 18.00

8

0949400501
ref: 8

JET,NEEDLE

€ 28.50

8

0949400570
ref: 8
E24

JET,NEEDLE(O-9)

€ 26.00

9

0949328006
ref: 9
<-09493-28007

JET,PILOT AIR,1.4

€ 15.50

9

0949334002
ref: 9
E24

JET,PILOT AIR(1.7)

€ 9.50

10

1360538B00
ref: 10

SCREW

€ 7.50

11

0211204103
ref: 11

SCREW

€ 1.00

12

1368938A00
ref: 12

SPRING

€ 8.50

13

0935250823600
ref: 13
L:600->185

HOSE(5X8.2X600)

€ 13.00

14

1368104010
ref: 14

CAP

€ 3.00

15

1341737100
ref: 15

SPRING

€ 4.00

16

1341805A10
ref: 16

HOLDER,GUIDE

€ 12.00

17

1341105300
ref: 17

PLUNGER

€ 23.50

17

1341138B00
ref: 17
E24

PLUNGER

€ 23.50

18

1341743010
ref: 18

SPRING

€ 3.50

19

0949270004
ref: 19

JET,PILOT(70)

€ 9.50

19

0949255010
ref: 19
E24

JET,PILOT

€ 13.50

20

0949250018
ref: 20

JET,PILOT(50)

€ 17.50

21

1362838B00
ref: 21

BRACKET

€ 32.50

22

1342238B00
ref: 22

PLATE

€ 19.50

23

1360205A30
ref: 23

SCREW

€ 4.50

24

1333205A20
ref: 24

WASHER

€ 3.00

25

1350238A00
ref: 25

COVER,DIAPHRAGM

€ 34.00

26

1350038B20
ref: 26

DIAPHRAGM ASSY

€ 255.50

27

1350338B00
ref: 27

SPRING,DIAPHRAGM

€ 12.00

28

1338937400
ref: 28

PLATE

€ 5.50

29

1325138A00
ref: 29

O RING,FLOAT CHAMBER

€ 6.50

30

1338505A11
ref: 30

HOLDER,MAIN JET

€ 14.00

31

0949122014
ref: 31

JET,MAIN(112.5)

€ 16.50

31

0949125014
ref: 31
E24

JET,MAIN(125)

€ 11.50

32

1324713A00
ref: 32

SCREW,DRAIN

€ 5.50

33

0940406432
ref: 33
<-09404-06429

CLAMP(L:65)

€ 2.50

33

0940406413
ref: 33
E24

CLAMP

€ 2.50

34

1348005A10
ref: 34

DIAPHRAGM ASSY

€ 54.50

35

1348138B40
ref: 35

SPRING

€ 5.50

35

1348138B90
ref: 35
E24

SPRING

€ 4.00

36

1348237300
ref: 36
E24

PLATE

€ 0.00

37

1360219C00
ref: 37

SCREW

€ 3.00

37

0214204167
ref: 37

SCREW

€ 2.00

37

1360219C00
ref: 37
E24

SCREW

€ 3.00

38

1355445C20
ref: 38
<-13554-45C00

LEVER ASSY

€ 38.50

39

1337684110
ref: 39

FILTER

€ 6.50

40

1337444080
ref: 40

O-RING,NEEDLE VALVE

€ 6.00

41

1337039A00
ref: 41

VALVE ASSY,NEEDLE

€ 67.50

41

1337038B00
ref: 41
E24

VALVE ASSY,NEEDLE

€ 64.50

41

1337038E00
ref: 41
E37, P37

VALVE ASSY,NEEDLE(NI)

€ 67.50

42

1360205A10
ref: 42

SCREW

€ 4.00

43

1325038B00
ref: 43

FLOAT

€ 32.00

44

1325420010
ref: 44

PIN,FLOAT

€ 3.00

45

0211205127
ref: 45

SCREW

€ 2.50

46

1341538300
ref: 46

E RING

€ 2.00

47

1367138A00
ref: 47

CLIP

€ 10.50

48

0935260103600
ref: 48
L:600->50

HOSE(6X10X600)

€ 18.00

49

1327947070
ref: 49

SCREW,PILOT

€ 11.50

49

1327947070
ref: 49
E17, E22, E24

SCREW,PILOT

€ 11.50

50

1326847070
ref: 50

SPRING

€ 5.00

51

1329129900
ref: 51

WASHER

€ 2.00

52

1329529900
ref: 52

O RING,PILOT AIR SCREW

€ 4.00

53

1369224A00
ref: 53

CLAMP

€ 5.00

54

1368438B00
ref: 54

HOSE

€ 21.50

55

0935465113600
ref: 55
L:600->550

HOSE(6.5X11.5X600)

€ 26.00

56

0940111403
ref: 56
<-09401-11402

CLIP

€ 3.00

57

1364138B02
ref: 57

CABLE,IDLE SYNCRO

€ 17.50
