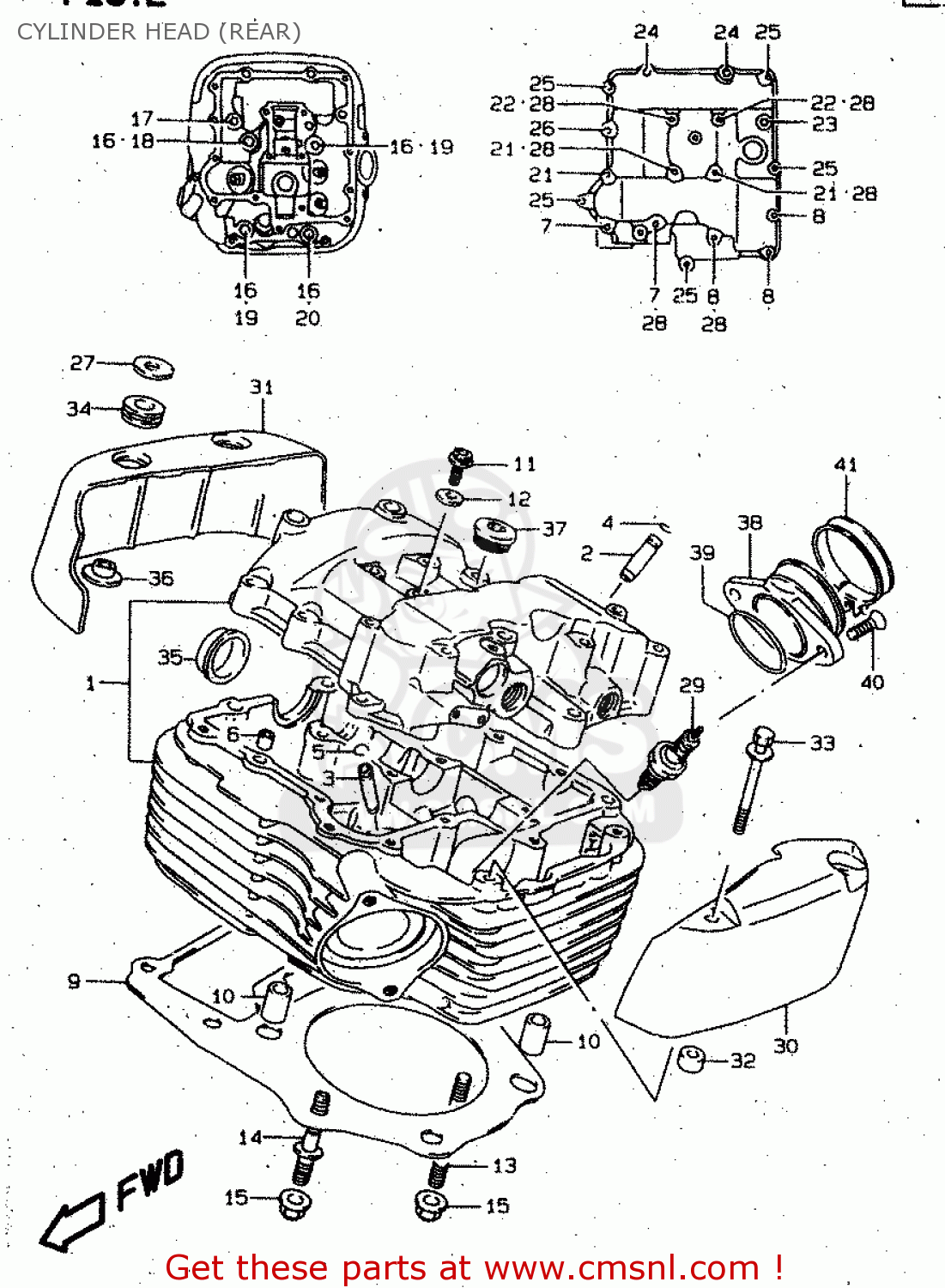

CYLINDER HEAD (REAR)

ref

part #

description

quantity

1

1110338B20
ref: 1
MODEL T/V/W

HEAD ASSEMBLY,CYLINDER,REAR

€ 834.50

1

1110338B50
ref: 1
MODEL X

HEAD ASSEMBLY,CYLINDER,REAR

€ 1,043.00

2

1111538B70
ref: 2

GUIDE,INTAKE VALVE

€ 18.50

3

1111545740
ref: 3

GUIDE,INTAKE VALVE

€ 25.50

4

0938110004
ref: 4

RING,SNAP

€ 1.50

5

0938110003
ref: 5

RING,SNAP

€ 2.50

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

0910306064
ref: 7

BOLT(6X60)

€ 2.50

8

0910306102
ref: 8

BOLT(6X55)

€ 2.50

9

1114238B00
ref: 9

GASKET,CYLINDER HEAD RR (NAS)

€ 54.50

10

0421113189
ref: 10

PIN

€ 2.50

11

0712006127
ref: 11
~E.NO.153688

BOLT

€ 3.00

11

0712006123
ref: 11
E.NO.153689~

BOLT

€ 3.50

12

0916806018
ref: 12

GASKET(6.2X13X1.2) (NAS)

€ 2.00

13

0910808142
ref: 13

BOLT,STUD

€ 3.00

14

0910808205
ref: 14

BOLT,STUD

€ 10.50

15

0831610087
ref: 15

NUT

€ 2.50

16

0916010060
ref: 16

WASHER (10.5X22X2.3)

€ 2.50

17

0910308181
ref: 17

BOLT(8X57)

€ 5.00

18

0910310178
ref: 18

BOLT(10X180)

€ 12.50

19

0910310179
ref: 19

BOLT(10X190)

€ 12.50

20

0910310181
ref: 20

BOLT(10X215)

€ 17.50

21

0910306101
ref: 21

BOLT(6X50)

€ 2.00

22

0910306112
ref: 22

BOLT(6X45)

€ 2.00

23

0910308086
ref: 23

BOLT(8X130)

€ 4.50

24

0910308213
ref: 24

BOLT(8X268)

€ 22.50

25

0155006307
ref: 25
~E.NO.153688

BOLT

€ 2.00

25

0155006303
ref: 25
E.NO.153689~

BOLT

€ 2.50

26

0155006357
ref: 26
~E.NO.153688

BOLT

€ 2.50

26

0155006353
ref: 26
E.NO.153689~

BOLT

€ 2.50

27

0916008098
ref: 27
MODEL T/V

WASHER (8.2X24X1.6)

€ 2.00

27

0916008130
ref: 27
MODEL W/X

WASHER(8.5X24X1.6)

€ 2.00

28

0916806023
ref: 28

GASKET(5.8X13X1.2) (NAS)

€ 2.00

29

0948200334
ref: 29

PLUG,SPARK(DPR8EA-9)

€ 4.00

29

0948200335111
ref: 29

SPARK PLUG X24EPR-U9

€ 4.00

29

0948200352
ref: 29
MODEL T/V/W OPT

SPARK PLUG DP7EA-9

€ 4.00

29

0948200353111
ref: 29
MODEL T/V/W OPT

SPARK PLUG X22EP-U9

€ 0.00

29

0948200328
ref: 29
MODEL T/V/W OPT

SPARK PLUG DP9EA-9

€ 4.00

29

0948200329111
ref: 29
MODEL T/V/W OPT

SPARK PLUG X27EP-U9

€ 4.00

29

0948200354
ref: 29
OPT

PLUG,SPARK(DPR7EA-9)

€ 4.00

29

0948200355111
ref: 29
OPT

SPARK PLUG X22EPR-U9

€ 4.00

29

0948200330
ref: 29
OPT

PLUG,SPARK(DPR9EA-9)

€ 4.00

29

0948200331111
ref: 29
OPT

SPARK PLUG X27EPR-U9

€ 4.00

30

1117338B00
ref: 30

CAP,CYLINDER HEAD COVER RL

€ 118.00

31

1117438B00
ref: 31

CAP,CYLINDER HEAD COVER RR

€ 146.50

32

1127324B00
ref: 32

CUSHION,R CAP

€ 4.00

33

0121406607
ref: 33

BOLT

€ 3.50

34

0932013015
ref: 34

CUSHION

€ 3.00

35

0924130008
ref: 35

PLUG(OD:30)

€ 7.00

36

0930108007
ref: 36

BUSH

€ 4.00

37

0924822004
ref: 37

PLUG,22X11

€ 9.50

38

1310238B01
ref: 38

PIPE ASSY,INTAKE RR

€ 40.00

39

0928040012
ref: 39
MODEL T/V

O-RING (D:1.9 ID:40.7)

€ 10.50

39

0928041007
ref: 39
MODEL W/X

O RING(D:1.9,ID:40.7)

€ 10.50

40

0212206203
ref: 40

SCREW

€ 2.00

41

0940252501
ref: 41

CLAMP

€ 9.00

all assemblies
