WIRING HARNESS
VS1400GLP 2000 (Y)

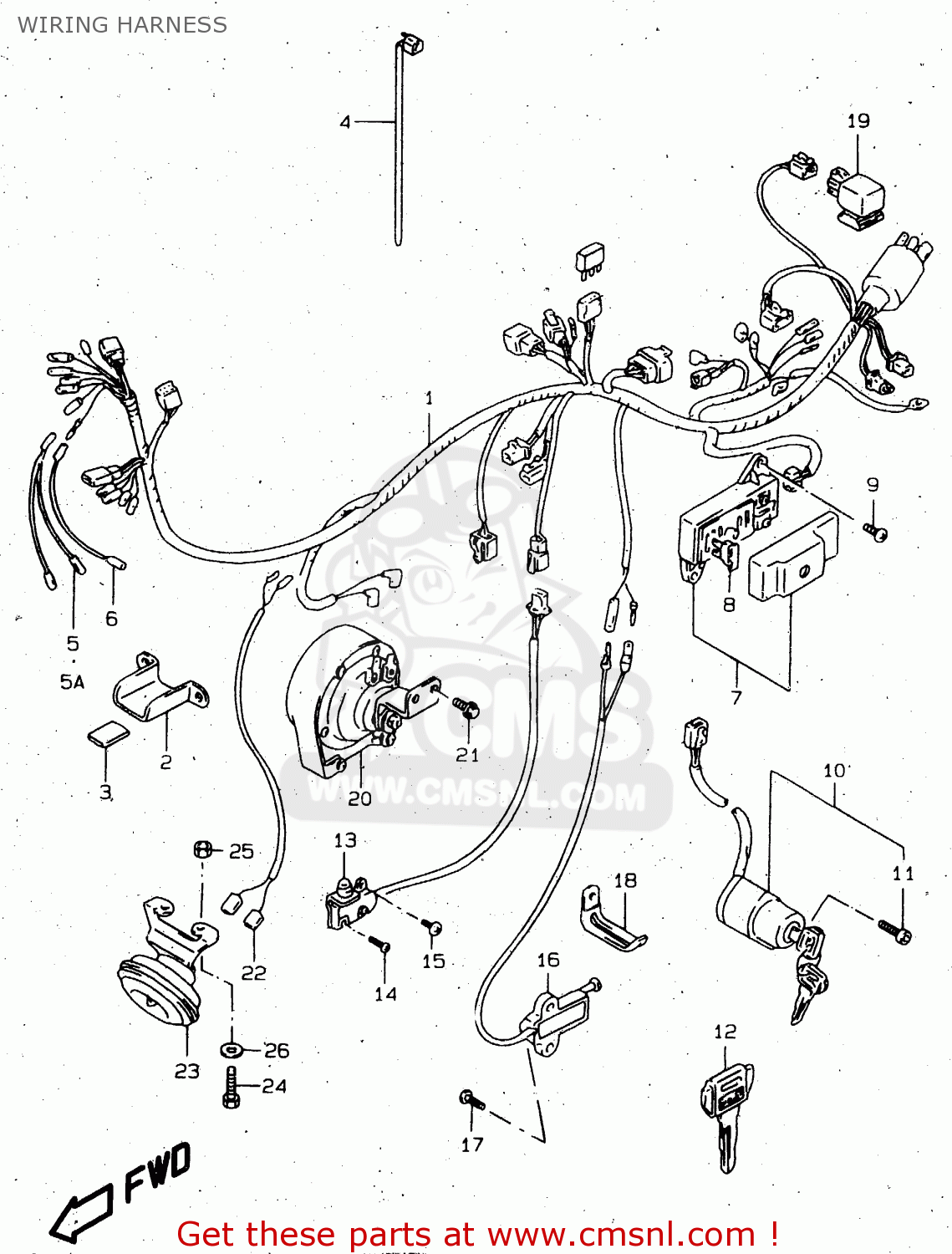

Wiring harness diagram VS1400GLP 2000 (Y)
WIRING HARNESS VS1400GLP 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
3661038BA0
ref: 1
HARNESS,WIRING
€ 323.50
1
3661038BB0
ref: 1
E4, E17, E34, E37, P
HARNESS,WIRING
€ 393.00
2
3661938B00
ref: 2
GUIDE,WIRING HARNESS
€ 6.50
3
3692038B00
ref: 3
CUSHION
€ 4.50
4
0940714403
ref: 4
CLAMP(L:125)
€ 2.50
4
0940714407
ref: 4
CLAMP(L:145)
€ 4.00
4
0940718403
ref: 4
CLAMP L:165
€ 2.50
5
3685238B10
ref: 5
WIRE,CLUTCH SW CONNECTOR
€ 5.50
5A
3685238B10
ref: 5A
WIRE,CLUTCH SW CONNECTOR
€ 5.50
6
3685339B00
ref: 6
E24
WIRE, LIGHTING SWITCH
€ 0.00
7
3674019C00
ref: 7
BOX ASSY,FUSE
€ 88.00
8
0948125103
ref: 8
<-09481-25101
FUSE(25A)
€ 2.50
8
0948110101
ref: 8
FUSE(10A)
€ 2.50
9
0214206163
ref: 9
SCREW
€ 2.50
10
3711038B03
ref: 10
<-37110-38B02
SWITCH ASSY,IGNITION
€ 71.50
11
0713005163
ref: 11
BOLT
€ 2.00
12
3714603A00
ref: 12
OPT
KEY,BLANK(TYPE:C)
€ 6.00
12
3714603A10
ref: 12
OPT
KEY,BLANK(TYPE:D)
€ 6.00
12
3714603A20
ref: 12
OPT
KEY,BLANK(TYPE:E)
€ 6.00
12
3714603A30
ref: 12
OPT
KEY,BLANK(TYPE:F)
€ 6.00
13
3774038B00
ref: 13
SWITCH ASSY,STOP LAMP
€ 79.00
14
0211204163
ref: 14
SCREW 4X16
€ 1.00
15
0214204063
ref: 15
SCREW
€ 1.50
16
3784039A22
ref: 16
SWITCH ASSY,SIDE STAND
€ 87.50
17
0211276203
ref: 17
SCREW
€ 2.50
18
0940406432
ref: 18
<-09404-06206, <-094
CLAMP(L:65)
€ 2.50
19
3874024X50
ref: 19
RELAY ASSY
€ 37.50
20
3850038B01
ref: 20
HORN ASSY
€ 112.50
21
0155006123
ref: 21
BOLT
€ 2.50
22
3859538B10
ref: 22
E4, E17, E34, E37, P
WIRE,HORN LEAD
€ 8.00
23
3850038B10
ref: 23
E4, E17, E34, E37, P
HORN ASSY
€ 83.00
24
0155006303
ref: 24
E4, E17, E34, E37, P
BOLT
€ 2.50
25
0831000063
ref: 25
E4, E17, E34, E37, P
NUT 6MM
€ 2.00
26
0832201063
ref: 26
E4, E17, E34, E37, P
WASHER
€ 2.00
