FRAME COVER (MODEL T/V)
VS1400GLP 2000 (Y)

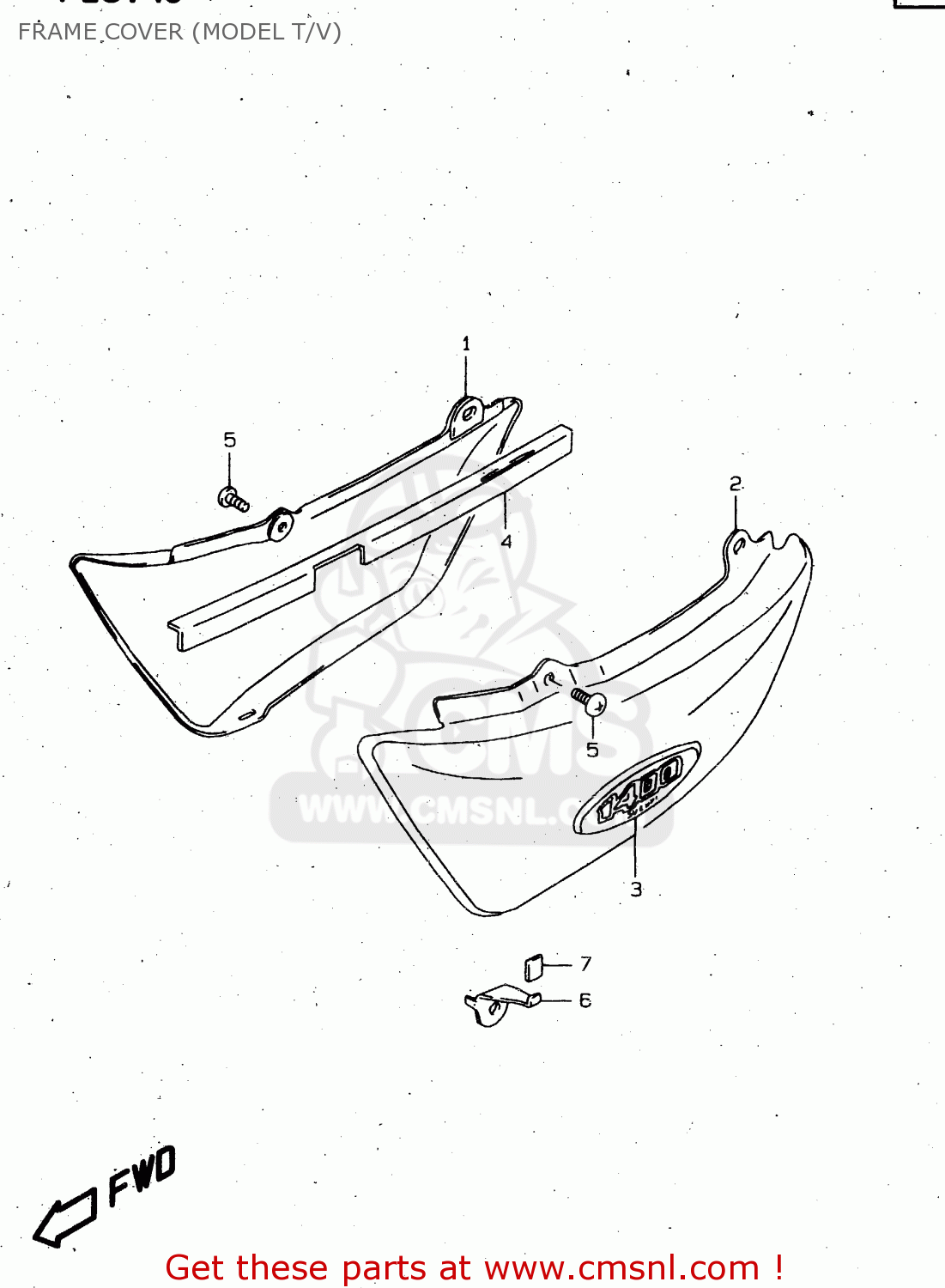

Frame cover (model t/v) diagram VS1400GLP 2000 (Y)
FRAME COVER (MODEL T/V) VS1400GLP 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
4711038B001ZV
ref: 1
MODEL T FOR E6N
COVER COMP,FRAME,RIGHT
€ 120.50
1
4711038B0033J
ref: 1
MODEL T FOR E6L, E6M
4711038B0033J
1
4711038B00Y0N
ref: 1
MODEL V FOR G2F
COVER,FRAME,R(BULE)
€ 120.50
1
4711038B0020F
ref: 1
MODEL V FOR E6L
COVER,FRAME,R(MAROON)
€ 120.50
1
4711038B0033J
ref: 1
MODEL V FOR G2E
4711038B0033J
2
4721038B001ZV
ref: 2
MODEL T FOR E6N
COVER,FRAME,L(GREEN)
€ 128.00
2
4721038B0033J
ref: 2
MODEL T FOR E6L, E6M
COVER COMP,FRAME,LEFT
€ 132.50
2
4721038B00Y0N
ref: 2
MODEL V FOR G2F
COVER,FRAME,L
€ 120.50
2
4721038B0020F
ref: 2
MODEL V FOR E6L
COVER COMP,FRAME,LEFT
€ 132.50
2
4721038B0033J
ref: 2
MODEL V FOR G2E
COVER COMP,FRAME,LEFT
€ 132.50
3
6813138B30
ref: 3
MODEL T
EMBLEM,FRAME COVER
€ 27.00
3
6813138B30Y2B
ref: 3
MODEL V FOR E6L, G2E
EMBLEM,FRAME COVER
€ 27.00
3
6813138B30Y2C
ref: 3
MODEL V FOR G2F
EMBLEM,FRAME COVER
€ 28.50
4
4716538B00
ref: 4
PROTECTOR,FRAME COVER,R
€ 8.00
5
0214206123
ref: 5
SCREW 6X12
€ 2.00
6
4717138B00
ref: 6
HOOK,FRAME COVER,L
€ 5.50
7
4717538B00
ref: 7
CUSHION,FRAME COVER HOOK
€ 2.50
