REAR SWINGING ARM

VS1400GLP 2000 (Y)

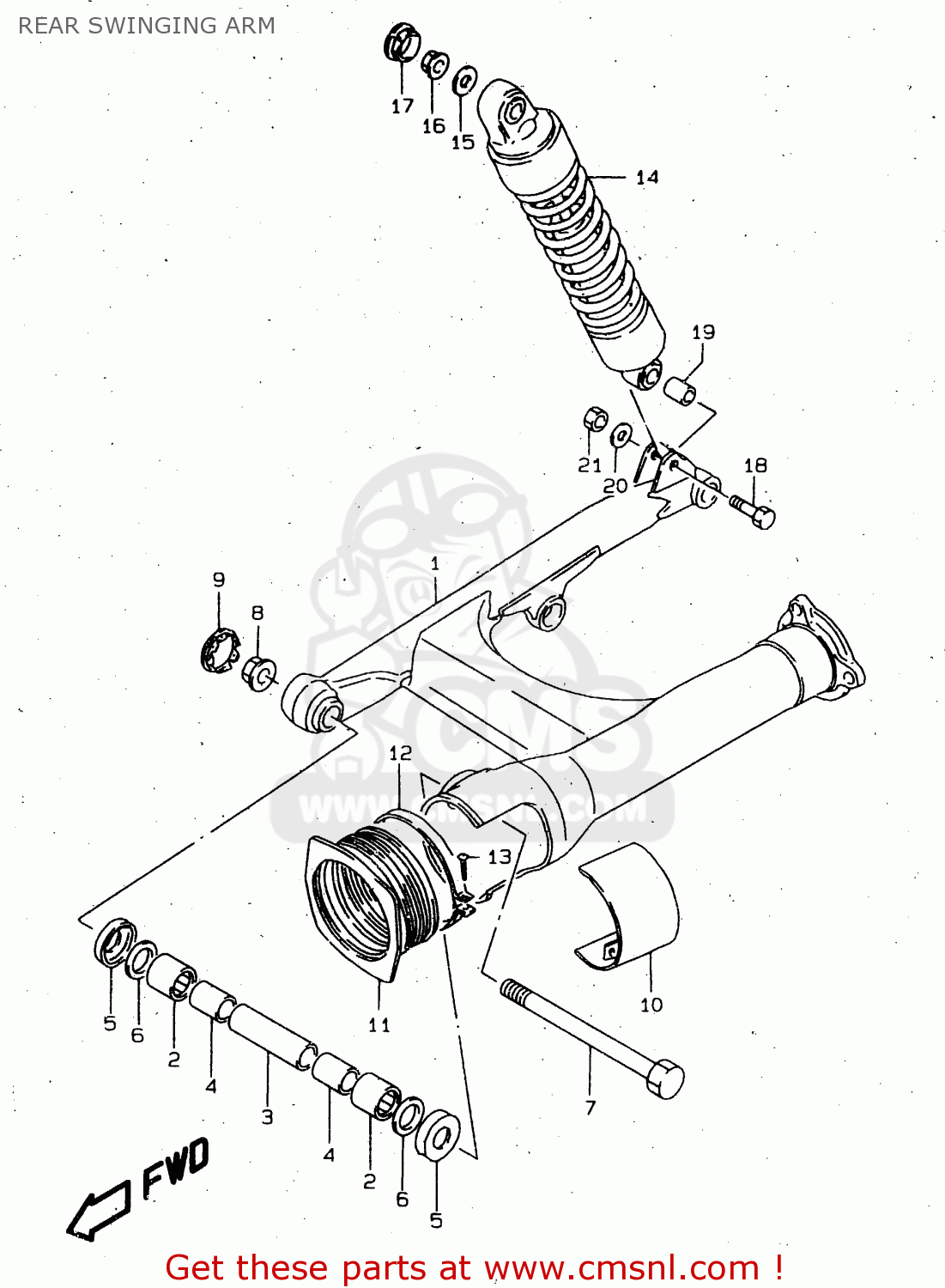

Rear swinging arm diagram VS1400GLP 2000 (Y)

REAR SWINGING ARM VS1400GLP 2000 (Y)
REAR SWINGING ARM VS1400GLP 2000 (Y)
REAR SWINGING ARM VS1400GLP 2000 (Y)
prices are in EUR
ref
part #
description
quantity
1
6110038B0133J
ref: 1
MODEL T FOR E6L, E6M
SWINGINGARM,RR
€ 597.50
1
6110038B011ZV
ref: 1
MODEL T FOR E6N
SWING ARM,REAR (GREEN)
€ 597.50
1
6110038B0120F
ref: 1
MODEL V FOR E6L
SWINGINGARM,RR
€ 592.00
1
6110038B01Y0N
ref: 1
MODEL V FOR G2F
SWING ARM COMP,REAR
€ 526.00
1
6110038B01Y2D
ref: 1
MODEL W FOR J4U
SWING ARM COMP,REAR
€ 597.50
1
6110038B0122U
ref: 1
MODEL W/X FOR G2P
SWINGINGARM,RR
€ 616.50
1
6110038B0133J
ref: 1
MODEL X FOR E88
SWINGINGARM,RR
€ 597.50
1
6110038B01Y7F
ref: 1
MODEL X FOR M0J
SWING ARM COMP,REAR
€ 597.50
2
0926322017
ref: 2
BEARING(22X29X30)
0926322017
€ 18.50
3
6128238B00
ref: 3
SPACER,RR SWGARM PIVOT CTR
6128238B00
€ 10.00
4
6125138B00
ref: 4
SPACER,RR SWGARM PIVOT
6125138B00
€ 14.00
5
6126214A00
ref: 5
SEAL,RR SWGARM PIVOT DUST
6126214A00
€ 7.50
6
0821116341
ref: 6
WASHER
0821116341
€ 2.00
7
6121138B00
ref: 7
SHAFT,RR SWINGINGARM PIVOT
6121138B00
€ 38.50
8
0831931148
ref: 8
NUT
0831931148
€ 9.00
9
6122238A01
ref: 9
RH
CAP,RR SWINGING ARM PIVOT,R
6122238A01
€ 6.50
10
6123038B0033J
ref: 10
MODEL T FOR E6L, E6M
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10
6123038B001ZV
ref: 10
MODEL T FOR E6N
COVER,REAR SWING ARM PIVOT
€ 17.00
10
6123038B0020F
ref: 10
MODEL V FOR E6L
COVER,RR SWGARM PIVOT,L
6123038B0020F
€ 22.50
10
6123038B00Y0N
ref: 10
MODEL V FOR G2F
COVER COMP,REAR SWING ARM PIVOT
€ 22.50
10
6123038B00Y2D
ref: 10
MODEL W FOR J4U
COVER,REAR SWING ARM PIVOT
€ 65.00
10
6123038B0022U
ref: 10
MODEL W/X FOR G2P
COVER,RR SWGARM PIVOT,L
€ 23.50
10
6123038B0033J
ref: 10
MODEL X FOR E88
COVER,RR SWGARM PIVOT,L
6123038B0033J
€ 65.00
10
6123038B00Y7F
ref: 10
MODEL X FOR M0J
COVER COMP,REAR SWING ARM PIVOT
€ 65.00
11
6137238B00
ref: 11
BOOT,PROPELLER SHAFT
6137238B00
€ 16.50
12
0940292306
ref: 12
CLAMP
0940292306
€ 8.50
13
0321104253
ref: 13
SCREW
0321104253
€ 2.00
14
6210038B01
ref: 14
MODEL T/V
ABSORBER ASSEMBLY,REAR SHOCK
€ 436.00
14
6210038B10
ref: 14
MODEL W/X
ABSORBER ASSY,RR SHOCK
6210038B10
€ 436.00
15
0916010123
ref: 15
WASHER(10.5X20X2.3)
0916010123
€ 2.00
16
0831610103
ref: 16
NUT
0831610103
€ 2.00
17
9567224A00
ref: 17
CAP,FRAME HANDLE GRIP
9567224A00
€ 5.00
18
0910010247
ref: 18
BOLT(10X39)
0910010247
€ 4.00
19
0918010139
ref: 19
SPACER(10.2X14X20.7)
0918010139
€ 6.00
20
0916010127
ref: 20
WASHER (10.5X24X2.3)
0916010127
€ 2.00
21
0831310107
ref: 21
NUT
0831310107
€ 2.50
