REAR FENDER (MODEL T)
VS1400GLP 2000 (Y)

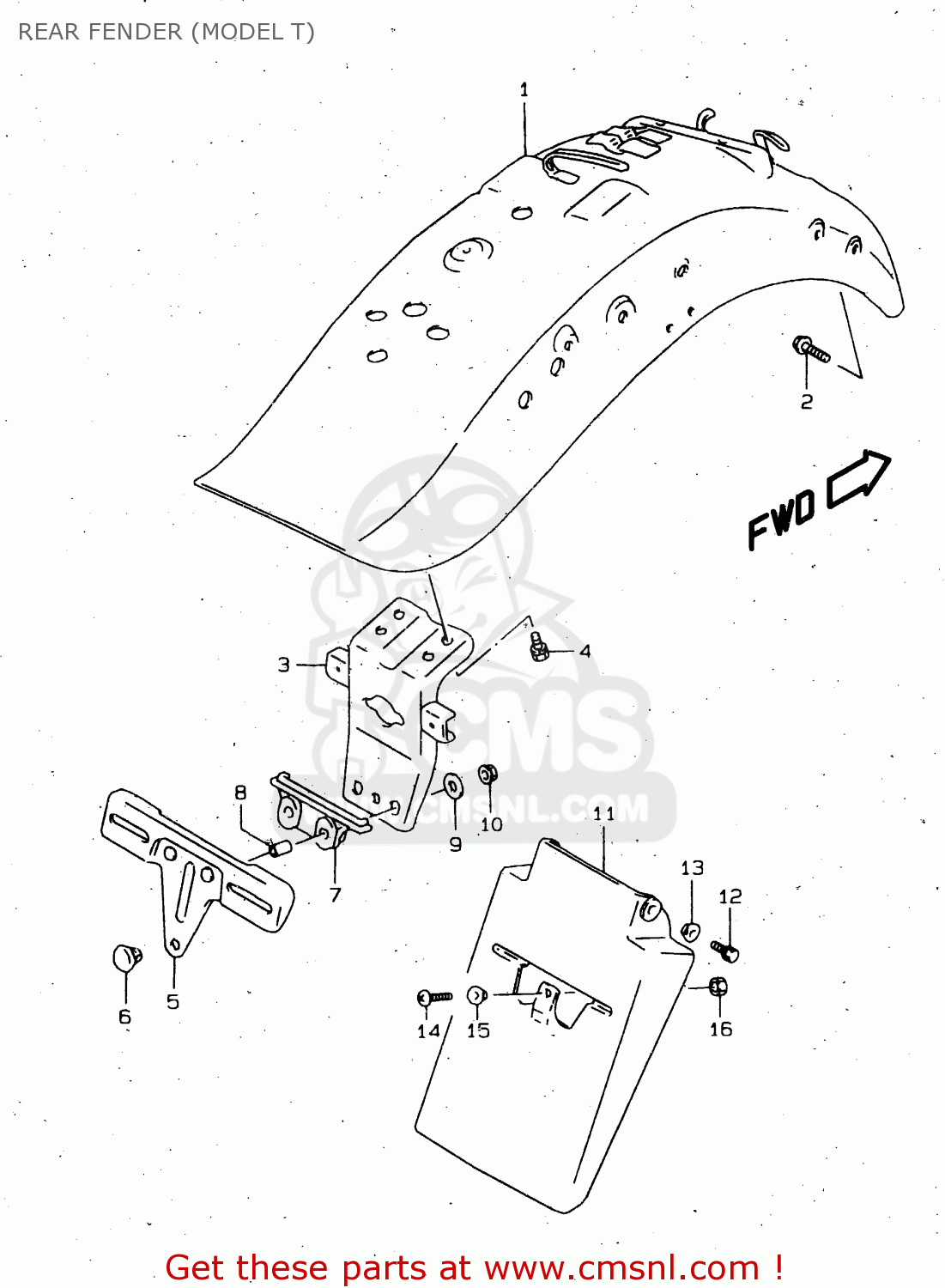

Rear fender (model t) diagram VS1400GLP 2000 (Y)
REAR FENDER (MODEL T) VS1400GLP 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
6311038B101ZV
ref: 1
FOR E6N
FENDER, REAR (GREEN)
€ 253.00
1
6311038B1033J
ref: 1
FOR E6L, E6M
FENDER, REAR (BLACK)
€ 223.50
1
6311038B201ZV
ref: 1
E17, E22 FOR E6N
FENDER,RR
€ 0.00
1
6311038B2033J
ref: 1
E17, E22 FOR E6L, E6
FENDER,RR
€ 347.50
2
0155008203
ref: 2
BOLT
€ 3.00
3
6346038B10
ref: 3
BRACKET,LICENSE LAMP
€ 56.50
4
0157006123
ref: 4
BOLT
€ 1.50
5
6346338B00
ref: 5
PLATE,REAR LICENSE
€ 27.50
6
0932108005
ref: 6
CUSHION
€ 2.50
7
6346438B00
ref: 7
CUSHION,RR LICENSE PLATE
€ 14.50
8
0918005028
ref: 8
SPACER (5.5X7.5X14.3)
€ 4.00
9
0916005501
ref: 9
WASHER(5.5X20X1.2)
€ 2.00
10
0831620053
ref: 10
NUT
€ 2.00
11
6331138B00
ref: 11
E17, E22
EXTENSION,RR FENDER
€ 26.50
12
0157006163
ref: 12
E17, E22
BOLT
€ 2.50
13
0916906045
ref: 13
E17, E22
WASHER
€ 2.50
14
0211206123
ref: 14
E17, E22
SCREW
€ 1.50
15
0916906033
ref: 15
E17, E22
WASHER
€ 1.50
16
0831921068
ref: 16
E17, E22
NUT 6MM
€ 2.00
