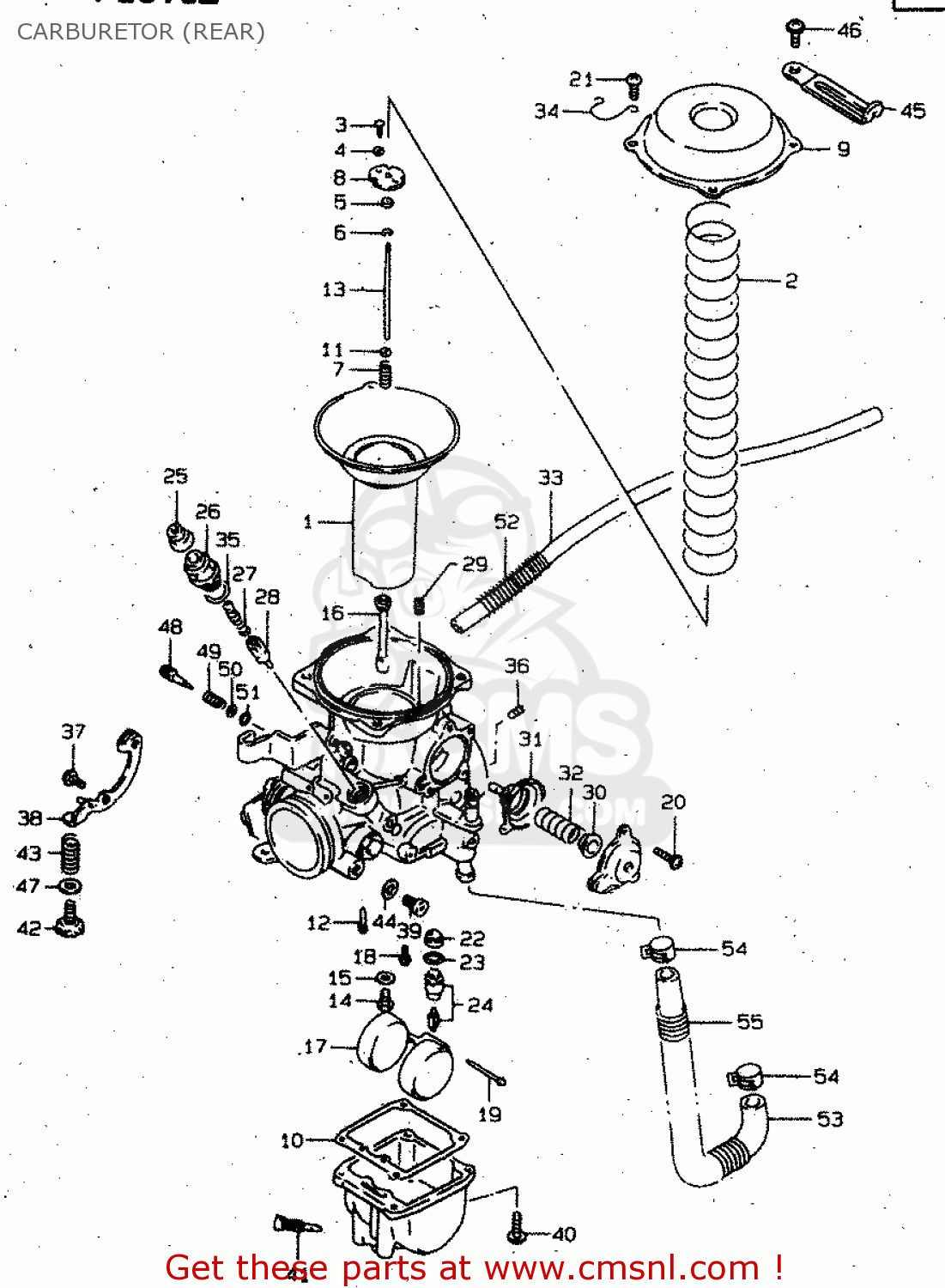

CARBURETOR (REAR)

ref

part #

description

quantity

0

1322038BB0
ref: 0

CARBURETOR ASSY,RR

€ 777.00

0

1322038BC0
ref: 0
E17, E22

CARBURETOR ASSY,RR

€ 634.00

0

1322038B90
ref: 0
E24

CARBURETOR ASS

€ 731.50

0

1322038BD0
ref: 0
E37, P37

CARBURETOR ASSY, REAR

€ 0.00

1

1350038B10
ref: 1

DIAPHRAGM ASSY

€ 231.00

2

1350305A10
ref: 2

SPRING,DIAPHRAGM

€ 12.00

3

0211203063
ref: 3

SCREW

€ 2.00

4

0832121033
ref: 4

WASHER,LOCK

€ 1.50

5

1338747010
ref: 5

RING

€ 7.50

6

1339410010
ref: 6

CLIP

€ 4.50

7

1338844030
ref: 7

SPRING

€ 6.00

8

1338937400
ref: 8

PLATE

€ 5.50

9

1350238A10
ref: 9

COVER,DIAPHRAGM

€ 37.50

10

1325138A10
ref: 10

GASKET,FLOAT CHAMBER (NAS)

€ 8.00

11

1338244030
ref: 11

WASHER

€ 3.50

12

0949255014
ref: 12

JET,PILOT(55)

€ 16.50

12

0949257004
ref: 12
E24

JET,PILOT

€ 10.50

13

1338338B80
ref: 13

NEEDLE,JET

€ 17.50

14

0949126011
ref: 14

JET,MAIN(130)

€ 11.50

14

0949128010
ref: 14
E24

JET,MAIN(140)

€ 8.50

15

1338203110
ref: 15
<-13332-44080

WASHER

€ 2.50

16

0949400856
ref: 16

JET,NEEDLE(P-3)

€ 37.00

17

1325223010
ref: 17

FLOAT

€ 19.00

18

1360205A10
ref: 18

SCREW

€ 4.00

19

1325492311
ref: 19

PIN,FLOAT

€ 2.00

20

0211204107
ref: 20

SCREW

€ 2.00

21

0211204083
ref: 21

SCREW

€ 2.00

22

1337684110
ref: 22

FILTER

€ 6.50

23

1337444080
ref: 23

O-RING,NEEDLE VALVE

€ 6.00

24

1337039A00
ref: 24

VALVE ASSY,NEEDLE

€ 67.50

24

1337038E00
ref: 24
E37, P37

VALVE ASSY,NEEDLE(NI)

€ 67.50

25

1368104010
ref: 25

CAP

€ 3.00

26

1341843410
ref: 26

HOLDER,GUIDE

€ 6.50

27

1341722010
ref: 27

SPRING

€ 3.00

28

1341101400
ref: 28

PLUNGER,STARTER

€ 11.50

29

0949331001
ref: 29

JET,AIR(1.55)

€ 12.00

29

0949338002
ref: 29
E24

JET,AIR(1.9)

€ 10.00

30

1348237300
ref: 30
E24

PLATE

€ 0.00

31

1348005A10
ref: 31

DIAPHRAGM ASSY

€ 54.50

32

1348138B40
ref: 32

SPRING

€ 5.50

33

0935250823600
ref: 33
L:600->175

HOSE(5X8.2X600)

€ 13.00

34

1369202500
ref: 34

CLIP

€ 7.00

35

1327847090
ref: 35

O RING

€ 2.00

36

0949240018
ref: 36

JET,PILOT(40)

€ 16.00

36

0949260012
ref: 36
E24

JET,AIR(60)

€ 7.50

37

1360205A30
ref: 37

SCREW

€ 4.50

38

1355445C20
ref: 38

LEVER ASSY

€ 38.50

38

1355438B00
ref: 38
E24

LEVER ASSEMBLY

€ 38.50

39

1360573000
ref: 39

SCREW

€ 10.50

40

1360104148
ref: 40

SCREW

€ 2.50

41

1324713A00
ref: 41

SCREW,DRAIN

€ 5.50

42

1326739E50
ref: 42

ADJUSTER

€ 13.00

42

1326738A10
ref: 42
E24

ADJUSTER

€ 13.00

43

1327193011
ref: 43

SPRING

€ 4.50

44

1324978100
ref: 44

WASHER

€ 4.00

45

0940406432
ref: 45
<-09404-06431

CLAMP(L:65)

€ 2.50

45

0940406433
ref: 45
E24

CLAMP(L:80)

€ 3.00

46

0214204083
ref: 46

SCREW

€ 1.50

47

1327737100
ref: 47

WASHER

€ 2.00

48

1327947070
ref: 48

SCREW,PILOT

€ 11.50

48

1327947070
ref: 48
E17, E22

SCREW,PILOT

€ 11.50

48

1327947070
ref: 48
E24

SCREW,PILOT

€ 11.50

49

1326847070
ref: 49

SPRING

€ 5.00

50

1329129900
ref: 50

WASHER

€ 2.00

51

1329529900
ref: 51

O RING,PILOT AIR SCREW

€ 4.00

52

1344638B00
ref: 52

SPRING

€ 8.50

53

1580138B00
ref: 53

HOSE,FUEL PUMP & CARBURETOR

€ 14.50

54

0940111407
ref: 54

CLIP

€ 2.50

55

0944014030
ref: 55

SPRING

€ 25.00
