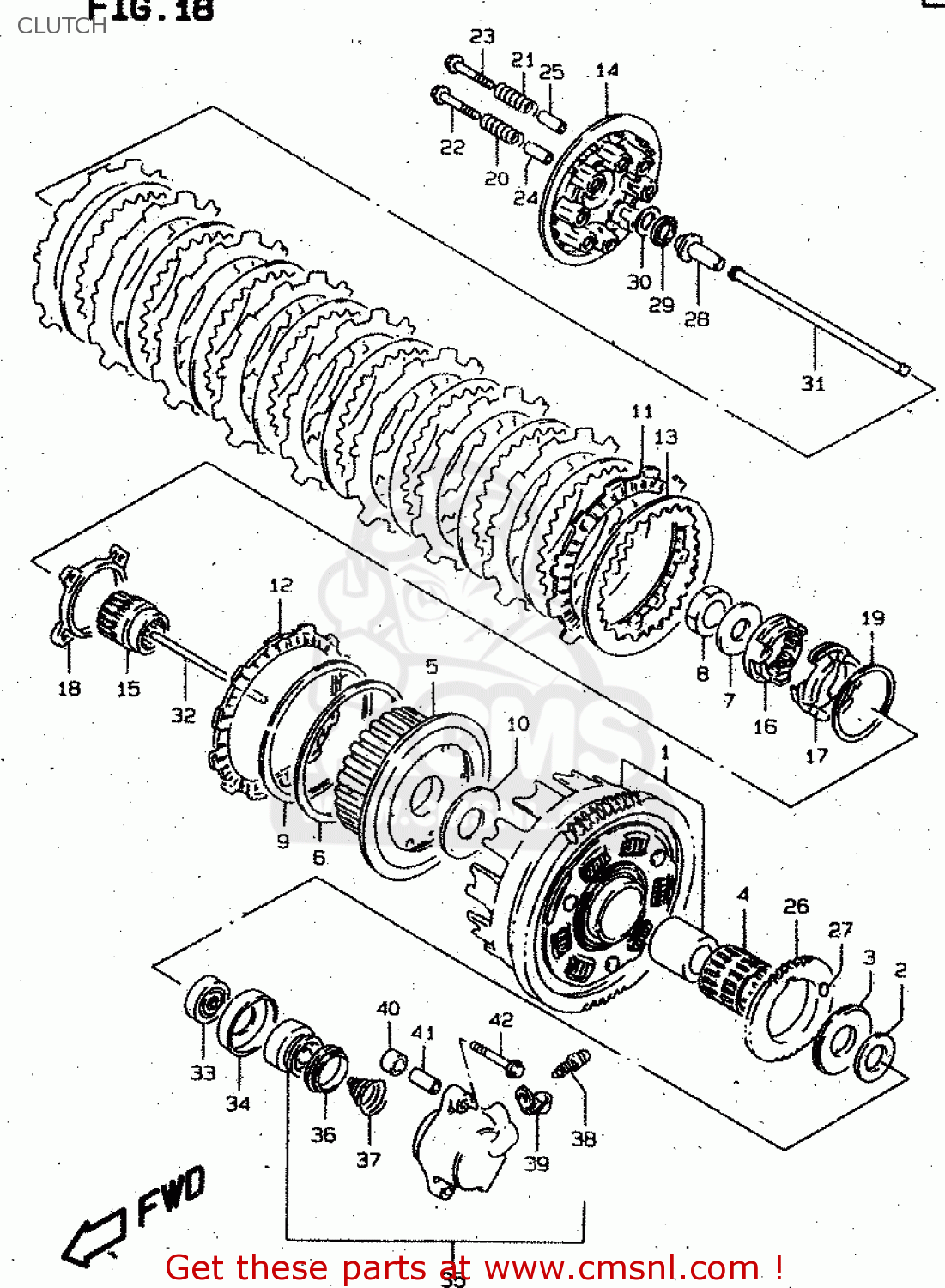

CLUTCH

ref

part #

description

quantity

1

2120038823
ref: 1
<-21200-38821

GEAR ASSY,PRI DRIVEN

€ 468.00

1

2120038823
ref: 1
MODEL W/X

GEAR ASSY,PRI DRIVEN

€ 468.00

2

0916025066
ref: 2

WASHER(25X38X2.5)

€ 6.00

3

0916025067
ref: 3
MODEL T/V/W

WASHER(25X54X2.5)

€ 9.00

3

0916025037
ref: 3
MODEL X

WASHER(25X54X2.5)

€ 9.00

4

0926335017
ref: 4

BEARING(35X40X35.8)

€ 36.50

5

2141038B00
ref: 5

HUB,CLUTCH SLEEVE

€ 136.00

6

2147137400
ref: 6

SEAT,WAVE WASHER(T:1.4)

€ 8.00

7

0916422008
ref: 7

WASHER

€ 8.00

8

0914022011
ref: 8

NUT

€ 9.00

9

0916400004
ref: 9

WASHER

€ 9.00

10

0916025065
ref: 10

WASHER(25X60X2.5)

€ 15.50

11

2144112D01
ref: 11
<-21441-07A02

PLATE,CLUTCH DRIVE (NAS)

€ 16.50

12

2144237401
ref: 12

PLATE,CLUTCH DRIVE(T:3.5) (NAS)

€ 11.50

13

2145105A00
ref: 13

PLATE,CLUTCH DRIVEN (NAS)

€ 9.00

14

2146238B00
ref: 14

DISC,CLUTCH PRESSURE

€ 51.50

15

2162138B00
ref: 15

SPACER,CLUTCH SLEEVE HUB

€ 70.00

16

2611138B03
ref: 16
<-26111-38B02

CAM,CLUTCH NO.1

€ 54.50

17

2611238B02
ref: 17
<-26112-38B01

CAM,CLUTCH NO.2

€ 70.50

18

2161338B00
ref: 18
MODEL T/V

SLIDER,CLUTCH SPRING

€ 65.50

18

2161338B01
ref: 18
MODEL W/X

SLIDER,CLUTCH SPRING

€ 65.50

19

0916054002
ref: 19

WASHER(54X62X1)

€ 9.50

20

0944014021
ref: 20

SPRING

€ 5.00

21

0944014022
ref: 21

SPRING

€ 5.00

22

0911606135
ref: 22

BOLT(6X40)

€ 3.00

23

0155006353
ref: 23

BOLT

€ 2.50

24

0918006177
ref: 24

SPACER(6.4X10X22)

€ 7.50

25

0918006276
ref: 25
<-09180-06192

SPACER(6.5X9X24.1)

€ 6.50

26

1632138B00
ref: 26

GEAR,OIL PUMP DRIVE

€ 62.50

27

0926106002
ref: 27

PIN(6X6)

€ 1.50

28

2312138B00
ref: 28

PIECE,CLUTCH PUSH

€ 25.00

29

0926315003
ref: 29

BEARING(15X28X2)

€ 7.00

30

0916015045
ref: 30

WASHER(15.5X28X1)

€ 4.00

31

2311038B00
ref: 31

ROD,CLUTCH PUSH,R

€ 19.00

32

2311124A01
ref: 32

ROD,CLUTCH PUSH,L

€ 15.00

33

0928506017
ref: 33

SEAL,OIL(6X34X11)

€ 11.00

34

2311738A00
ref: 34

RETAINER,CL PUSH ROD OIL SEAL

€ 6.00

35

2316038B00
ref: 35

CYLINDER,CLUTCH RELEASE

€ 122.50

36

2316306B00
ref: 36

CUP

€ 5.50

37

2316405A00
ref: 37

SPRING,CLUTCH CYLINDER

€ 3.50

38

5912101A00
ref: 38

BLEEDER

€ 8.50

39

5912201A00
ref: 39

CAP,BLEEDER

€ 4.50

40

0918009019
ref: 40

SPACER(9X16X11)

€ 7.50

41

0920609011
ref: 41

PIN(6.4X9X23)

€ 7.50

42

0155006403
ref: 42

BOLT

€ 2.00

all assemblies
