CRANKCASE COVER
VS1400GLP 2000 (Y)

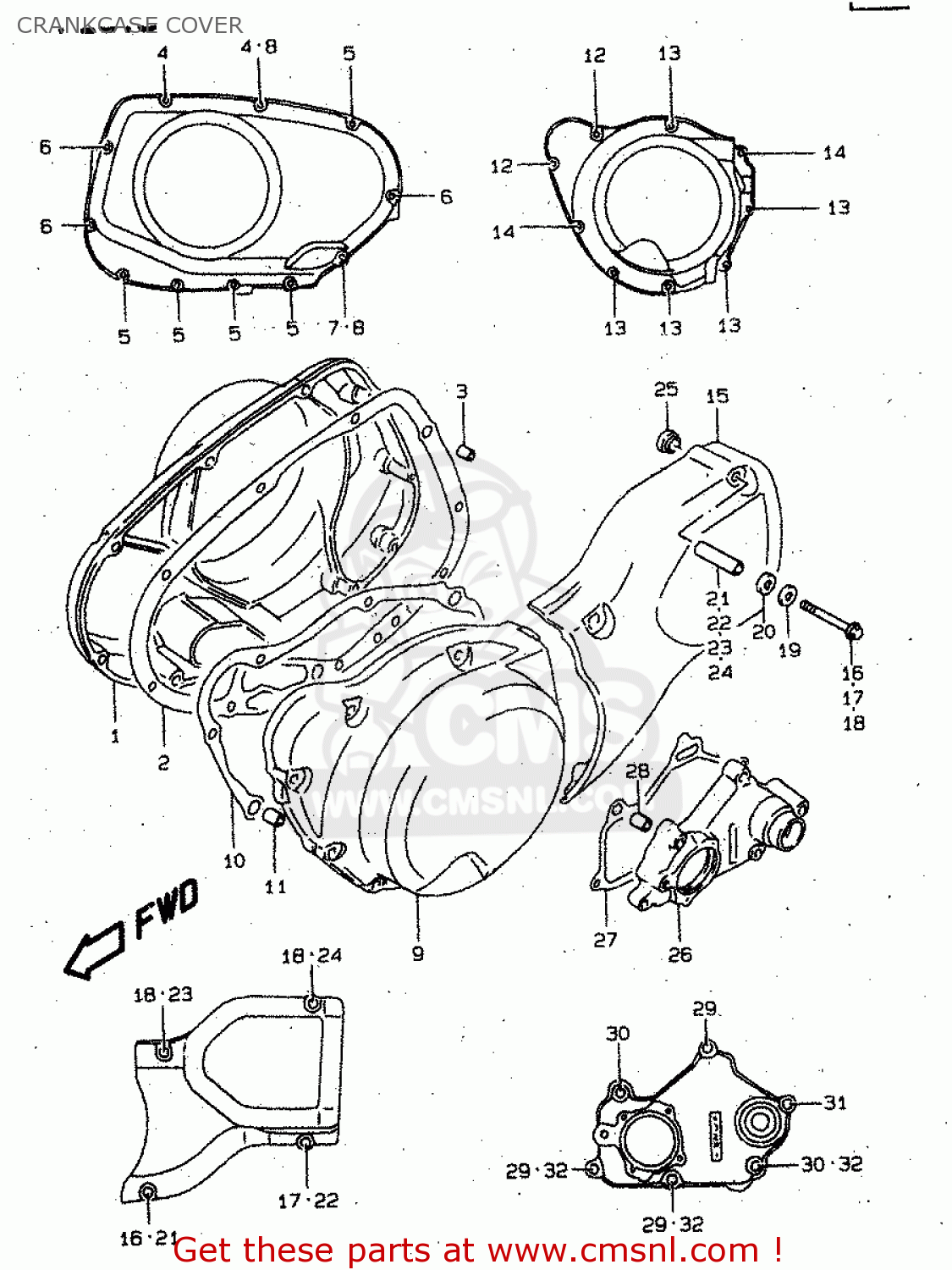

Crankcase cover diagram VS1400GLP 2000 (Y)
CRANKCASE COVER VS1400GLP 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1134138B00
ref: 1
~F.NO.VX51L-133992,
COVER,CLUTCH
€ 381.50
1
1134138B01
ref: 1
F.NO.VX51L-133993~,
COVER,CLUTCH
€ 381.50
2
1148238B00H17
ref: 2
MODEL T/V
GASKET,CLUTCH COVER (NAS)
€ 22.50
2
1148238B10
ref: 2
MODEL W/X
GASKET,CLUTCH COVER (NAS)
€ 22.50
3
0421109189
ref: 3
PIN
€ 2.00
4
0154706257
ref: 4
~F.NO.VX51L-133992,
BOLT
€ 2.50
4
0154706307
ref: 4
F.NO.VX51L-133993~,
BOLT
€ 2.50
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706407
ref: 6
BOLT
€ 2.50
7
0154706557
ref: 7
BOLT
€ 2.50
8
0916806024
ref: 8
GASKET(5.8X11X1.2) (NAS)
€ 2.00
9
1135138B00
ref: 9
COVER,GENERATOR
€ 330.00
10
1148338B00H17
ref: 10
GASKET,GENERATOR COVER (NAS)
€ 13.50
11
0920611017
ref: 11
PIN(8.4X11X20)
€ 6.50
12
0154706307
ref: 12
BOLT
€ 2.50
13
0154706357
ref: 13
BOLT
€ 2.50
14
0154706457
ref: 14
BOLT
€ 2.50
15
1136138B00
ref: 15
COVER,SECONDARY GEAR CASE
€ 156.50
16
0154706357
ref: 16
BOLT
€ 2.50
17
0154706407
ref: 17
BOLT
€ 2.50
18
0154706607
ref: 18
BOLT
€ 2.50
19
0916006097
ref: 19
MODEL T/V
WASHER
€ 2.00
19
0916006125
ref: 19
MODEL W/X
WASHER(6.5X14X1.6)
€ 2.00
20
0916109005
ref: 20
WASHER(8.7X16X5)
€ 2.50
21
0918006301
ref: 21
SPACER(6.5X9X21)
€ 6.00
22
0918006302
ref: 22
SPACER(6.5X9X26)
€ 7.00
23
0918006303
ref: 23
SPACER(6.5X9X49)
€ 9.50
24
0918006183
ref: 24
~E.NO.155401
SPACER (L=45.9)
€ 7.00
24
0918006281
ref: 24
E.NO.155402~
SPACER(6.5X9X45.9)
€ 7.00
25
0916109005
ref: 25
WASHER(8.7X16X5)
€ 2.50
26
1137138B10
ref: 26
MODEL T/V/W
COVER,GEAR SHIFT
€ 76.50
26
1137138B20
ref: 26
MODEL X
COVER,GEAR SHIFT
€ 76.50
27
1148538B00H17
ref: 27
MODEL T/V
GASKET,GEAR SHIFT COVER (NAS)
€ 7.50
27
1148538B10
ref: 27
MODEL W/X
GASKET,GEAR SHIFT COVER (NAS)
€ 7.50
28
0421109109
ref: 28
PIN
€ 2.00
29
0154706257
ref: 29
BOLT
€ 2.50
30
0154706357
ref: 30
BOLT
€ 2.50
31
0154706457
ref: 31
BOLT
€ 2.50
32
0916806024
ref: 32
GASKET(5.8X11X1.2) (NAS)
€ 2.00
