FRONT WHEEL

VS1400GLP 2000 (Y)

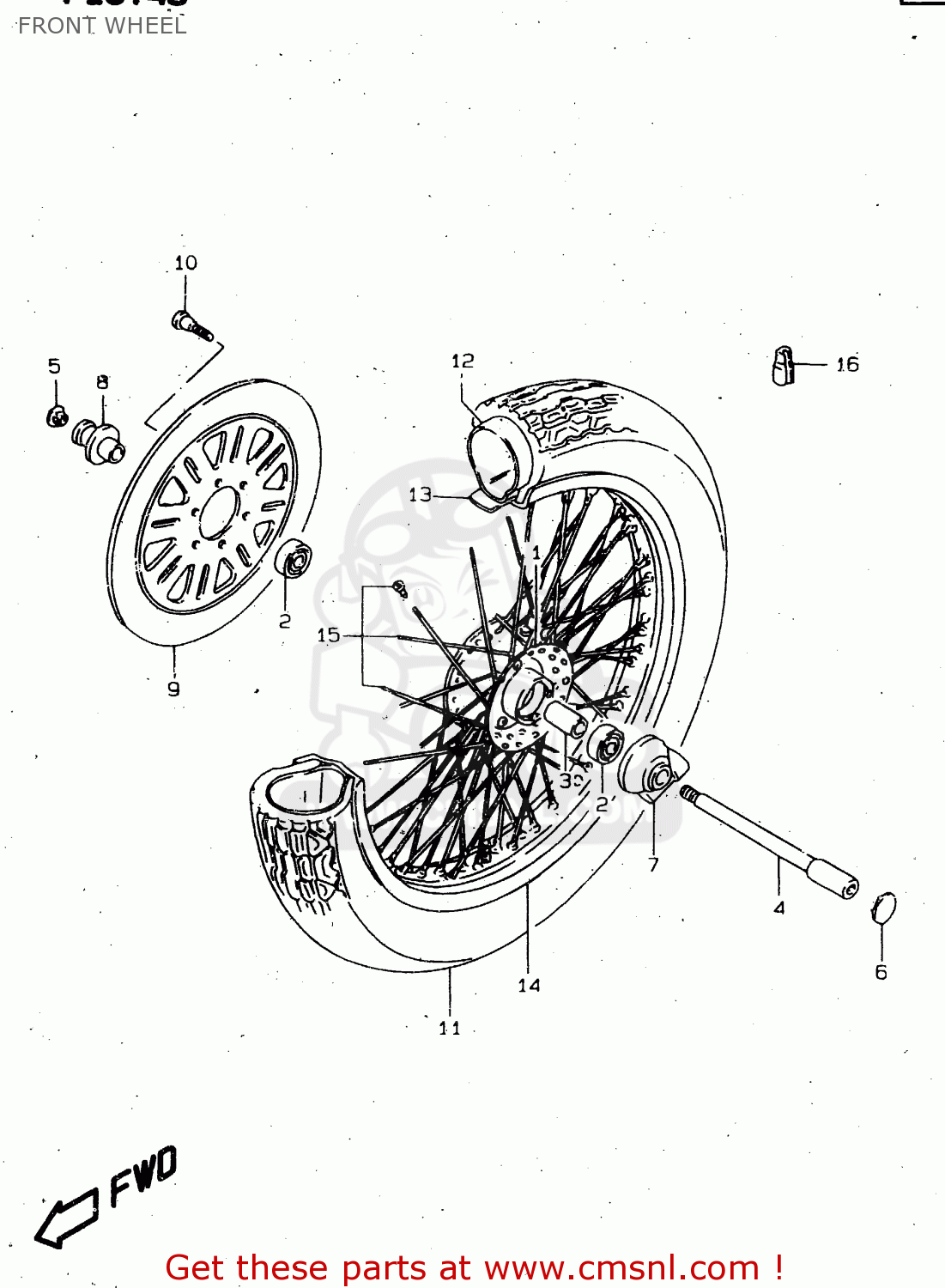

Front wheel diagram VS1400GLP 2000 (Y)

FRONT WHEEL VS1400GLP 2000 (Y)

FRONT WHEEL VS1400GLP 2000 (Y)

prices are in EUR

ref

part #

description

quantity

1

5411038B00
ref: 1

HUB ASSY,FR

€ 323.50

2

0812363027
ref: 2

BEARING

€ 19.00

3

0918015004
ref: 3

SPACER(15.3X21.7X65)

€ 9.00

4

5471138B02
ref: 4

AXLE,FR

€ 60.50

5

5479138B01
ref: 5
RH

CAP,FR AXLE

€ 4.50

6

5479238B00
ref: 6
LH

CAP,FR AXLE

€ 97.00

7

5460038A11
ref: 7

BOX ASSY,SPEEDOMETER

€ 124.50

8

5475038B00
ref: 8

SPACER,FR AXLE

€ 25.50

9

5921138B00
ref: 9

DISC,FR BRAKE

€ 232.50

10

0910608125
ref: 10

BOLT 8X33

€ 6.00

11

5510038B00
ref: 11
BRIDGESTONE

TIRE COMP,FRONT 110/90-19

€ 0.00

12

5520044610
ref: 12

TUBE

€ 41.00

13

5526115010
ref: 13

PROTECTOR,WHL INR TUBE

€ 2.50

14

5531138B03
ref: 14

RIM,FR WHEEL(2.15X19)

€ 481.50

15

5532038B00
ref: 15

SPOKE SET,FR WHEEL

€ 176.50

16

5541238A00
ref: 16

BALANCER,WHEEL

€ 6.50

16

5541338A00
ref: 16

BALANCER,WHEEL (30G)

€ 8.00
