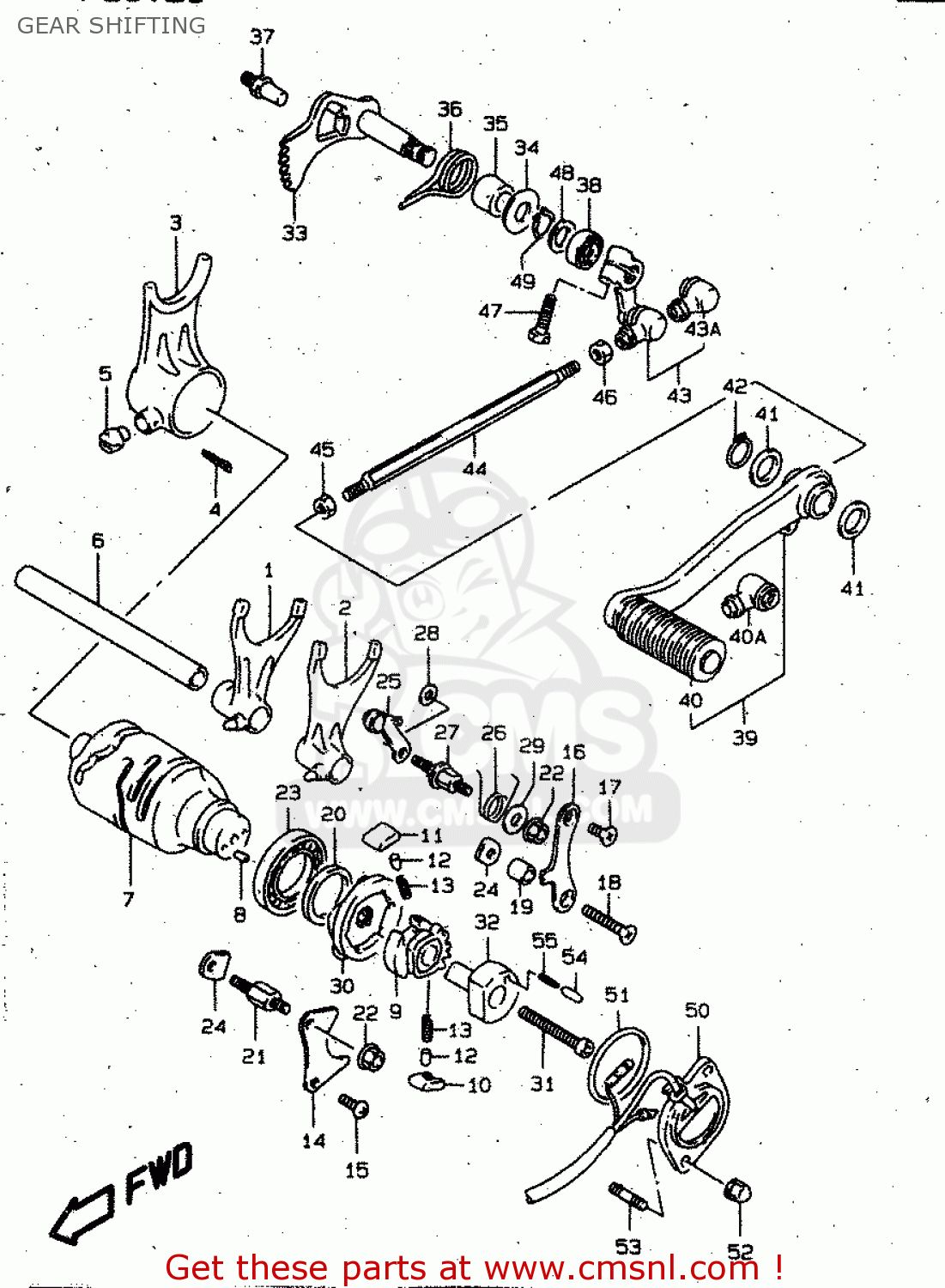

GEAR SHIFTING

ref

part #

description

quantity

1

2521138B11
ref: 1
<-25211-38B10

FORK,GEAR SHIFT NO.1

€ 83.00

2

2522138B10
ref: 2

FORK,GEAR SHIFT NO.2

€ 83.00

3

2523138B10
ref: 3

FORK,GEAR SHIFT NO.3

€ 168.00

4

0411125308
ref: 4

PIN, COTTER

€ 1.50

5

0920910002
ref: 5

PIN

€ 8.50

6

2541138B01
ref: 6

SHAFT,GEAR SHIFT FORK(L:152)

€ 20.00

7

2531038B10
ref: 7

CAM,GEAR SHIFT

€ 213.50

8

0422104089
ref: 8

PIN

€ 1.50

9

2532231310
ref: 9
<-25322-31302

GEAR,GEAR SHIFT CAM DRIVEN

€ 14.50

10

2532334201
ref: 10

PAWL,GEAR SHIFT NO.1

€ 6.00

11

2532434201
ref: 11

PAWL,GEAR SHIFT NO.2

€ 6.00

12

0926105003
ref: 12

PIN(5X8)

€ 1.50

13

0944004003
ref: 13

SPRING

€ 1.50

14

2533138B00
ref: 14

LIFTER,GEAR SHIFT POLE

€ 5.00

15

0211206123
ref: 15

SCREW

€ 1.50

16

2534138B00
ref: 16

GUIDE,GEAR SHIFT CAM

€ 7.00

17

0212206123
ref: 17

SCREW

€ 3.00

18

0212206303
ref: 18

SCREW

€ 2.00

19

0918006293
ref: 19
<-09180-06169

SPACER(6.5X10X14)

€ 2.00

20

0916025059
ref: 20

WASHER(25X32X3)

€ 5.00

21

2533238A00
ref: 21

BOSS,SHIFT PAWL LIFTER

€ 3.50

22

0831610063
ref: 22

NUT

€ 2.50

23

0926225006
ref: 23

BEARING(25X47X8)

€ 24.00

24

2474121A00
ref: 24

RETAINER

€ 2.00

25

2535038B00
ref: 25

STOPPER,GEAR SHIFT CAM

€ 13.00

26

0944817024
ref: 26

SPRING

€ 5.00

27

2535612C00
ref: 27

SUPPORT,CAM STOPPER ARM

€ 9.50

28

0821106141
ref: 28

WASHER

€ 2.50

29

0916006013
ref: 29

WASHER (6.5X18X2)

€ 10.50

30

2538038B00
ref: 30

PLATE,GEAR SHIFT CAM

€ 15.00

31

0713006403
ref: 31

BOLT

€ 3.50

32

2531238B01
ref: 32

HOLDER,NEUTRAL SWITCH

€ 21.00

33

2551038B00
ref: 33

SHAFT,GEAR SHIFT

€ 94.00

34

0916012091
ref: 34
<-09160-12063

WASHER(12.5X28X1.2)

€ 2.50

35

0918012068
ref: 35

SPACER(12X20X15.3)

€ 3.00

36

0944426021
ref: 36

SPRING

€ 5.00

37

2567138B00
ref: 37

STOPPER,SHIFT ARM

€ 3.00

38

0928512002
ref: 38

OIL SEAL

€ 7.00

39

2560038B01
ref: 39

LEVER ASSY,GEAR SHIFT

€ 78.00

40

2565238B00
ref: 40

RUBBER,GEAR SHIFT PEDAL

€ 7.50

40A

2552647000
ref: 40A

COVER,DUST

€ 3.50

41

0916014054
ref: 41
<-09160-14003

WASHER(14.5X22X1)

€ 1.00

42

0833131146
ref: 42

CIRCLIP

€ 2.00

43

2552038B00
ref: 43

ARM,GEAR SHIFT LINK

€ 39.50

43A

2552647000
ref: 43A

COVER,DUST

€ 3.50

44

2552538B00
ref: 44

ROD,GEAR SHIFT LINK

€ 21.00

45

0914006011
ref: 45

NUT

€ 1.50

46

0831000067
ref: 46

NUT

€ 2.50

47

0150006207
ref: 47

BOLT

€ 2.00

48

0918112167
ref: 48

SHIM(12X20X1)

€ 2.50

49

0833131126
ref: 49

CIRCLIP,12 MM

€ 2.00

50

3772038B00
ref: 50
E24

BASE ASSY,NEUTRAL SW TERMINAL

€ 94.50

50

3772038B10
ref: 50
E2, E4, E22, E34, E3

BASE ASSY,GEAR SHIFT TERMINAL

€ 92.50

51

0928035006
ref: 51

O RING(D:2.4,ID:35.5)

€ 4.00

52

0831320053
ref: 52

NUT

€ 1.50

53

0910805010
ref: 53

BOLT,STUD

€ 2.50

54

0920904021
ref: 54

PIN

€ 9.00

55

0944002003
ref: 55

SPRING

€ 12.00
