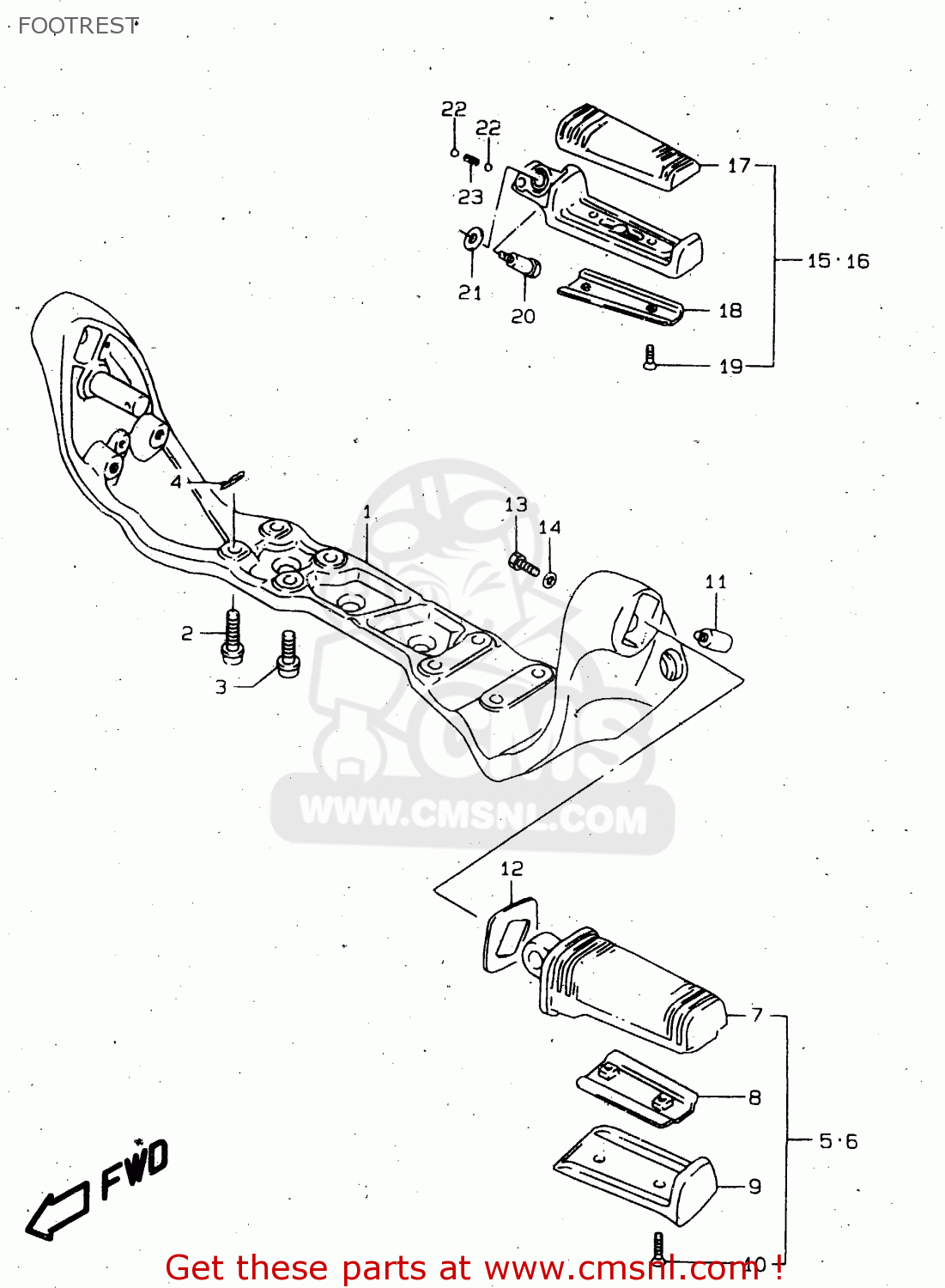

FOOTREST

ref

part #

description

quantity

1

4351039B00
ref: 1
MODEL T

BRACKET,FRONT FOOTREST

€ 769.00

1

4351039B10
ref: 1
MODEL V/W/X

BRACKET COMP,FRONT FOOTREST

€ 769.00

2

0910608064
ref: 2

BOLT(8X25)

€ 4.50

3

0712008203
ref: 3

BOLT

€ 3.00

4

0938508005
ref: 4

SNAP

€ 2.00

5

4350138B11
ref: 5

FOOTREST ASSY,FR,R

€ 97.00

6

4350238B11
ref: 6

FOOTREST ASSY,FR,L

€ 97.00

7

4355138B00
ref: 7

RUBBER,FR FOOTREST

€ 12.50

8

4358038B10
ref: 8

PLATE,RUBBER STOPPER

€ 8.50

9

4358538B11
ref: 9

COVER,FR FOOTREST

€ 45.50

10

0912705018
ref: 10

SCREW(5X20)

€ 2.50

11

4364138B00
ref: 11

BOLT,FRONT FOOTREST

€ 4.50

12

4354638B01
ref: 12

WASHER,FR FOOTREST

€ 5.00

13

0713005123
ref: 13
MODEL T/V/W

BOLT

€ 2.50

13

0211235123
ref: 13
MODEL X

SCREW

€ 1.50

14

0832101053
ref: 14
MODEL T/V/W

LOCK,WASHER

€ 3.00

15

4360038A01
ref: 15

FOOTREST ASSY RH

€ 39.50

16

4370038A01
ref: 16

FOOTREST ASSY PILLION LH

€ 35.50

17

4361238A00
ref: 17

RUBBER,PILLION FOOTREST

€ 12.00

18

4363238A00
ref: 18

PLATE,RUBBER STOPPER

€ 4.00

19

0912705017
ref: 19

SCREW(5X16)

€ 2.00

20

0911106050
ref: 20

BOLT(6X34.5)

€ 5.00

21

0822108164
ref: 21

SHIM

€ 1.50

22

0611107004
ref: 22

BALL

€ 1.50

23

0944005031
ref: 23

SPRING

€ 1.50

all assemblies
