OIL PUMP - FUEL PUMP
VS1400GLP 2000 (Y)

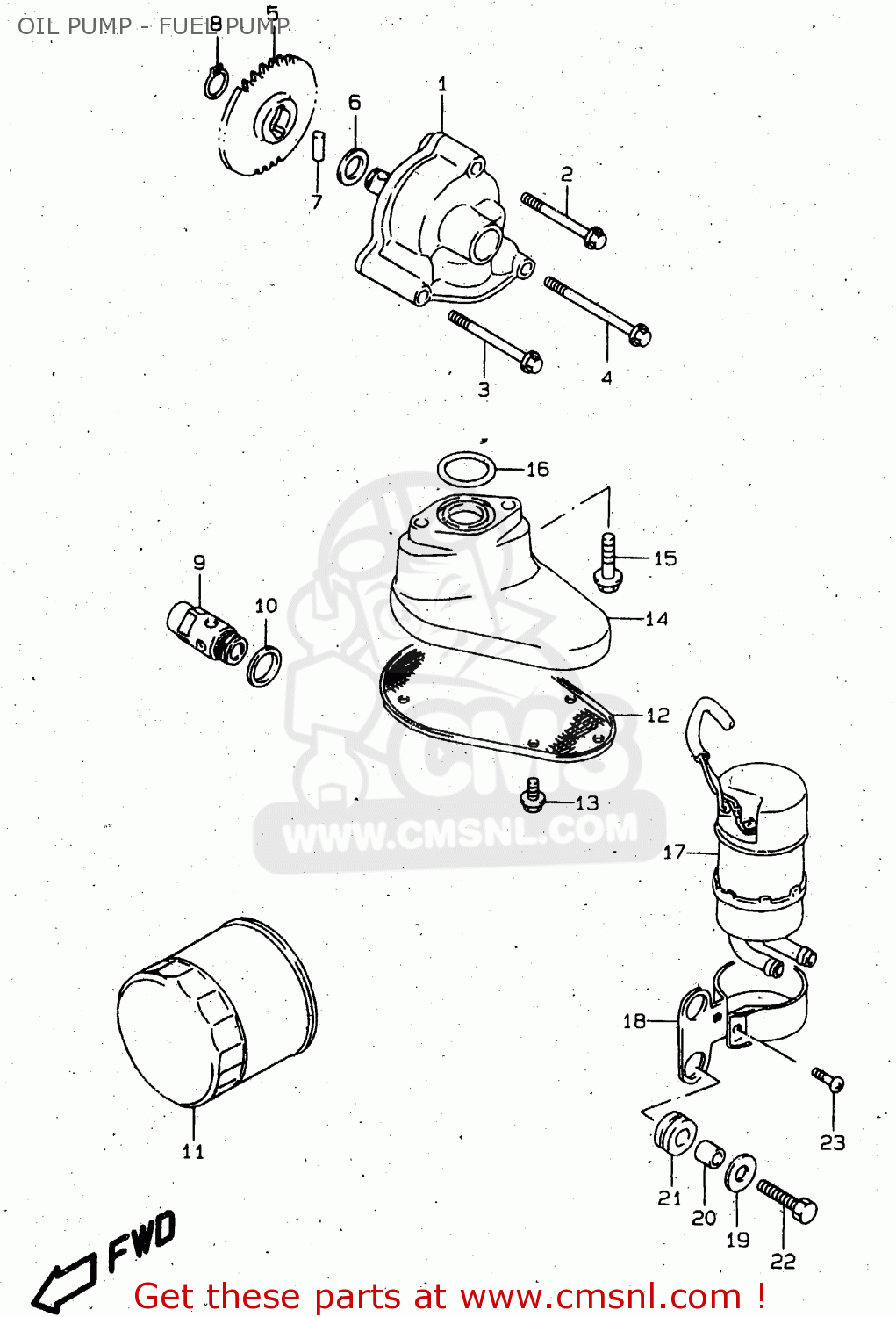

Oil pump - fuel pump diagram VS1400GLP 2000 (Y)
OIL PUMP - FUEL PUMP VS1400GLP 2000 (Y)
×
prices are in EUR
ref
part #
description
quantity
1
1640038B00
ref: 1
PUMP ASSY,ENGINE OIL
€ 244.50
2
0154706453
ref: 2
BOLT
€ 3.00
3
0154706553
ref: 3
BOLT
€ 3.00
4
0154706653
ref: 4
BOLT
€ 2.00
5
1633138B00
ref: 5
~E.NO.171553
GEAR,OIL PUMP DRIVEN
€ 61.50
5
1633138B01
ref: 5
E.NO.171554~
GEAR,OIL PUMP DRIVEN
€ 61.50
6
0822112205
ref: 6
~E.NO.162131
SHIM
€ 1.50
6
0918112158
ref: 6
E.NO.162132~
SHIM(12X20X0.5)
€ 2.00
7
0926105006
ref: 7
PIN(5X18)
€ 1.50
8
0833131126
ref: 8
CIRCLIP,12 MM
€ 2.00
9
1644024A01
ref: 9
VALVE ASSY,OIL RELIEF
€ 52.00
10
0916816002
ref: 10
GASKET(16X22X2) (NAS)
€ 2.00
11
1651006B01
ref: 11
MODEL T/V
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
11
1651034E00
ref: 11
MODEL W/X
FILTER ASSEMBLY,ENGINE OIL
€ 12.50
12
1652038B10
ref: 12
STRAINER,ENGINE OIL
€ 21.00
13
0155005103
ref: 13
BOLT
€ 2.50
14
1652538B10
ref: 14
HOLDER,OIL STR
€ 24.00
15
0155006253
ref: 15
BOLT
€ 2.50
16
0928022008
ref: 16
O RING(D:3.1,ID:22.7)
€ 2.50
17
1510038A00
ref: 17
PUMP ASSY,FUEL
€ 238.50
18
1511038B01
ref: 18
BRACKET,FUEL PUMP
€ 9.00
19
0916006088
ref: 19
WASHER(6.5X20X1.6)
€ 2.00
20
0918006317
ref: 20
MODEL T, <-09180-061
SPACER (6.5X10X9.4)
€ 2.00
20
0918006286
ref: 20
MODEL V/W/X
SPACER(6.5X10X9.4)
€ 2.50
21
0932010015
ref: 21
CUSHION
€ 2.50
22
0150006253
ref: 22
BOLT
€ 2.50
23
0214204167
ref: 23
SCREW
€ 2.00
