prices are in EUR
ref
part #
description
quantity
0

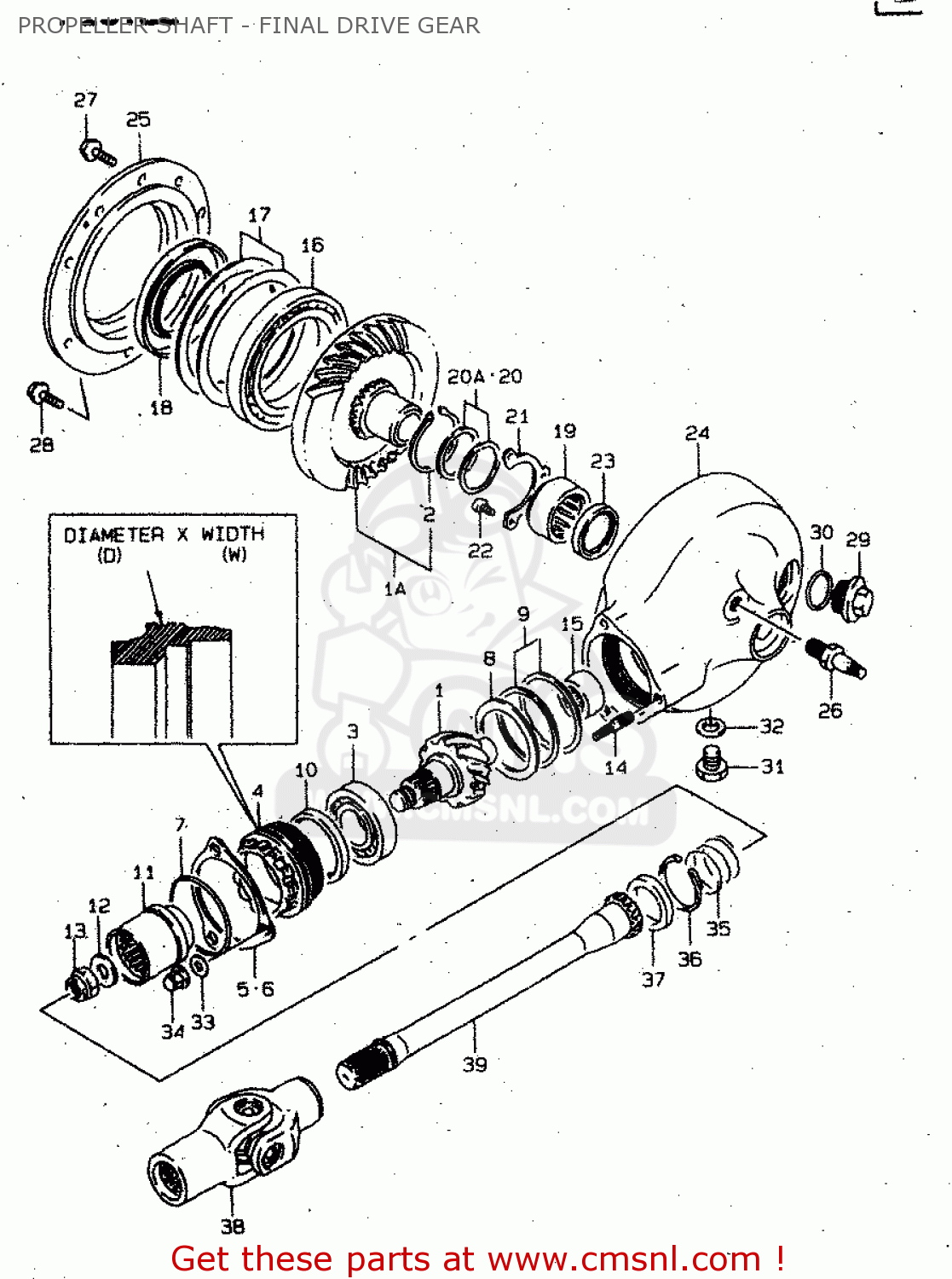

GEAR & CASE SET,FINAL BEVEL
1
GEAR,FINAL DRIVE BEVEL
1A
GEAR,FINAL DRIVEN BEVEL
3
BEARING(28X68X18)
4
STOPPER,FINAL DRIVE BEARING
5
PLATE,BEARING STOPPER
6
PLATE,BEARING STOPPER
7
O RING(D:3.1,ID:63.9)
8
WASHER(54X68X1.5)
9
SHIM SET,FINAL DRIVE GEAR
10
SEAL,OIL
11
COUPLING,FINAL DRIVE GEAR
12
WASHER(16X29X4)
13
NUT
14
STUD 10X25
15
BEARING(20X34X18)
16
BEARING(85X130X14)
17
SHIM SET,FINAL DRIVEN GEAR
18
SEAL,OIL(70X110X14.7)
19
BEARING(35X48X23.7)
20
WASHER(35X46X0.95)
20A
SHIM SET,FINAL DRIVEN GEAR
21
RETAINER,FINAL DRIVEN GEAR BRG
22
SCREW
23
SEAL,OIL(35X43X5)
24
CASE,FINAL GEAR
25
CASE,FINAL GEAR BEARING
26
BOLT,STUD
27
BOLT
28
BOLT
29
PLUG,30X9
30
O RING(D:3.1,ID:26.4)
31
PLUG
32
GASKET(13.8X18.8X4.8) (NAS)
33
WASHER
34
NUT
35
SPRING
36
CIRCLIP
37
SEAL,OIL(30X40.5X5.5)
38
YOKE COMP,UNIVERSAL JOINT
39
SHAFT,PROPELLER
