BALANCER CHAIN

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

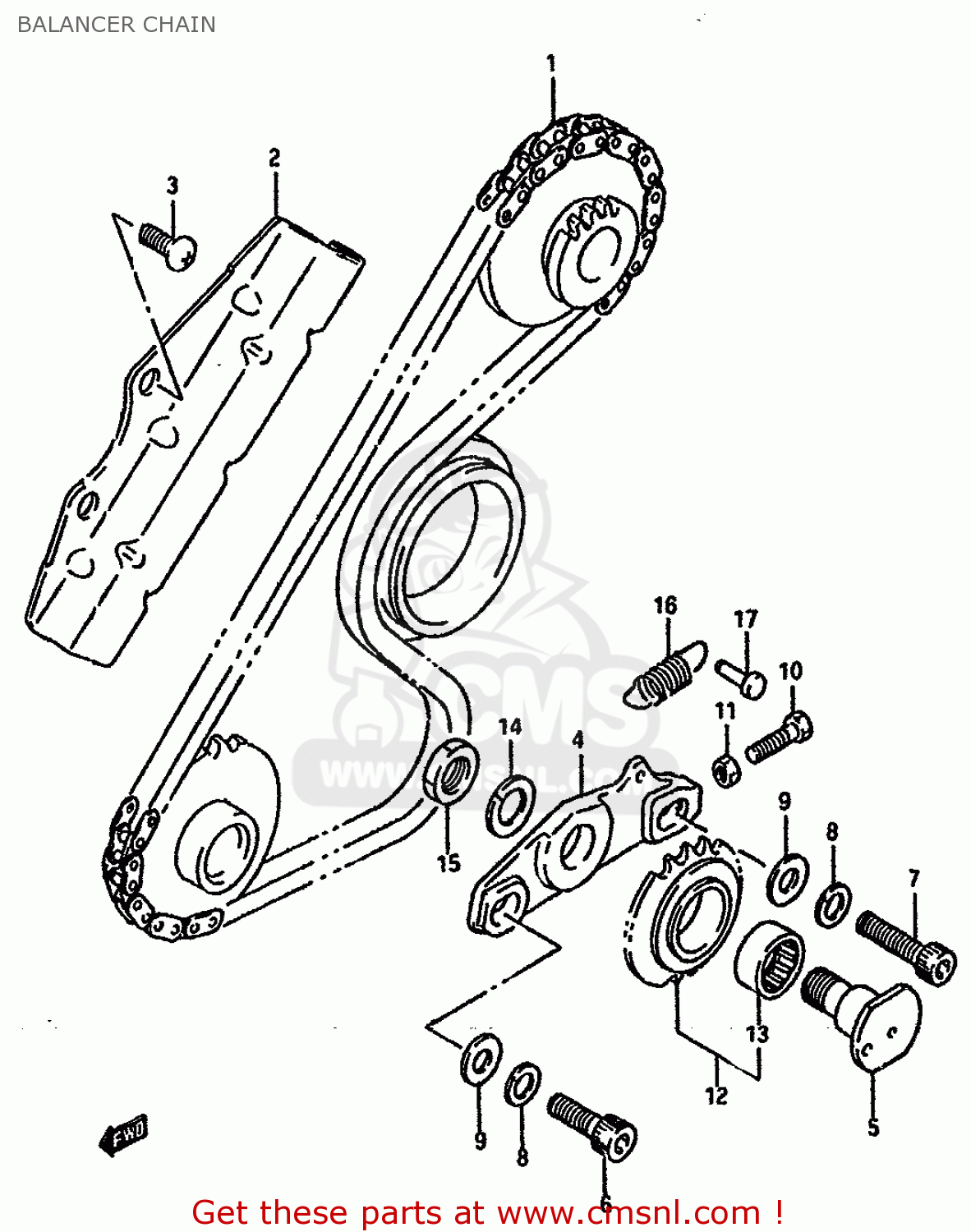

Balancer chain diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1267044B01
ref: 1

CHAIN,BALANCER

€ 82.00

1269544B00
ref: 2

GUIDE,BALANCER CHAIN

€ 30.50

0211206126
ref: 3

SCREW

€ 1.50

1268144B00
ref: 4

BRACKET, CHAIN TENSIONER

€ 51.00

1268214A01
ref: 5

SHAFT,BALANCER CHAIN TENSIONER

€ 29.00

0910608005
ref: 6

BOLT(8X22)

€ 2.00

0711008305
ref: 7

BOLT, REAR (8X30)

€ 3.00

0832121088
ref: 8

LOCK WASHER

€ 2.00

0832221088
ref: 9

WASHER

€ 2.00

0910005006
ref: 10

BOLT 5X20

€ 1.50

0831022058
ref: 11

NUT

€ 2.50

1268544B00
ref: 12

SPRKT,BALANCER CHAIN TENSIONER

€ 75.00

0926317007
ref: 13

BEARING(17X23X12)

€ 13.00

0832121128
ref: 14

WASHER,LOCK 12

€ 2.50

0914012021
ref: 15

NUT

€ 2.50

0944310035
ref: 16

SPRING

€ 2.50

0922304001
ref: 17
INCLUDED CRANKCASE S

RIVET

€ 1.50

BALANCER CHAIN

all assemblies
