FUEL TANK (MODEL K)

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

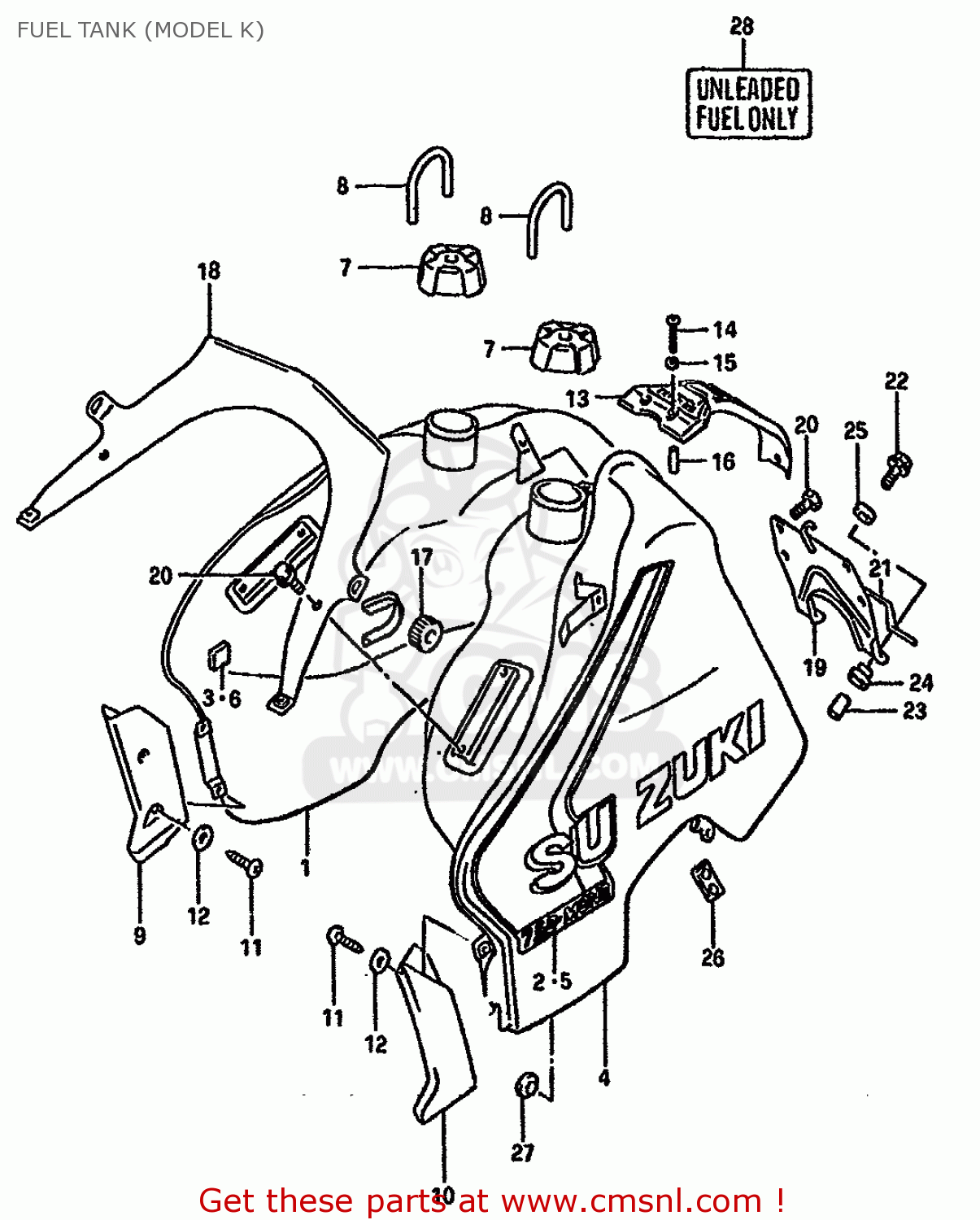

Fuel tank (model k) diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

FUEL TANK (MODEL K) DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FUEL TANK (MODEL K) DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
FUEL TANK (MODEL K) DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
4410044B4028V
ref: 1-1
TANK ASSY,FUEL RH (RED)
€ 516.00
1-2
4410044B8028V
ref: 1-2
E22
TANK ASSY,FUEL RH (RED)
4410044B8028V
€ 516.00
1-3
4410044B4038K
ref: 1-3
TANK,FUEL
€ 516.00
1-4
4410044B8038K
ref: 1-4
E22
TANK ASSY,FUEL RH (WHITE)
€ 516.00
2-1
6811544B002YG
ref: 2-1
FOR 28V
TAPE,FUEL TANK,R
6811544B002YG
€ 35.50
2-2
6811544B002YA
ref: 2-2
FOR 38K
TAPE,FUEL TANK,R
€ 25.50
3
4451444B00
ref: 3
CUSHION
€ 1.50
4-1
4410044B5028V
ref: 4-1
TANK ASSY,FUEL
4410044B5028V
€ 774.50
4-2
4410044B9028V
ref: 4-2
E22
TANK ASSY,FUEL LH (RED)
4410044B9028V
€ 774.50
4-3
4410044B5038K
ref: 4-3
TANK ASSY,FUEL LH (BLUE)
€ 774.50
4-4
4410044B9038K
ref: 4-4
E22
TANK ASSY,FUEL LH (BLUE)
€ 774.50
5-1
6811644B002YG
ref: 5-1
FOR 28V
TAPE,FUEL TANK
€ 25.50
5-2
6811644B002YA
ref: 5-2
FOR 38K
TAPE,FUEL TANK,L
€ 25.50
6
4451444B00
ref: 6
CUSHION
€ 1.50
7
4420044B00
ref: 7
CAP ASSY,FUEL TANK
4420044B00
€ 43.00
8
0935250823240
ref: 8
HOSE
€ 13.00
9-1
4451144B1028V
ref: 9-1
COVER,FUEL TANK FR,R
4451144B1028V
€ 37.50
9-2
4451144B1038K
ref: 9-2
COVER,FUEL TANK FR,R
€ 29.50
10-1
4451244B1028V
ref: 10-1
COVER,FUEL TANK FR,L
4451244B1028V
€ 22.00
10-2
4451244B1038K
ref: 10-2
COVER,FUEL TANK FR,L
4451244B1038K
€ 27.00
11
0214206125
ref: 11
SCREW 6X12
0214206125
€ 2.00
12
0832221064
ref: 12
WASHER
0832221064
€ 2.00
13
4451344B00
ref: 13
COVER,FUEL TANK CTR
4451344B00
€ 38.00
14
0913906046
ref: 14
SCREW (6X40)
€ 2.50
15
0916008107
ref: 15
WASHER
€ 2.00
16
0918006201
ref: 16
SPACER
€ 3.50
17
0932910021
ref: 17
CUSHION
0932910021
€ 6.00
18
4452144B00
ref: 18
BRACKET,FRONT
€ 35.50
19
4453044B00
ref: 19
BRACKET,REAR
4453044B00
€ 25.50
20
0151706108
ref: 20
BOLT
0151706108
€ 2.50
21
4511944B00
ref: 21
BRACKET,SEAT FRONT HOOK
4511944B00
€ 7.50
22
0151706307
ref: 22
BOLT
0151706307
€ 2.00
23
0918006072
ref: 23
SPACER
0918006072
€ 2.00
24
0932010020
ref: 24
CUSHION
0932010020
€ 4.00
25
0932014013
ref: 25
CUSHION
0932014013
€ 3.00
26
0932910007
ref: 26
CUSHION
0932910007
€ 3.00
27
0932110021
ref: 27
CUSHION
0932110021
€ 4.50
28
8693273060
ref: 28
MOEL J E75 (AUSTRALI
LABEL,FUEL CAUTION
8693273060
€ 4.00
27
4511944B00
ref: 27
BRACKET,SEAT FRONT HOOK
4511944B00
€ 7.50
28
0110706306
ref: 28
BOLT
0110706306
€ 2.50
29
0916006072
ref: 29
WASHER (6.5X24X1.6)
0916006072
€ 2.00
30
0918006072
ref: 30
SPACER
0918006072
€ 2.00
31
0932010020
ref: 31
CUSHION
0932010020
€ 4.00
32
0932014013
ref: 32
CUSHION
0932014013
€ 3.00
33
0932910007
ref: 33
CUSHION
0932910007
€ 3.00
34
0932110021
ref: 34
CUSHION
0932110021
€ 4.50
35
8693273060
ref: 35
E75 (AUSTRALIA)
LABEL,FUEL CAUTION
8693273060
€ 4.00
