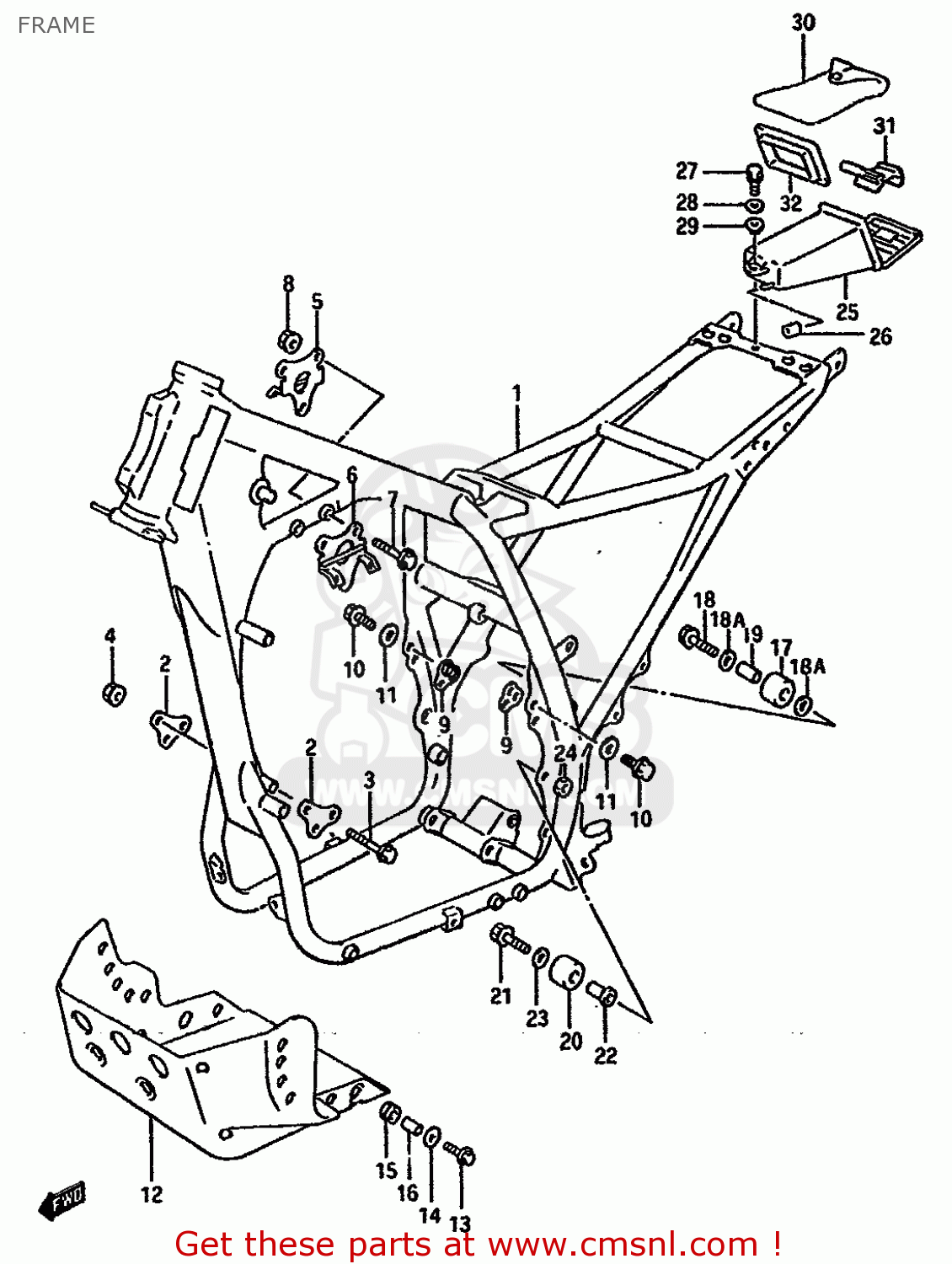

FRAME

ref

part #

description

quantity

1-1

4110044B0016L
ref: 1-1
MODEL J

FRAME (BLUE)

€ 1,494.00

1-2

4110044B2016L
ref: 1-2
MODEL J E22,E77

FRAME (BLUE)

€ 1,857.00

1-3

4110044B0034S
ref: 1-3
MODEL J

FRAME (BLUE)

€ 1,494.00

1-4

4110044B2034S
ref: 1-4
MODEL J E22,E77

FRAME (BLUE)

€ 1,857.00

1-5

4110044B4028W
ref: 1-5
MODEL K

FRAME (WHITE)

€ 1,104.50

1-6

4110044B5028W
ref: 1-6
MODEL K E15,E16,E17,

FRAME (WHITE)

€ 1,623.50

2-1

4191144B0016L
ref: 2-1
MODEL J

PLATE,FRONT (BLUE)

€ 9.50

2-2

4191144B0034S
ref: 2-2
MODEL J

PLATE,FRONT (BLUE)

€ 9.50

2-3

4191144B0028W
ref: 2-3
MODEL K

PLATE,FRONT (WHITE)

€ 9.50

3

0910308189
ref: 3

BOLT 8X70

€ 6.00

4

0831931085
ref: 4

NUT

€ 2.50

5-1

4189044B0016L
ref: 5-1
MODEL J

PLATE,UPPER RH (BLUE)

€ 19.00

5-2

4189044B0034S
ref: 5-2
MODEL J

PLATE,UPPER RH (BLUE)

€ 19.00

5-3

4189044B0028W
ref: 5-3
MODEL K

PLATE,UPPER RH (WHITE)

€ 19.00

6-1

4199044B0016L
ref: 6-1
MODEL J

PLATE,UPPER LH (BLUE)

€ 19.00

6-2

4199044B0034S
ref: 6-2
MODEL J

PLATE,UPPER LH (BLUE)

€ 19.00

6-3

4199044B0028W
ref: 6-3
MODEL K

PLATE,UPPER LH (WHITE)

€ 19.00

7

0151708508
ref: 7

BOLT

€ 3.50

8

0831931087
ref: 8

NUT

€ 2.50

9-1

4195044B0016L
ref: 9-1
MODEL J

PLATE,REAR (BLUE)

€ 9.50

9-2

4195044B0034S
ref: 9-2
MODEL J

PLATE,REAR (BLUE)

€ 9.50

9-3

4195044B0028W
ref: 9-3
MODEL K

PLATE,REAR (WHITE)

€ 9.50

10

0151708254
ref: 10

BOLT

€ 2.50

11

0832131084
ref: 11

LOCK WASHER

€ 2.50

12-1

4251144B0030H
ref: 12-1
MODEL J

PROTECTOR,ENGINE

€ 258.50

12-2

4251144B1028V
ref: 12-2
MODEL K

PROTECTOR,ENGINE (RED)

€ 258.50

12-3

4251144B1038K
ref: 12-3
MODEL K

PROTECTOR,ENGINE (BLUE)

€ 258.50

13-1

0110706207
ref: 13-1
MODEL J

BOLT

€ 2.00

13-2

0911606010
ref: 13-2
MODEL K

BOLT(6X20)

€ 2.00

14

0916006007
ref: 14
MODEL J

WASHER

€ 2.00

15

0932009016
ref: 15

CUSHION

€ 2.50

16

0918006011
ref: 16

SPACER (6.1X9X9)

€ 2.00

17

4391101B10
ref: 17

ROLLER,CHAIN CONTROL

€ 14.50

18

0910308083
ref: 18

BOLT(8X41)

€ 3.50

18A

0821108221
ref: 18A

WASHER

€ 2.50

19

0918008136
ref: 19

SPACER (8.6X13.8X28)

€ 9.00

20

4391101B10
ref: 20

ROLLER,CHAIN CONTROL

€ 14.50

21

0910310197
ref: 21

BOLT(10X52)

€ 5.00

22

4391644B00
ref: 22

SPACER,CHAIN ROLLER, LWR

€ 11.50

23

0821110221
ref: 23

WASHER

€ 2.50

24

0831931105
ref: 24

NUT 10MM

€ 3.00

25

4743044B00
ref: 25

HOLDER TOOL

€ 24.00

26

0932905006
ref: 26

CUSHION

€ 2.00

27-1

0110706165
ref: 27-1
MODEL J

BOLT 6X16

€ 2.00

27-2

0113406165
ref: 27-2
MODEL K

BOLT

€ 2.50

28

0832121064
ref: 28
MODEL J

WASHER,LOCK

€ 2.00

29

0916906026
ref: 29

WASHER

€ 2.00

30

0980020012
ref: 30

TOOL ASSY

€ 55.00

31

0946200091
ref: 31

BAND

€ 7.50

32

4743744B00
ref: 32

CUSHION,TOOL HOLDER

€ 13.50
