FRONT FORK COVER

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

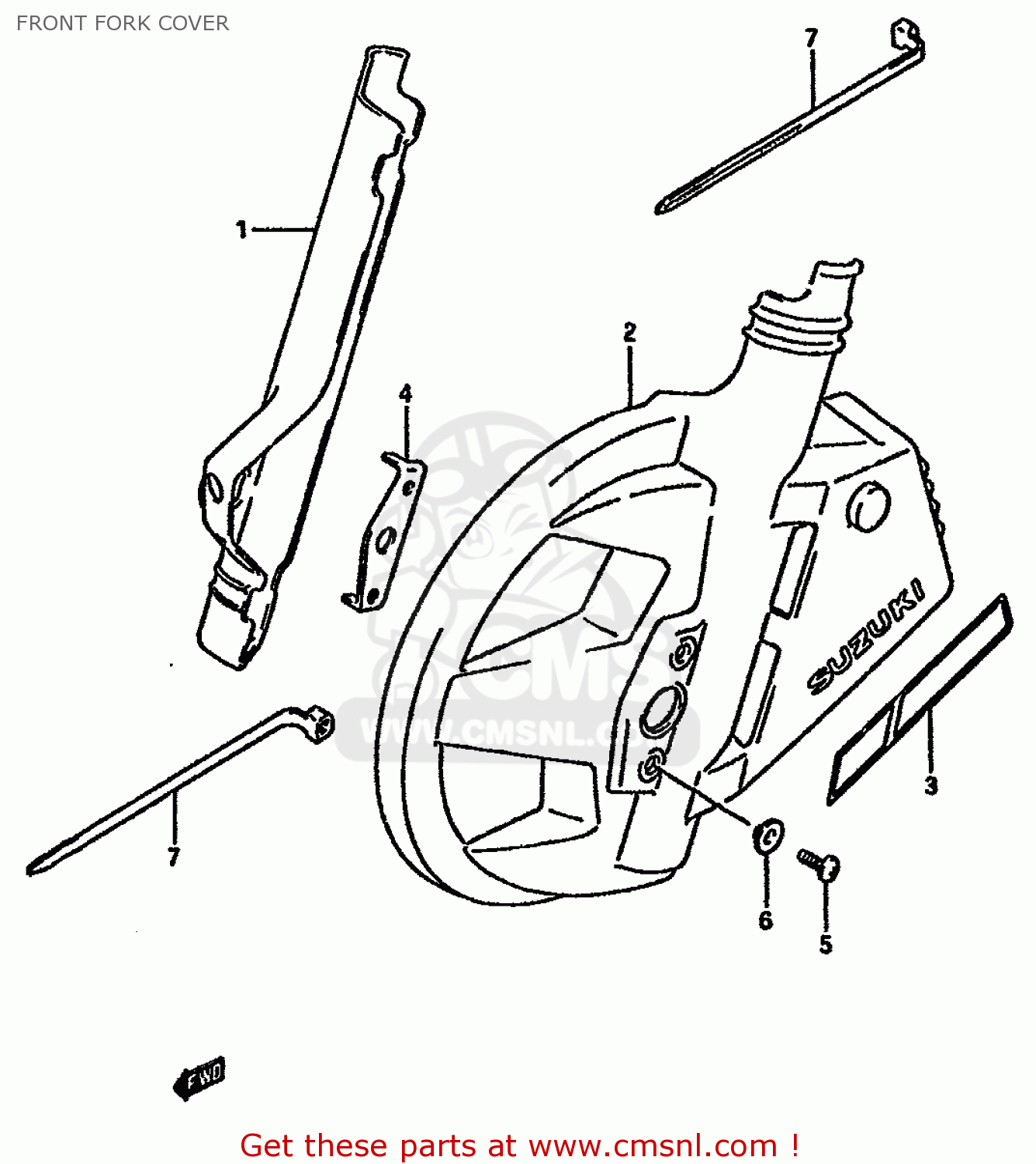

Front fork cover diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

5120144B0030H
ref: 1-1
MODEL J

PROTECTOR,FRONT FORK,RIGHT

€ 30.50

1-2

5120144B1028V
ref: 1-2
MODEL K

PROTECTOR,FR FORK,R

€ 73.50

1-3

5120144B1038K
ref: 1-3
MODEL K

PROTECTOR,FR FORK,R

€ 454.50

2-1

5120244B0030H
ref: 2-1
MODEL J

PROTECTOR

€ 91.00

2-2

5120244B1028V
ref: 2-2
MODEL K

PROTECTOR,FRONT FORK LH (RED)

€ 243.00

2-3

5120244B1038K
ref: 2-3
MODEL K

PROTECTOR,FRONT FORK LH (BLUE)

€ 256.00

3-1

6825044B002YD
ref: 3-1
MODEL K,FOR 28V

TAPE,PROTECTOR LH

€ 5.00

3-2

6825044B002YE
ref: 3-2
MODEL K,FOR 38K

TAPE,PROTECTOR LH

€ 4.50

5477044B00
ref: 4

PLATE,PROTECTOR SET

€ 6.50

0214206125
ref: 5

SCREW 6X12

€ 2.00

0916906041
ref: 6

WASHER

€ 2.00

0940725403
ref: 7

CLAMP

€ 4.00

FRONT FORK COVER

all assemblies
