CARBURETOR

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

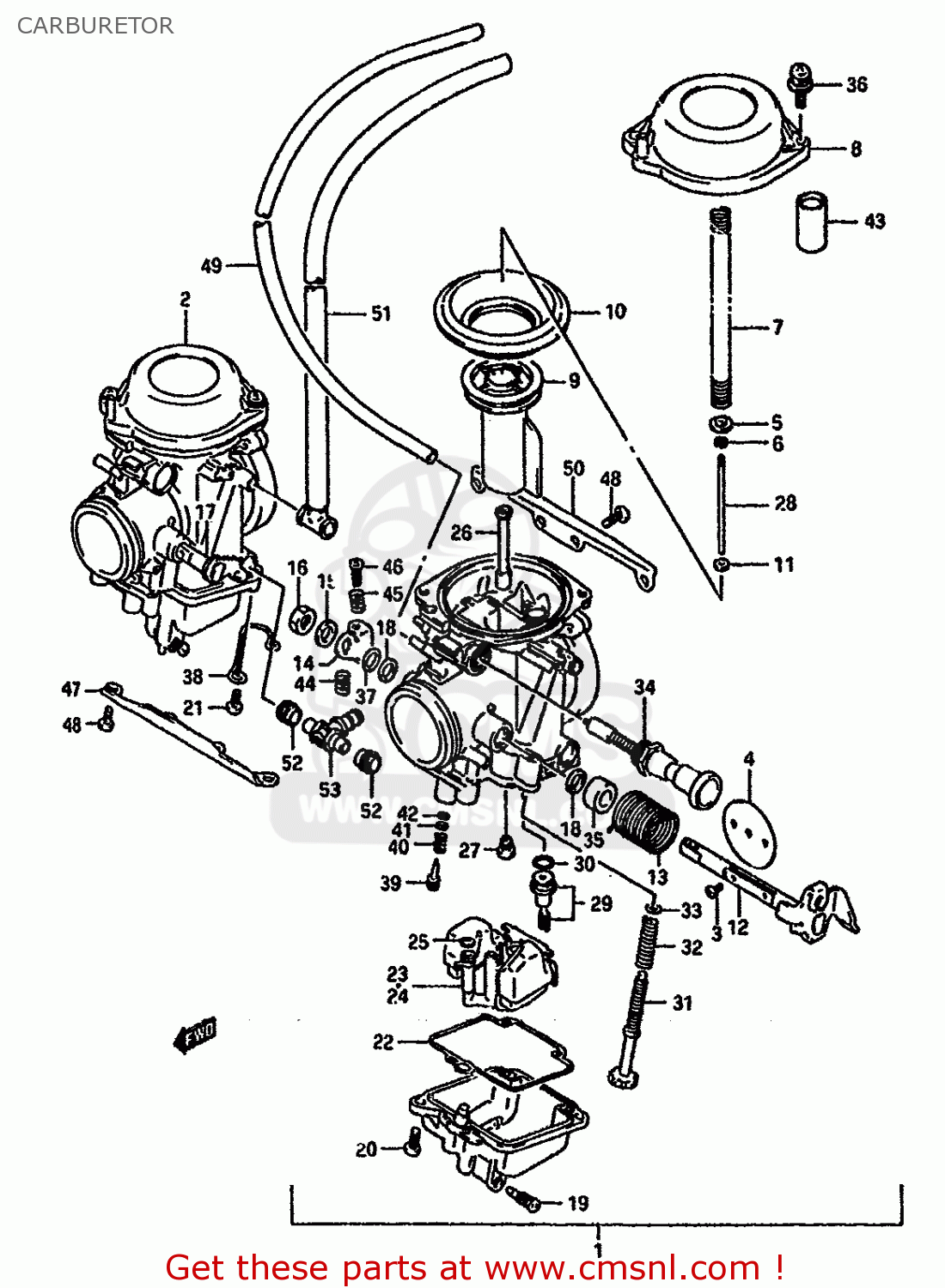

Carburetor diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CARBURETOR DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CARBURETOR DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CARBURETOR DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1320144B00
ref: 1-1
CARBURETOR ASSY,LH
€ 421.00
1-2
1320144B30
ref: 1-2
E18
CARBURETOR ASSY,LH
€ 0.00
1-3
1320144B60
ref: 1-3
E24 E75 (AUSTRALIA),
CARBURETOR ASSY,LH
€ 0.00
1-4
1320144B70
ref: 1-4
MODEL K E22
CARBURETOR ASSY,LH
€ 0.00
1-5
1320144B80
ref: 1-5
E39,DR750SUK E22
CARBURETOR ASSY,LH
€ 0.00
2-1
1320244B00
ref: 2-1
CARBURETOR ASSY,RH
€ 362.50
2-2
1320244B30
ref: 2-2
E18
CARBURETOR ASSY,RH
€ 0.00
2-3
1320244B60
ref: 2-3
E24 E75 (AUSTRALIA),
CARBURETOR ASSY,RH
€ 0.00
2-4
1320244B70
ref: 2-4
MODEL K E22
CARBURETOR ASSY,RH
€ 362.50
2-5
1320244B80
ref: 2-5
E39,DR750SUK E22
CARBURETOR ASSY,RH
€ 0.00
3
1360442A00
ref: 3
SCREW
€ 3.50
4
1355144B00
ref: 4
VALVE,THROTTLE (100)
€ 0.00
5
1338242A00
ref: 5
RING
1338242A00
€ 3.50
6
1339410010
ref: 6
CLIP
1339410010
€ 4.50
7
1341744B00
ref: 7
SPRING
1341744B00
€ 6.00
8
1350244B00
ref: 8
COVER,DIAPHRAGM
1350244B00
€ 36.00
9
1355144B10
ref: 9
VALVE PISTON
1355144B10
€ 74.50
10
1350744B00
ref: 10
DIAPHRAGM
1350744B00
€ 29.00
11
1338747010
ref: 11
RING
1338747010
€ 7.50
12
1355044B00
ref: 12
LH
SHAFT ASSY
€ 0.00
13
1357344B00
ref: 13
LH
SPRING
€ 7.00
14
1355344B00
ref: 14
LH
LEVER,THROTTLE
€ 7.00
15
0832131086
ref: 15
LH
WASHER,LOCK,8.
€ 2.50
16
0831022086
ref: 16
LH
NUT
€ 1.50
17
1355044B10
ref: 17
RH
SHAFT ASSEMBLY
€ 27.00
18
1355644B00
ref: 18
LH:2,RH:1
SEAL
1355644B00
€ 3.50
19
1324702340
ref: 19
PLUG,DRAIN
1324702340
€ 5.50
20
0211205126
ref: 20
LH:2,RH:1
SCREW 5X12
€ 1.50
21
0211205166
ref: 21
RH
SCREW
€ 2.00
22
1325844B00
ref: 22
GASKET,FLOAT CHAMBER (NAS)
1325844B00
€ 8.50
23
1324044B00
ref: 23
FLOAT ASSY
1324044B00
€ 53.50
24
1324044B10
ref: 24
FLOAT ASSY
1324044B10
€ 51.00
25
1337446710
ref: 25
LH
O RING
1337446710
€ 4.50
26
0949400595
ref: 26
JET,NEEDLE(O-4)
0949400595
€ 26.00
27
0949124016
ref: 27
JET,MAIN(120)
0949124016
€ 11.50
28
1338344B00
ref: 28
5E53-3
NEEDLE,JET
1338344B00
€ 15.00
29
1337044B00
ref: 29
VALVE ASSEMBLY,NEEDLE
1337044B00
€ 46.50
30
1337444080
ref: 30
O-RING,NEEDLE VALVE
1337444080
€ 6.00
31
1326728A00
ref: 31
LH
SCREW
€ 22.50
32
1326843410
ref: 32
LH
SPRING
€ 6.50
33
1342738300
ref: 33
LH
WASHER
1342738300
€ 1.50
34
1341142A20
ref: 34
LH
PLUNGER ASSY
1341142A20
€ 26.50
35
1357428A00
ref: 35
LH
RING
1357428A00
€ 4.50
36
1360234390
ref: 36
SCREW
1360234390
€ 2.50
37
1355747070
ref: 37
GASKET,THROTTLE SHAFT (NAS)
1355747070
€ 4.00
38
1369244B00
ref: 38
RH
CLIP
€ 4.00
39
1327947070
ref: 39
LH EXCEPT E18
SCREW,PILOT
1327947070
€ 11.50
40
1326847070
ref: 40
LH EXCEPT E18
SPRING
1326847070
€ 5.00
41
1329129900
ref: 41
LH EXCEPT E18
WASHER
1329129900
€ 2.00
42
1329529900
ref: 42
LH EXCEPT E18
O RING,PILOT AIR SCREW
1329529900
€ 4.00
43
1348544B00
ref: 43
E18,E24,E39 E75 (AUS
RING
€ 0.00
44
1326896110
ref: 44
SPRING,THROTTLE SCREW
€ 4.50
45
1327144B00
ref: 45
SPRING
1327144B00
€ 4.00
46
1326744B00
ref: 46
SCREW
1326744B00
€ 3.50
47
1362844B00
ref: 47
PLATE
€ 9.50
48
0211205126
ref: 48
SCREW 5X12
€ 1.50
49
1368300A40
ref: 49
L:1000-400
HOSE
€ 13.00
50
1362844B10
ref: 50
PLATE
€ 10.00
51-1
1368444B00
ref: 51-1
MODEL J
HOSE
€ 20.50
51-2
1368444B00
ref: 51-2
MODEL K
HOSE
€ 20.50
52
1367344B00
ref: 52
SEAL
1367344B00
€ 6.00
53
1368544B00
ref: 53
NIPPLE
1368544B00
€ 10.00
