HEADLAMP

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

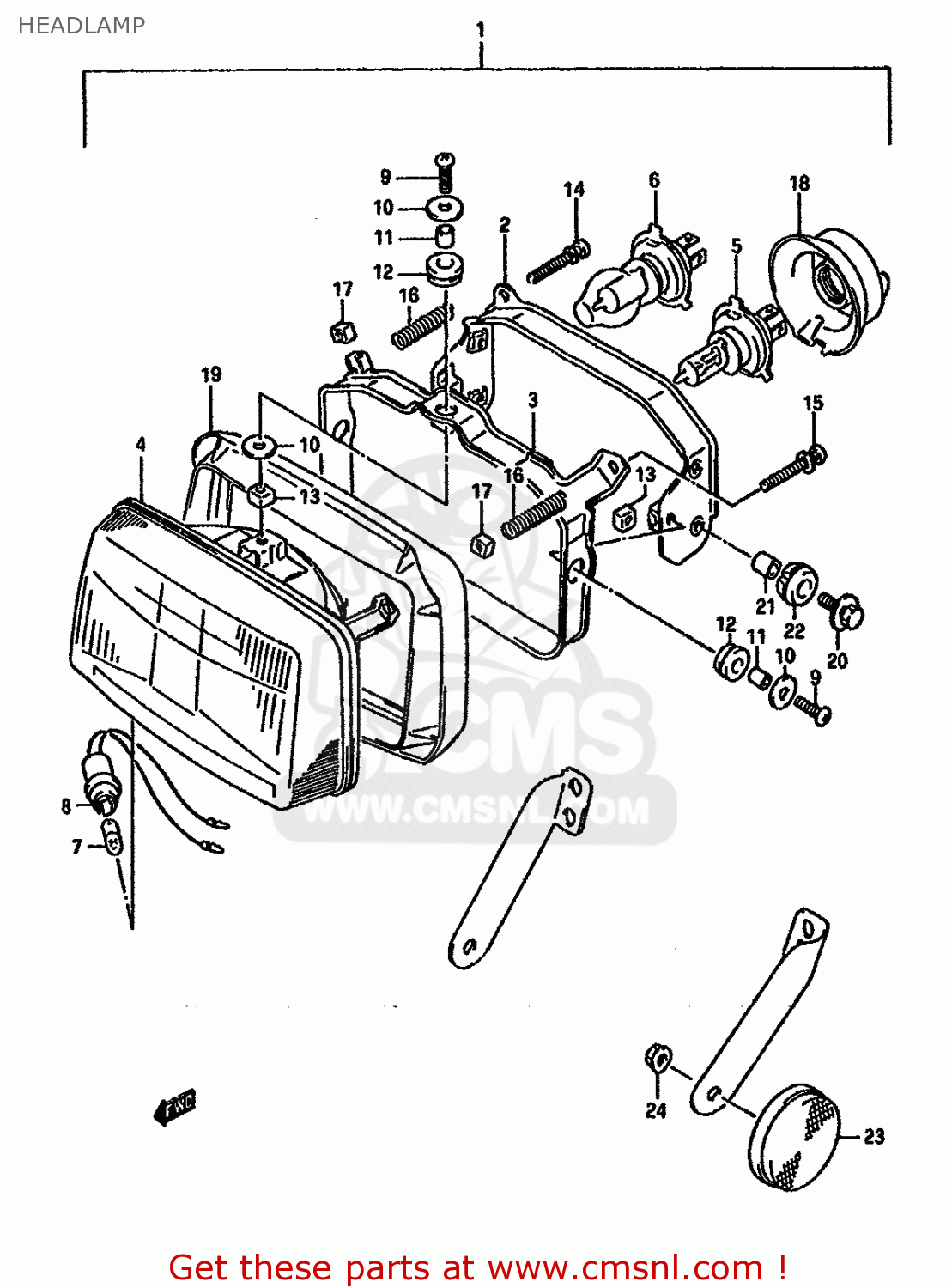

Headlamp diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

HEADLAMP DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
HEADLAMP DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
HEADLAMP DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
3510044B10999
ref: 1-1
E4
HEADLAMP ASSY
€ 271.00
1-2
3510044B00
ref: 1-2
E15,E16,E17,E18,E21,
HEADLAMP ASSY
3510044B00
€ 271.00
1-3
3510044B30
ref: 1-3
E1,E2,E24,E75
HEADLAMP ASSY
€ 271.00
2
3514144B00
ref: 2
HOUSING
3514144B00
€ 29.00
3
3513044B00
ref: 3
RING
3513044B00
€ 31.00
4-1
3512144B00
ref: 4-1
E4,E15,E16,E17,E18,E
LAMP,UNIT
3512144B00
€ 152.50
4-2
3512144B30
ref: 4-2
E1,E75
UNIT,LAMP
€ 160.00
5
0947112060
ref: 5
E18,E22,E34,E75,E77
BULB(12V60/55W,H4)
0947112060
€ 8.00
6
0947112061
ref: 6
E4,EXECUTED LOCALLY
BULB (12V, 60/55W, H4)
€ 0.00
7
0947112063
ref: 7
BULB(12V4W)
0947112063
€ 6.00
8
3611844B00
ref: 8
SOCKET
3611844B00
€ 13.00
9
3515144B20
ref: 9
SCREW (5X18)
€ 2.00
10
3513845230
ref: 10
WASHER
3513845230
€ 2.00
11
3513345230
ref: 11
SPACER
3513345230
€ 2.00
12
3513945230
ref: 12
CUSHION
3513945230
€ 1.50
13
3513545900
ref: 13
NUT
3513545900
€ 2.50
14
3515144B00
ref: 14
SCREW
€ 2.00
15
3515144B10
ref: 15
SCREW
€ 4.00
16
3515444B00
ref: 16
SPRING
€ 4.00
17
3513544B00
ref: 17
NUT
€ 4.00
18
3517301440
ref: 18
COVER,SOCKET
3517301440
€ 10.00
19
3512944B00
ref: 19
SHADE
3512944B00
€ 30.00
20
0911606011
ref: 20
BOLT 6X20
€ 2.00
21
0918006030
ref: 21
SPACER (6.8X10X10)
0918006030
€ 2.00
22
0932009018
ref: 22
CUSHION
0932009018
€ 2.00
23
3595014A00
ref: 23
E39,E77
REFLECTOR,REFLEX FR
3595014A00
€ 15.00
24
0831626058
ref: 24
E39,E77
NUT 5MM
€ 2.00
