BATTERY

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

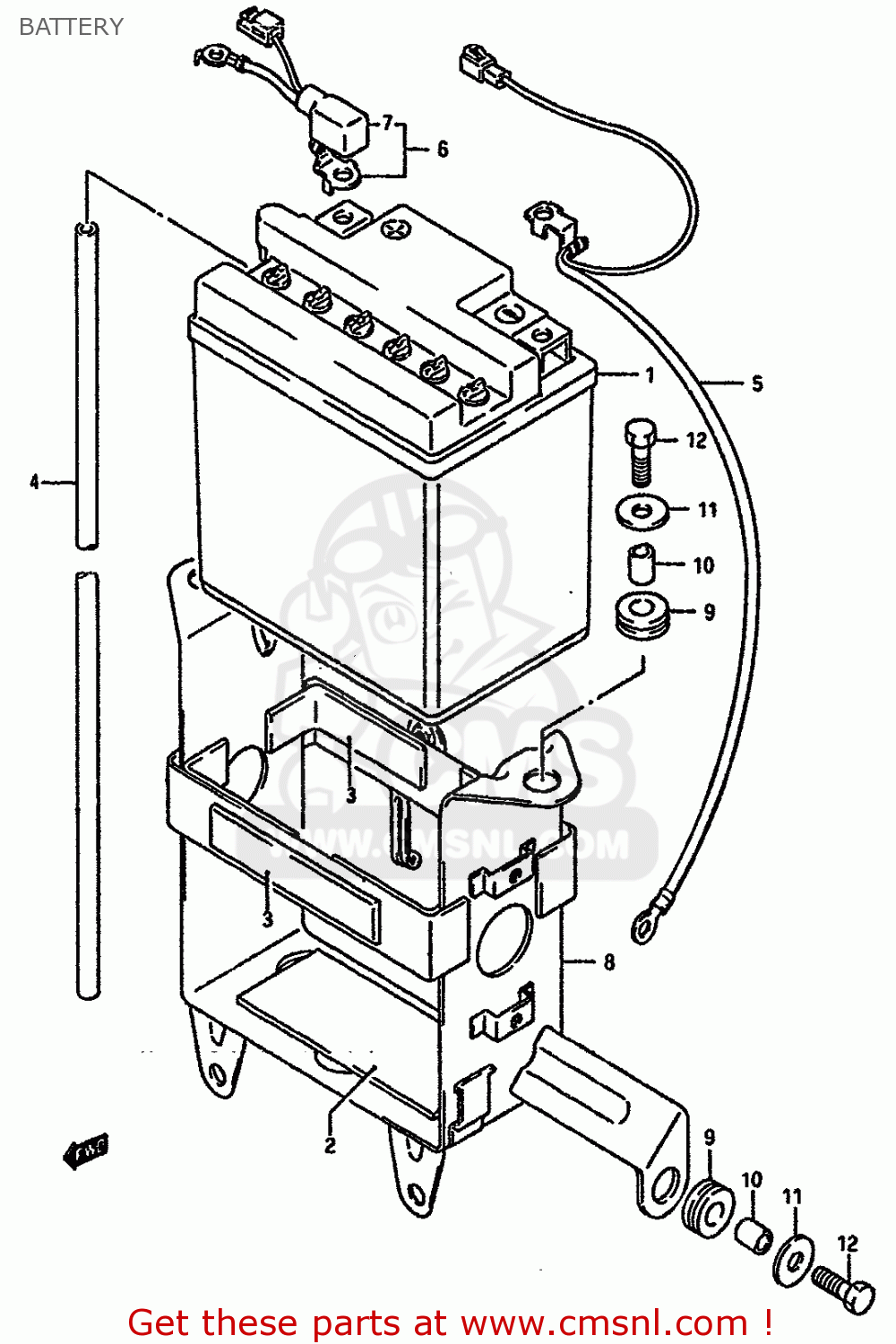

Battery diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

3361005A10
ref: 1

BATTERY(YB14L-B2,12V14.7AH)

€ 46.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3368014A00
ref: 4

HOSE,BATTERY EXHAUST

€ 4.50

3386044B00
ref: 5

LEAD WIRE,BATTERY (-)

€ 17.50

6-1

3387044B00
ref: 6-1
MODEL J

LEAD WIRE,BATTERY (+)

€ 25.00

6-2

3382044B00
ref: 6-2
MODEL K

LEAD WIRE,BATTERY (+)

€ 19.50

7-1

3362444B00
ref: 7-1
MODEL J

CAP,BATTERY TERMINAL

€ 6.00

7-2

3362435B00
ref: 7-2
MODEL K

CAP,BATTERY PLUS

€ 6.50

8-1

4154044B00
ref: 8-1
MODEL J

HOLDER,BATTERY

€ 0.00

8-2

4154044B10
ref: 8-2
MODEL K

HOLDER,BATTERY

€ 0.00

0932008021
ref: 9

CUSHION

€ 4.00

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

0916006027
ref: 11

WASHER (6.5X20X1.2)

€ 2.00

0110706207
ref: 12

BOLT

€ 2.00
