REAR WHEEL (MODEL K)

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

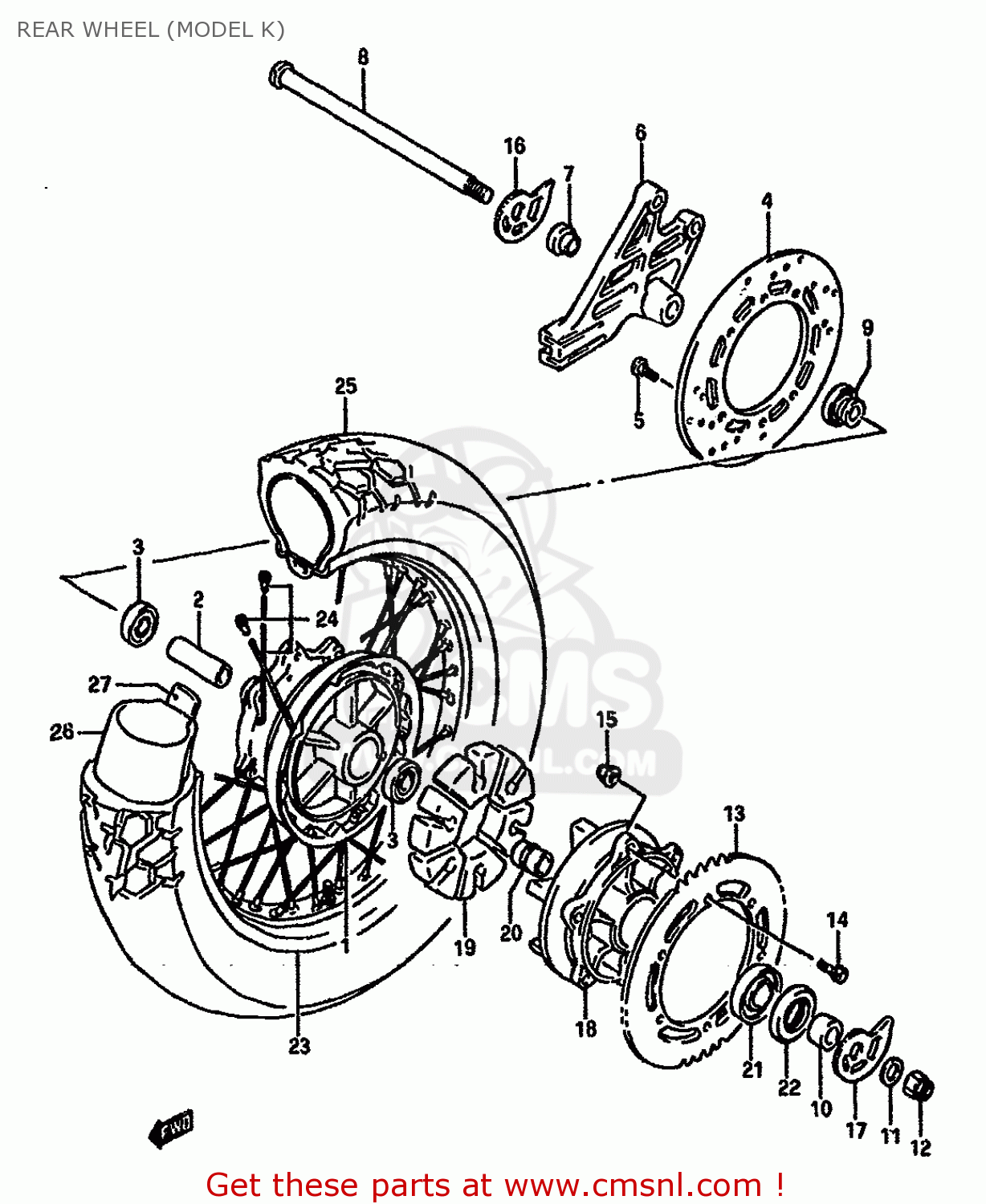

Rear wheel (model k) diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR WHEEL (MODEL K) DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR WHEEL (MODEL K) DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR WHEEL (MODEL K) DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
6411044B10
ref: 1
HUB COMP,REAR WHEEL
6411044B10
€ 358.00
2
0918017071
ref: 2
SPACER(17.5X25X78)
0918017071
€ 20.00
3
0812463037
ref: 3
BEARING
0812463037
€ 18.50
4
6921144B00
ref: 4
DISC,RR BRAKE
6921144B00
€ 370.00
5
5942103A01
ref: 5
BOLT,BRAKE DISC
5942103A01
€ 4.00
6
6972144B00
ref: 6
BRACKET,RR CALIPER
6972144B00
€ 103.00
7
0918017096
ref: 7
SPACER (17X21X10)
0918017096
€ 14.00
8
6471144B10
ref: 8
AXLE,RR
6471144B10
€ 55.00
9
6475038211
ref: 9
SPACER,RR AXLE,L
6475038211
€ 12.00
10
0918017090
ref: 10
SPACER(17X33X22.4)
0918017090
€ 14.50
11
0916017013
ref: 11
WASHER (17X30X3.2)
0916017013
€ 2.00
12
0915916002
ref: 12
NUT
0915916002
€ 5.00
13
6451144B10
ref: 13
SPROCKET,REAR (NT:48)
6451144B10
€ 59.50
14
0912008010
ref: 14
BOLT(8X30.5)
0912008010
€ 2.50
15
0831931087
ref: 15
NUT
0831931087
€ 2.50
16
6141144B00
ref: 16
ADJUSTER,CHAIN,RH
€ 15.00
17
6142144B00
ref: 17
ADJUSTER,CHAIN,LH
€ 13.50
18
6461144B10
ref: 18
DRUM,REAR SPROCKET
€ 127.50
19
6465144B01
ref: 19
ABSORBER,RR HUB SHOCK
6465144B01
€ 10.50
20
6473331300
ref: 20
RETAINER,RR SPROCKET DRUM
6473331300
€ 16.50
21
0926225073
ref: 21
BEARING(25X62X17)
0926225073
€ 21.50
22
0928533001
ref: 22
SEAL,OIL(33X62X7)
0928533001
€ 20.00
23
6531144B10
ref: 23
RIM,REAR WHEEL (17XMT2)
€ 377.50
24
6532044B10
ref: 24
SPOKE SET,RR
6532044B10
€ 79.00
25
6510044B10
ref: 25
BS
TIRE,REAR (130/80-17 65S)
€ 133.00
26
6520013A20
ref: 26
TUBE ASSEMBLY,WHEEL,INNER
€ 43.50
27
6526144B10
ref: 27
PROTECTOR,WHL INR TUBE
6526144B10
€ 4.50
28
0928533001
ref: 28
SEAL,OIL(33X62X7)
0928533001
€ 20.00
29
6531144B00
ref: 29
RIM,RR WHEEL(17XMT2.50)
6531144B00
€ 301.50
30
6532044B00
ref: 30
SPOKE SET
€ 133.50
31
6510044B00
ref: 31
IRC
TIRE
€ 133.00
32
6520044300
ref: 32
TUBE ASSEMBLY,WHEEL,INNER
6520044300
€ 43.50
33
6526149010
ref: 33
PROTECTOR,INNER TUBE
€ 2.00
