CRANKCASE COVER

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

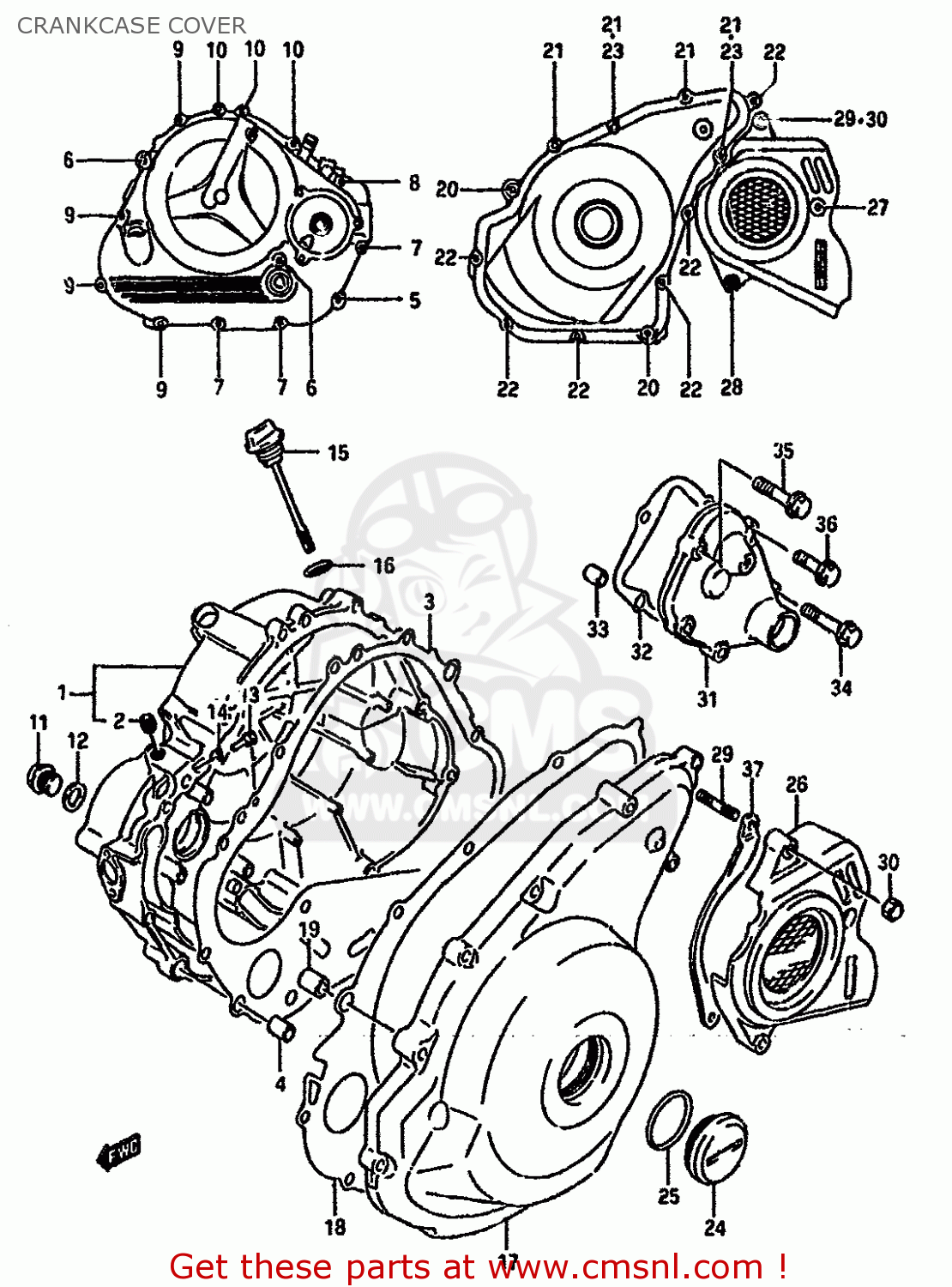

Crankcase cover diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CRANKCASE COVER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE COVER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CRANKCASE COVER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1134044B0034U
ref: 1-1
MODEL J
COVER,CLUTCH (BLUE)
1134044B0034U
€ 214.50
1-2
1134044B0036T
ref: 1-2
MODEL J
COVER,CLUTCH (ORANGE)
1134044B0036T
€ 214.50
1-3
1134044B0021R
ref: 1-3
MODEL K
COVER,CLUTCH (SILVER)
€ 214.50
2
0924605001
ref: 2
PLUG
0924605001
€ 3.50
3-1
1148244B00
ref: 3-1
GASKET,CLUTCH COVER (NAS)
1148244B00
€ 48.50
3-2
1148244B00H17
ref: 3-2
E17,E77 (SWEDEN)
GASKET,CLUTCH COVER (NA)
€ 48.50
4
0920613001
ref: 4
PIN
0920613001
€ 2.50
5
0154706605
ref: 5
BOLT (6X60)
€ 3.50
6
0154706505
ref: 6
BOLT 6X50
0154706505
€ 3.50
7
0154706454
ref: 7
BOLT
0154706454
€ 3.00
8
0154706404
ref: 8
BOLT 6X40
€ 3.00
9
0154706304
ref: 9
BOLT 6X30
0154706304
€ 2.50
10
0154706254
ref: 10
BOLT 6X25
0154706254
€ 2.50
11
0924714015
ref: 11
PLUG(14X12)
0924714015
€ 2.50
12
0916814004
ref: 12
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
13
0949336003
ref: 13
JET
€ 9.00
14
0928004004
ref: 14
O RING(D:1.2,ID:4)
0928004004
€ 2.00
15-1
1197044B00
ref: 15-1
MODEL J
GAUGE,OIL LEVEL
1197044B00
€ 19.50
15-2
1197044B10
ref: 15-2
MODEL K
GAUGE,OIL LEVEL
1197044B10
€ 19.50
16
0928017003
ref: 16
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
17-1
1135144B0034U
ref: 17-1
MODEL J
COVER,MAGNETO (BLUE)
€ 164.50
17-2
1135144B0036T
ref: 17-2
MODEL J
COVER,MAGNETO (ORANGE)
€ 164.50
17-3
1135144B0021R
ref: 17-3
MODEL K
COVER,MAGNETO (SILVER)
1135144B0021R
€ 164.50
18-1
1148344B00
ref: 18-1
GASKET,MAGNETO COVER (MCA)
1148344B00
€ 68.50
18-2
1148344B00H17
ref: 18-2
E17,E77 (SWEDEN)
GASKET,MAGNETO COVER (NA)
€ 68.50
19
0920613001
ref: 19
PIN
0920613001
€ 2.50
20
0154706454
ref: 20
BOLT
0154706454
€ 3.00
21
0154706354
ref: 21
BOLT 6X35
0154706354
€ 3.00
22
0154706254
ref: 22
BOLT 6X25
0154706254
€ 2.50
23
0916806023
ref: 23
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
24
0925936007
ref: 24
PLUG
0925936007
€ 10.50
25
0928033004
ref: 25
O RING(D:3.1,ID:32.7)
0928033004
€ 2.50
26-1
1136044B0034U
ref: 26-1
MODEL J
COVER,ENGINE SPROCKET (BLUE)
1136044B0034U
€ 51.50
26-2
1136044B0036T
ref: 26-2
MODEL J
COVER,ENGINE SPROCKET (ORANGE)
1136044B0036T
€ 51.50
26-3
1136044B0021R
ref: 26-3
MODEL K
COVER,ENGINE SPROCKET (SILVER)
€ 51.50
27
0154706304
ref: 27
BOLT 6X30
0154706304
€ 2.50
28
0154706254
ref: 28
BOLT 6X25
0154706254
€ 2.50
29
0910806107
ref: 29
BOLT,STUD
€ 4.00
30
0831321065
ref: 30
NUT
€ 2.00
31-1
1137144B0034U
ref: 31-1
MODEL J
COVER,GEARSHIF
1137144B0034U
€ 68.00
31-2
1137144B0036T
ref: 31-2
MODEL J
COVER,GEAR SHIFT (ORANGE)
1137144B0036T
€ 68.00
31-3
1137144B0021R
ref: 31-3
MODEL K
COVER,GEAR SHIFT (SILVER)
€ 47.00
32-1
1148544B00
ref: 32-1
GASKET,GEAR SHIFT COVER
€ 10.00
32-2
1148544B00H17
ref: 32-2
E17,E77 (SWEDEN)
GASKET,GEAR SHIFT COVER (NA)
1148544B00H17
€ 10.00
33
0421109129
ref: 33
PIN
0421109129
€ 2.00
34
0154706304
ref: 34
BOLT 6X30
0154706304
€ 2.50
35
0154706254
ref: 35
BOLT 6X25
0154706254
€ 2.50
36
0154706165
ref: 36
BOLT
0154706165
€ 2.50
37
2764144B01
ref: 37
PLATE,FR CHAIN GUIDE
2764144B01
€ 5.50
