REAR FENDER

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

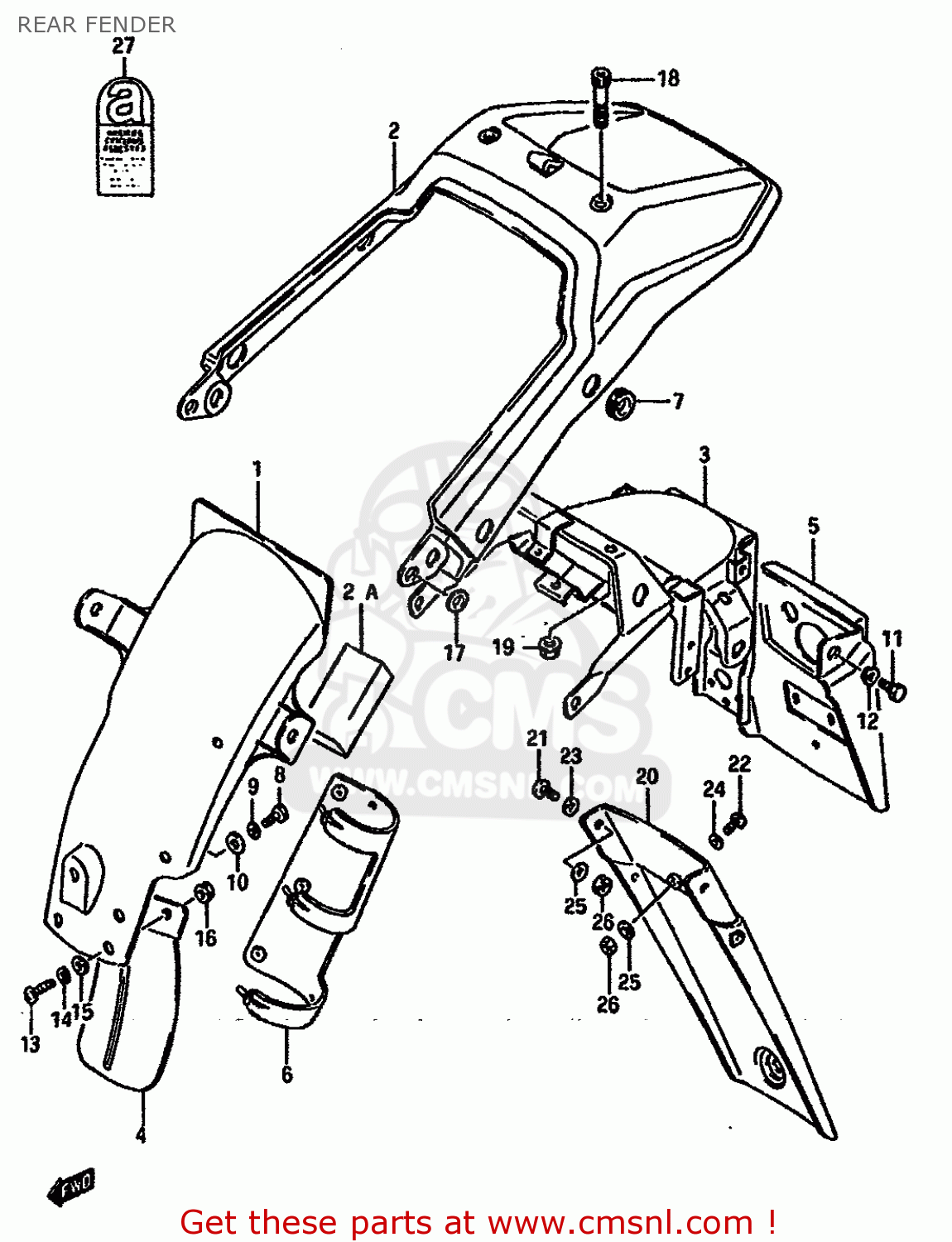

Rear fender diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

REAR FENDER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR FENDER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
REAR FENDER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
6311244B00
ref: 1
BODY,REAR FENDER FRONT
6311244B00
€ 25.50
2-1
6311344B0030H
ref: 2-1
MODEL J
BODY,REAR FENDER REAR (WHITE)
6311344B0030H
€ 163.50
2-2
6311344B2030H
ref: 2-2
MODEL J E22
BODY,REAR FENDER REAR (WHITE)
€ 163.50
2-3
6311344B3028V
ref: 2-3
MODEL K
BODY,REAR FENDER REAR (RED)
€ 163.50
2-4
6311344B3038K
ref: 2-4
MODEL K
BODY,REAR FENDER REAR (BLUE)
€ 163.50
2-5
6311344B4028V
ref: 2-5
MODEL K E22
BODY,REAR FENDER REAR (RED)
€ 163.50
2-6
6311344B4038K
ref: 2-6
MODEL K E22
BODY,REAR FENDER REAR (BLUE)
€ 163.50
2A
6319144B00
ref: 2A
MODEL K
DUST SEAL,REAR FENDER
€ 0.00
3
6312044B01
ref: 3
REINFORCEMENT
€ 104.00
4
6341244B00
ref: 4
GUARD,REAR FEN
6341244B00
€ 15.50
5-1
6331144B00
ref: 5-1
EXTENSION,RR FENDER
6331144B00
€ 29.50
5-2
6331144B10
ref: 5-2
E15,E16,E17,E18,E39,
EXTENSION,REAR FENDER
€ 25.50
5-3
6331144B20
ref: 5-3
E22
EXTENSION,REAR FENDER
6331144B20
€ 25.50
6
6341144B00
ref: 6
GUARD,MUD
€ 14.00
7
0930817002
ref: 7
GROMMET
€ 4.00
8
0110706165
ref: 8
BOLT 6X16
0110706165
€ 2.00
9
0832121064
ref: 9
WASHER,LOCK
0832121064
€ 2.00
10
0916906026
ref: 10
WASHER
0916906026
€ 2.00
11
0110706125
ref: 11
BOLT
€ 2.00
12
0916906034
ref: 12
WASHER
0916906034
€ 2.50
13
0211206167
ref: 13
SCREW
0211206167
€ 2.50
14
0832221067
ref: 14
WASHER
0832221067
€ 2.00
15
0916006015
ref: 15
WASHER
€ 1.50
16
0831931067
ref: 16
NUT
0831931067
€ 2.50
17
0916910010
ref: 17
WASHER
0916910010
€ 3.00
18
0711008408
ref: 18
BOLT
€ 3.50
19
0831931085
ref: 19
NUT
0831931085
€ 2.50
20-1
6333144B00
ref: 20-1
E15,E16,E17,E18
MUD GUARD,REAR FENDER
€ 29.00
20-2
6333144B20
ref: 20-2
E22
MUD GUARD,REAR FENDER
€ 22.00
20-3
6333144B30
ref: 20-3
E39,E77
MUD GUARD,REAR FENDER
€ 29.00
21
0214206125
ref: 21
E15,E16,E17,E18,E22,
SCREW 6X12
0214206125
€ 2.00
22
0912506055
ref: 22
E15,E16,E17,E18,E22,
SCREW(6X25)
0912506055
€ 3.00
23
0916906055
ref: 23
E15,E16,E17,E18,E22,
WASHER
0916906055
€ 2.00
24
0832121066
ref: 24
E15,E16,E17,E18,E22,
WASHER,LOCK
0832121066
€ 2.00
25
0916006019
ref: 25
E15,E16,E17,E18,E22,
WASHER(6.5X16X1.2)
0916006019
€ 1.50
26
0831022066
ref: 26
E15,E16,E17,E18,E22,
NUT
€ 2.00
27
1196782000
ref: 27
E2,E75 (U.K.)
LABEL,ASBESTOS WARNING
€ 2.00
