MUFFLER

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

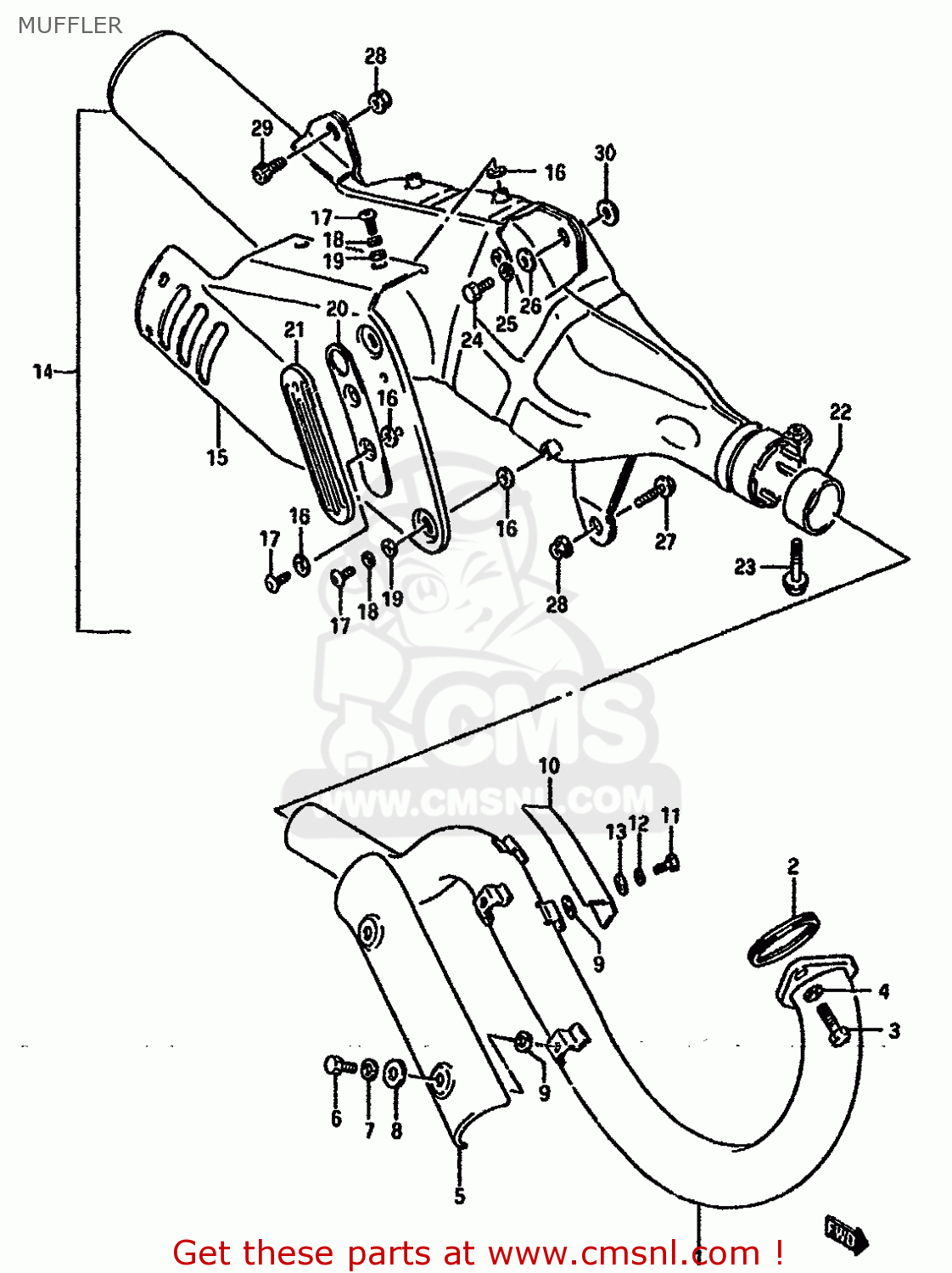

Muffler diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

MUFFLER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
MUFFLER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
MUFFLER DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
1415044B00
ref: 1
PIPE,EXHAUST
1415044B00
€ 149.50
2
1418144B00
ref: 2
GASKET,EXHAUST PIPE (NAS)
1418144B00
€ 8.00
3
0110708255
ref: 3
BOLT
€ 2.50
4
0832121084
ref: 4
WASHER,LOCK,8.
0832121084
€ 2.50
5
1418044B00
ref: 5
COVER,EXHAUST PIPE
1418044B00
€ 37.00
6
0110706125
ref: 6
BOLT
€ 2.00
7
0832121064
ref: 7
WASHER,LOCK
0832121064
€ 2.00
8
0916006038
ref: 8
WASHER
€ 2.00
9-1
0916806020
ref: 9-1
GASKET (NAS)
0916806020
€ 2.00
9-2
0916806120
ref: 9-2
E17,E77 (SWEDEN)
GASKET(5.8X13X1.4) (NAS)
0916806120
€ 2.00
10
1478244B00
ref: 10
PLATE,HEAT GUARD
1478244B00
€ 12.50
11
0110706165
ref: 11
BOLT 6X16
0110706165
€ 2.00
12
0832121064
ref: 12
WASHER,LOCK
0832121064
€ 2.00
13
0832221064
ref: 13
WASHER
0832221064
€ 2.00
14-1
1430144B30
ref: 14-1
MODEL J
MUFFLER ASSY J MODEL
€ 496.50
14-2
1430144B40
ref: 14-2
MODEL K
MUFFLER ASSY K MODEL
€ 496.50
14-3
1430144B60
ref: 14-3
MODEL K E39
MUFFLER ASSY
€ 2.00
15-1
1478044B01
ref: 15-1
MODEL J
COVER,MUFFLER
€ 78.50
15-2
1478044B10
ref: 15-2
MODEL K
COVER,MUFFLER
€ 78.50
16-1
0916806020
ref: 16-1
GASKET (NAS)
0916806020
€ 2.00
16-2
0916806120
ref: 16-2
E17,E77 (SWEDEN)
GASKET(5.8X13X1.4) (NAS)
0916806120
€ 2.00
17
0913906051
ref: 17
SCREW(6X10)
0913906051
€ 2.50
18
0832121064
ref: 18
WASHER,LOCK
0832121064
€ 2.00
19
0916006056
ref: 19
WASHER(6.5X18X1)
0916006056
€ 2.00
20
1479144B00
ref: 20
GUARD,MUFFLER COVER
1479144B00
€ 5.50
21
1479244B01
ref: 21
COVER,MUFFLER COVER GUARD
1479244B01
€ 6.00
22
1477144B00
ref: 22
CONNECTOR,MUFFLER
1477144B00
€ 19.50
23
0151708405
ref: 23
BOLT 8X40
€ 3.50
24
0110708255
ref: 24
BOLT
€ 2.50
25
0832121084
ref: 25
WASHER,LOCK,8.
0832121084
€ 2.50
26
0832211084
ref: 26
WASHER
0832211084
€ 1.50
27
0151708355
ref: 27
BOLT
€ 3.50
28
0831931085
ref: 28
NUT
0831931085
€ 2.50
29
0711008205
ref: 29
BOLT
€ 3.00
30
0916008103
ref: 30
WASHER(8X20X1)
0916008103
€ 2.00
