CYLINDER HEAD

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

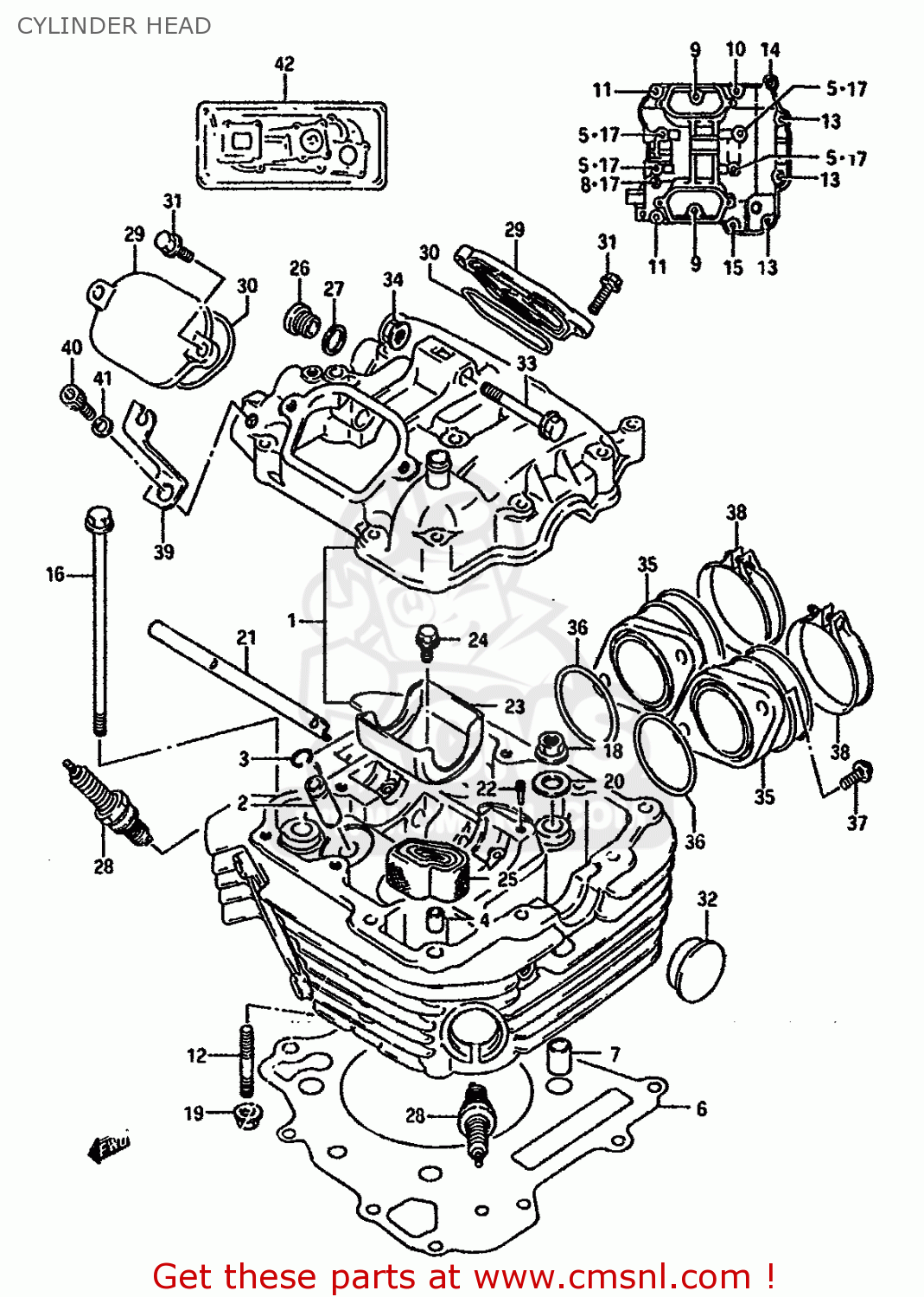

Cylinder head diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CYLINDER HEAD DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CYLINDER HEAD DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CYLINDER HEAD DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1-1
1110044B0034U
ref: 1-1
MODEL J
HEAD ASSY,CYLINDER (BLUE)
€ 947.50
1-2
1110044B0036T
ref: 1-2
MODEL J
HEAD ASSY,CYLINDER (ORANGE)
1110044B0036T
€ 947.50
1-3
1110044B0021R
ref: 1-3
MODEL K
HEAD ASSY,CYLINDER (SILVER)
€ 947.50
2
1111544B70
ref: 2
GUIDE,VALVE
1111544B70
€ 19.00
3
0938110003
ref: 3
RING,SNAP
0938110003
€ 2.50
4
0920608001
ref: 4
PIN(6.2X8X11)
0920608001
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
0910306102
€ 2.50
6
1114144B01
ref: 6
GASKET,CYLINDER HEAD (NAS)
1114144B01
€ 54.00
7
0920613001
ref: 7
PIN
0920613001
€ 2.50
8
0151706167
ref: 8
BOLT 6X16
0151706167
€ 1.50
9
0151706258
ref: 9
BOLT
0151706258
€ 2.50
10
0151706307
ref: 10
BOLT
0151706307
€ 2.00
11
0151706358
ref: 11
BOLT 6X35
0151706358
€ 2.50
12
0910808206
ref: 12
BOLT,STUD(8X31)
0910808206
€ 3.50
13
0910306033
ref: 13
BOLT(6X125)
0910306033
€ 3.50
14
0910306052
ref: 14
BOLT(6X115)
0910306052
€ 5.00
15
0910306067
ref: 15
BOLT(6X105)
0910306067
€ 3.50
16
0910308224
ref: 16
BOLT(8X155)
0910308224
€ 10.00
17
0916806023
ref: 17
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
18
0831616108
ref: 18
NUT
0831616108
€ 2.00
19
0831616085
ref: 19
NUT 8MM
0831616085
€ 3.00
20
0916010039
ref: 20
WASHER(10.5X22X2.3)
0916010039
€ 2.50
21
1113144B01
ref: 21
PIPE,OIL
1113144B01
€ 17.60
22
0913406012
ref: 22
SCREW (L:19.5)
0913406012
€ 3.00
23
1113544B00
ref: 23
PLATE, OIL CHAMBER
€ 8.50
24
0151706108
ref: 24
BOLT
0151706108
€ 2.50
25
1118644B00
ref: 25
SEPARATOR,OIL
€ 8.50
26
0924814005
ref: 26
PLUG,14X12
0924814005
€ 5.00
27
0916814004
ref: 27
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
28-1
0948200330
ref: 28-1
PLUG,SPARK(DPR9EA-9)
0948200330
€ 4.00
28-2
0948200334
ref: 28-2
OPT
PLUG,SPARK(DPR8EA-9)
€ 4.00
28-3
0948200328
ref: 28-3
MODEL J E34
SPARK PLUG DP9EA-9
0948200328
€ 4.00
28-4
0948200332
ref: 28-4
MODEL J E34 OPT
SPARK PLUG DP8EA-9
€ 4.00
29
1117544B00
ref: 29
CAP,INSPECTION
1117544B00
€ 14.50
30
1117744B00
ref: 30
O-RING,INSPECTION CAP
1117744B00
€ 6.00
31
0151706207
ref: 31
BOLT 6X20
€ 2.50
32
0924130004
ref: 32
PLUG(OD:30)
0924130004
€ 6.50
33
0910308082
ref: 33
BOLT 8X50
€ 7.00
34
0831931085
ref: 34
NUT
€ 2.50
35
1311044B00
ref: 35
PIPECOMP,INT
€ 36.50
36
0928040010
ref: 36
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
37
0215206205
ref: 37
SCREW
€ 2.00
38
0940252208
ref: 38
FROM 09402-52207
CLAMP
0940252208
€ 5.50
39
1294444B00
ref: 39
HOLDER,DECOMP CABLE
€ 0.00
40
0711008165
ref: 40
BOLT
€ 3.00
41
0832221085
ref: 41
WASHER
€ 1.50
42-1
1140144830
ref: 42-1
OPT
GASKET SET
€ 129.50
42-2
1140144830H17
ref: 42-2
E17,E77 (SWEDEN) OPT
GASKET SET (NA)
€ 129.50
