MAGNETO

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

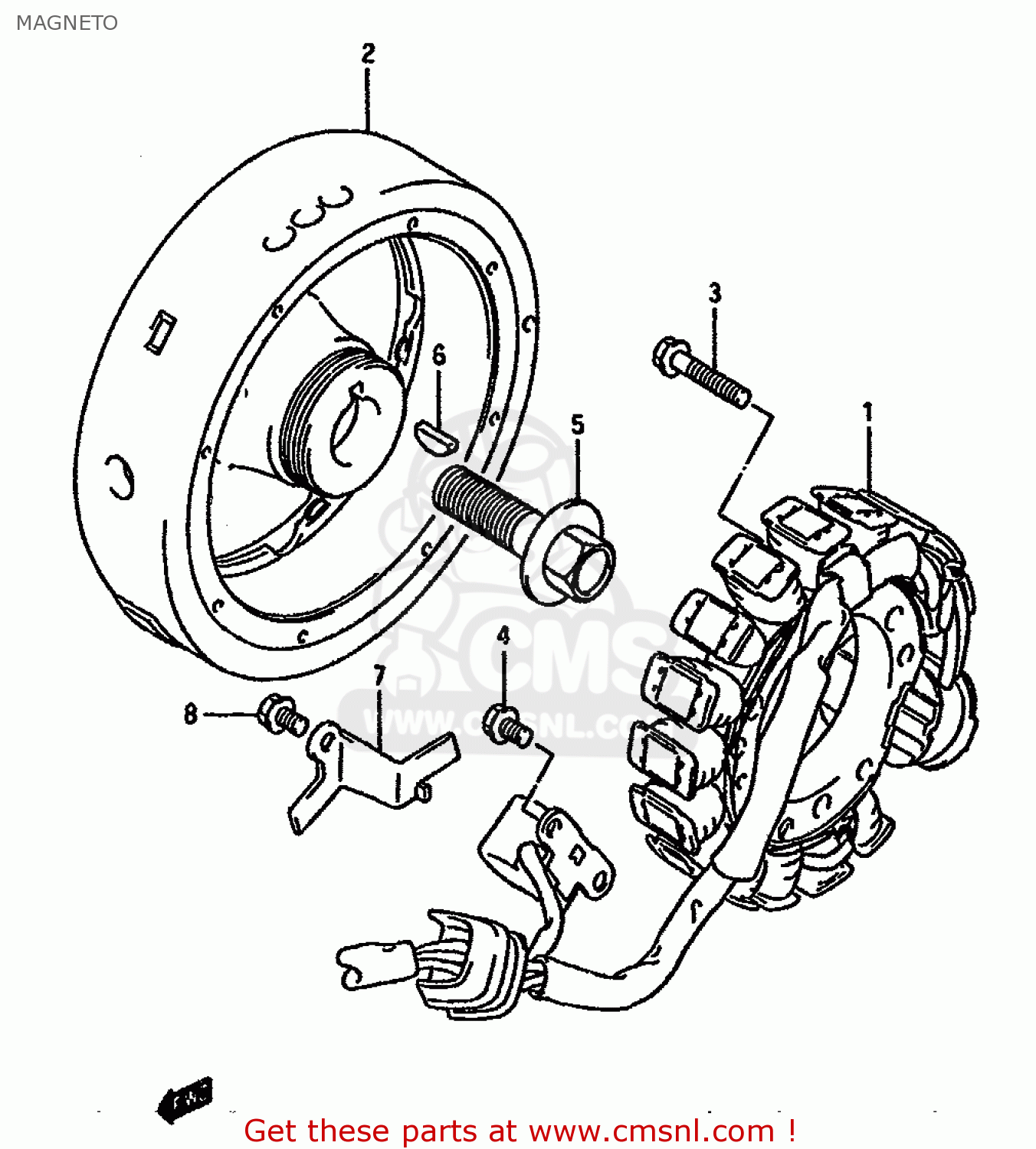

Magneto diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

MAGNETO DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

MAGNETO DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1

3210144B00
ref: 1

STATOR ASSY

€ 713.00

2

3210244B00
ref: 2

ROTOR

€ 902.00

3

0154706257
ref: 3

BOLT

€ 2.50

4

0154705107
ref: 4

BOLT

€ 1.50

5

0910314001
ref: 5

BOLT(14X43)

€ 7.00

6

0942005007
ref: 6

KEY

€ 3.00

7

3237144B00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.00

8

0154705107
ref: 8

BOLT

€ 1.50
