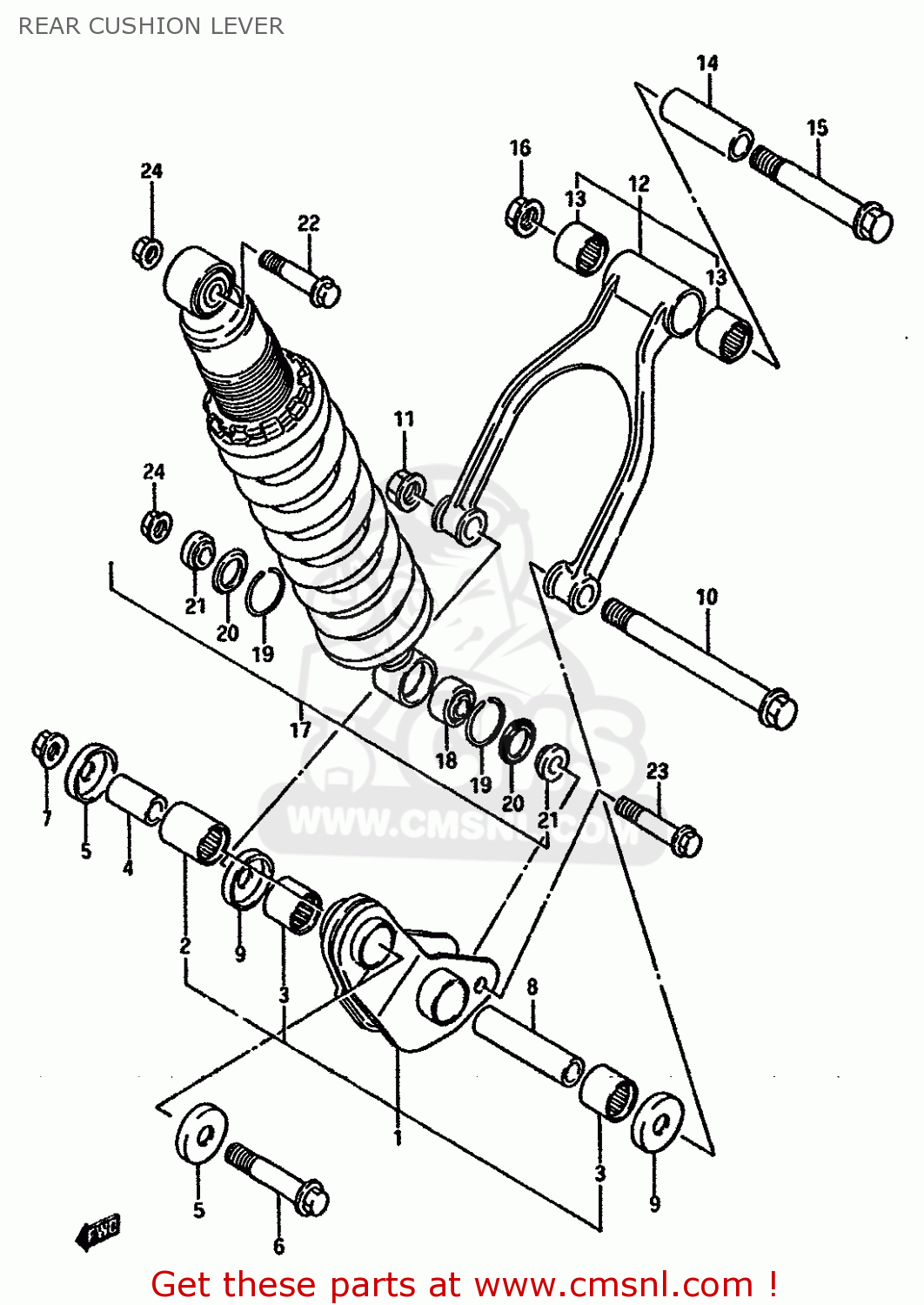

REAR CUSHION LEVER

ref

part #

description

quantity

1

6260044810
ref: 1

LEVER SET, REAR CUSHION

€ 154.50

2

0926320073
ref: 2

BEARING(20X27X30)

€ 24.50

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6231744B00
ref: 4

SPACER,RR CUSHION LEVER FR

€ 14.00

5

6262444B00
ref: 5

SEAL,RR CUSHION LEVER FR DUST

€ 8.50

6

6265800B20
ref: 6

BOLT,RR CUSHION LEVER FR

€ 8.50

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8

0918014013
ref: 8

SPACER (14X20X78)

€ 20.00

9

6262444B10
ref: 9

SEAL,RR CUSHION LEVER CTR DUST

€ 19.50

10

6262244B00
ref: 10

BOLT,RR CUSHION ROD LWR

€ 17.00

11

0831931148
ref: 11

NUT

€ 9.00

12

6260044820
ref: 12

LEVER SET,REAR CUSHION

€ 211.50

13

0926320071
ref: 13

BEARING(20X27X23.5)

€ 21.50

14

0918014015
ref: 14

SPACER (14X20X63)

€ 14.50

15

6262144B00
ref: 15

BOLT,RR CUSHION ROD UPR

€ 14.00

16

0831931148
ref: 16

NUT

€ 9.00

17-1

6210044B0028W
ref: 17-1
MODEL J

ABSORBER ASSY,REAR SHOCK (WHITE)

€ 812.00

17-2

6210044B0128W
ref: 17-2
MODEL K

ABSORBER ASSY,REAR SHOCK (WHITE)

€ 812.00

18

6217543400
ref: 18

BEARING,REAR SHOCK ABSORBER

€ 66.00

19

6227714200
ref: 19

RING

€ 1.50

20

6222614520
ref: 20

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

21

6268414520
ref: 21

COLLAR

€ 7.00

22

0910310064
ref: 22

BOLT(10X50)

€ 4.50

23

0910310101
ref: 23

BOLT(10X54)

€ 3.00

24

0831931107
ref: 24

NUT

€ 3.00
