RIGHT HANDLE SWITCH

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

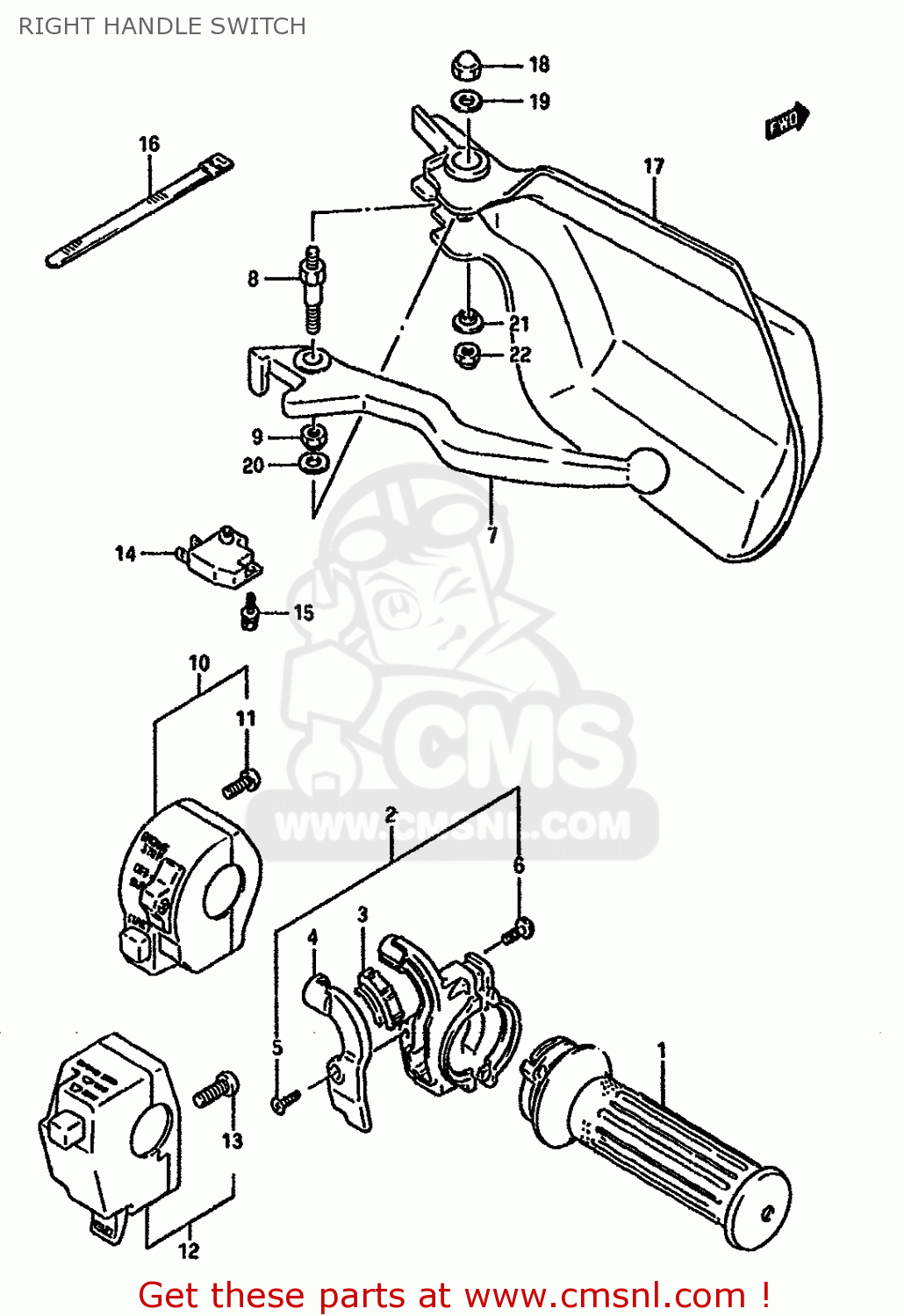

Right handle switch diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

RIGHT HANDLE SWITCH DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
RIGHT HANDLE SWITCH DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
RIGHT HANDLE SWITCH DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
5711013610
ref: 1
GRIP ASSY,THROTTLE
5711013610
€ 22.50
2
5710028B00
ref: 2
CASE ASSEMBLY,THROTTLE
€ 34.00
3
5712213600
ref: 3
GUIDE PIECE,THROTTLE
5712213600
€ 7.50
4
5712913601
ref: 4
COVER,THROTTLE CASE
5712913601
€ 7.00
5
0213204105
ref: 5
SCREW 4X10
€ 2.50
6
0211205165
ref: 6
SCREW
0211205165
€ 2.00
7
5742113001
ref: 7
LEVER,BRAKE
5742113001
€ 18.00
8
5743115A00
ref: 8
BOLT,BRAKE LEVER PIVOT
5743115A00
€ 10.00
9
0831921065
ref: 9
NUT
0831921065
€ 2.50
10
3720044B00
ref: 10
MODEL J
SWITCH ASSY,HANDLE RH
3720044B00
€ 67.50
11
0211204205
ref: 11
SCREW
€ 1.00
12
3720044B30
ref: 12
MODEL K
SWITCH ASSY,HANDLE RH
€ 115.00
13
0211205256
ref: 13
SCREW
€ 1.50
14
5746017C00
ref: 14
SWITCH ASSEMBLY,STOP
5746017C00
€ 32.50
15
5746517C00
ref: 15
SCREW
5746517C00
€ 1.50
16
0940712402
ref: 16
CLAMP(L:120)
0940712402
€ 3.00
17-1
5734115A0137F
ref: 17-1
MODEL J
GUARD,KNUCKLE RH (ORANGE)
5734115A0137F
€ 25.00
17-2
5734115A0134S
ref: 17-2
MODEL J
GUARD,KNUCKLE RH (BLUE)
5734115A0134S
€ 16.00
17-3
5734115A0128V
ref: 17-3
MODEL K
GUARD,KNUCKLE RH (RED)
€ 96.00
17-4
5734115A0138K
ref: 17-4
MODEL K
GUARD,KNUCKLE RH (BLUE)
5734115A0138K
€ 58.00
18
0831311065
ref: 18
NUT 6MM
0831311065
€ 2.00
19
0916006102
ref: 19
WASHER (6.5X20X1.6)
€ 2.00
20
0916006019
ref: 20
WASHER(6.5X16X1.2)
0916006019
€ 1.50
21
0916906055
ref: 21
WASHER
0916906055
€ 2.00
22
0831921065
ref: 22
NUT
0831921065
€ 2.50
