CLUTCH

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

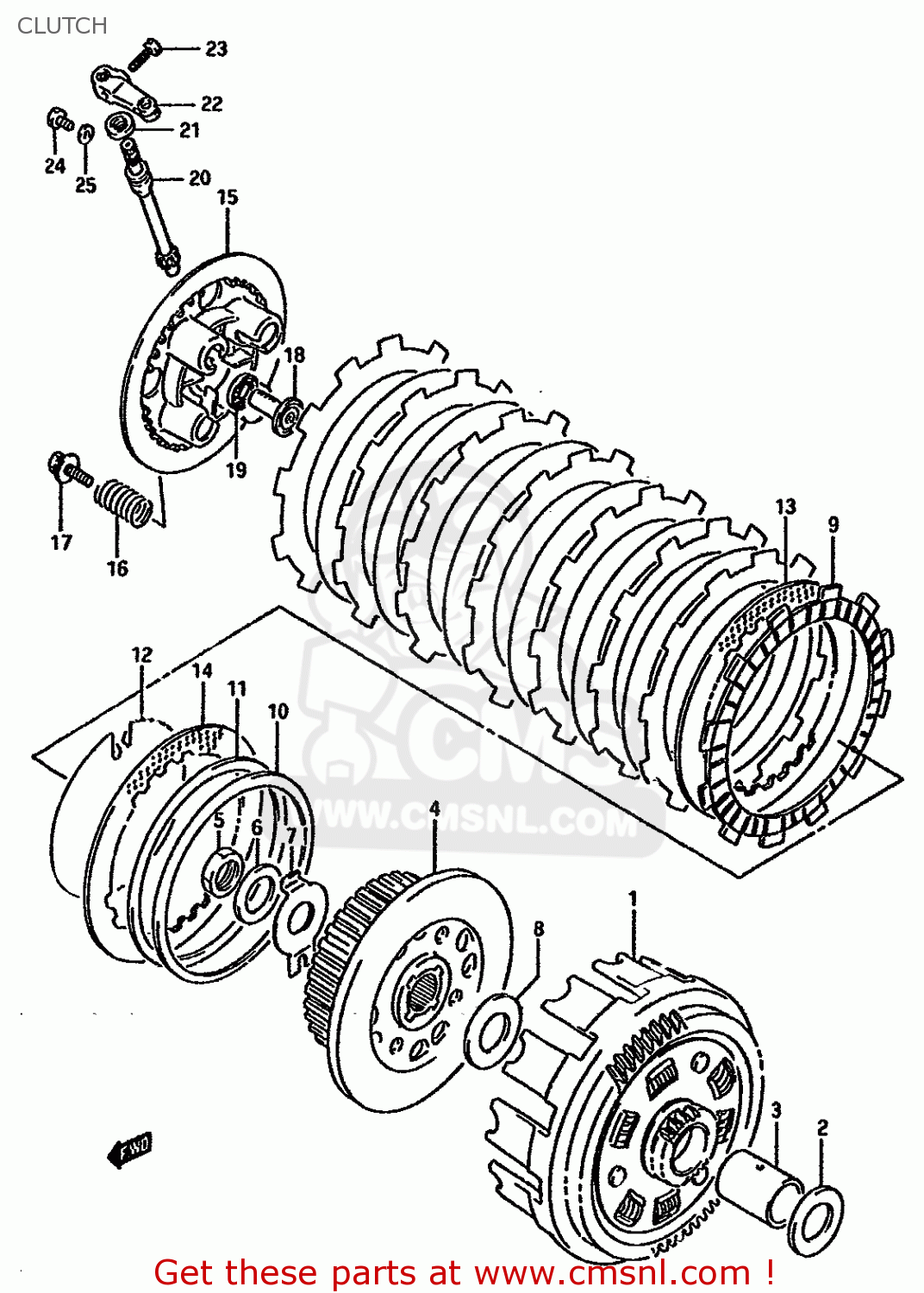

Clutch diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

CLUTCH DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CLUTCH DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
CLUTCH DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53
prices are in EUR
ref
part #
description
quantity
1
2120044B01
ref: 1
GEAR,PRIMARY DRIVEN (NT:62/20)
2120044B01
€ 293.00
2
0916022067
ref: 2
WASHER(22X38X2)
0916022067
€ 10.50
3
0918022040
ref: 3
SPACER
0918022040
€ 18.00
4
2141044B00
ref: 4
HUB,CLUTCH SLEEVE
2141044B00
€ 95.50
5
0914020002
ref: 5
NUT (20MM)
0914020002
€ 3.50
6
0916420002
ref: 6
WASHER
0916420002
€ 3.50
7
0916920005
ref: 7
WASHER
0916920005
€ 2.50
8
0916022068
ref: 8
WASHER(22X44X2)
0916022068
€ 9.00
9
2144149200
ref: 9
PLATE,CLUTCH DRIVE (MCA)
2144149200
€ 16.00
10
2147149100
ref: 10
SEAT,WAVE WASHER
2147149100
€ 8.00
11
0916400003
ref: 11
WASHER
0916400003
€ 9.00
12
2148145100
ref: 12
RING,STOPPER
2148145100
€ 5.00
13
2145144B00
ref: 13
T:1.6
PLATE,CLUTCH DRIVEN NO.1 (NAS)
2145144B00
€ 7.00
14
2145149200
ref: 14
T:2
PLATE,CLUTCH DRIVEN (NAS)
2145149200
€ 6.00
15
2146244B00
ref: 15
DISK,PRESSURE
2146244B00
€ 56.50
16
0944020017
ref: 16
SPRING
€ 5.00
17
0911606016
ref: 17
BOLT
€ 2.50
18
2316500B00
ref: 18
RACK,CLUTCH RELEASE
2316500B00
€ 17.00
19
0926310002
ref: 19
BEARING(10X22X2.8)
0926310002
€ 8.50
20
2326144B00
ref: 20
PINION,CLUTCH RELEASE
€ 39.00
21
0928510004
ref: 21
SEAL,OIL(10X17X5)
0928510004
€ 3.50
22
2327144B00
ref: 22
ARM,CLUTCH RELEASE
€ 27.50
23
0110706167
ref: 23
BOLT
0110706167
€ 3.00
24
0913506002
ref: 24
BOLT
0913506002
€ 2.50
25
0916806004
ref: 25
GASKET(6.2X11X1).2 (NAS)
0916806004
€ 1.50
