FUEL COCK

DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

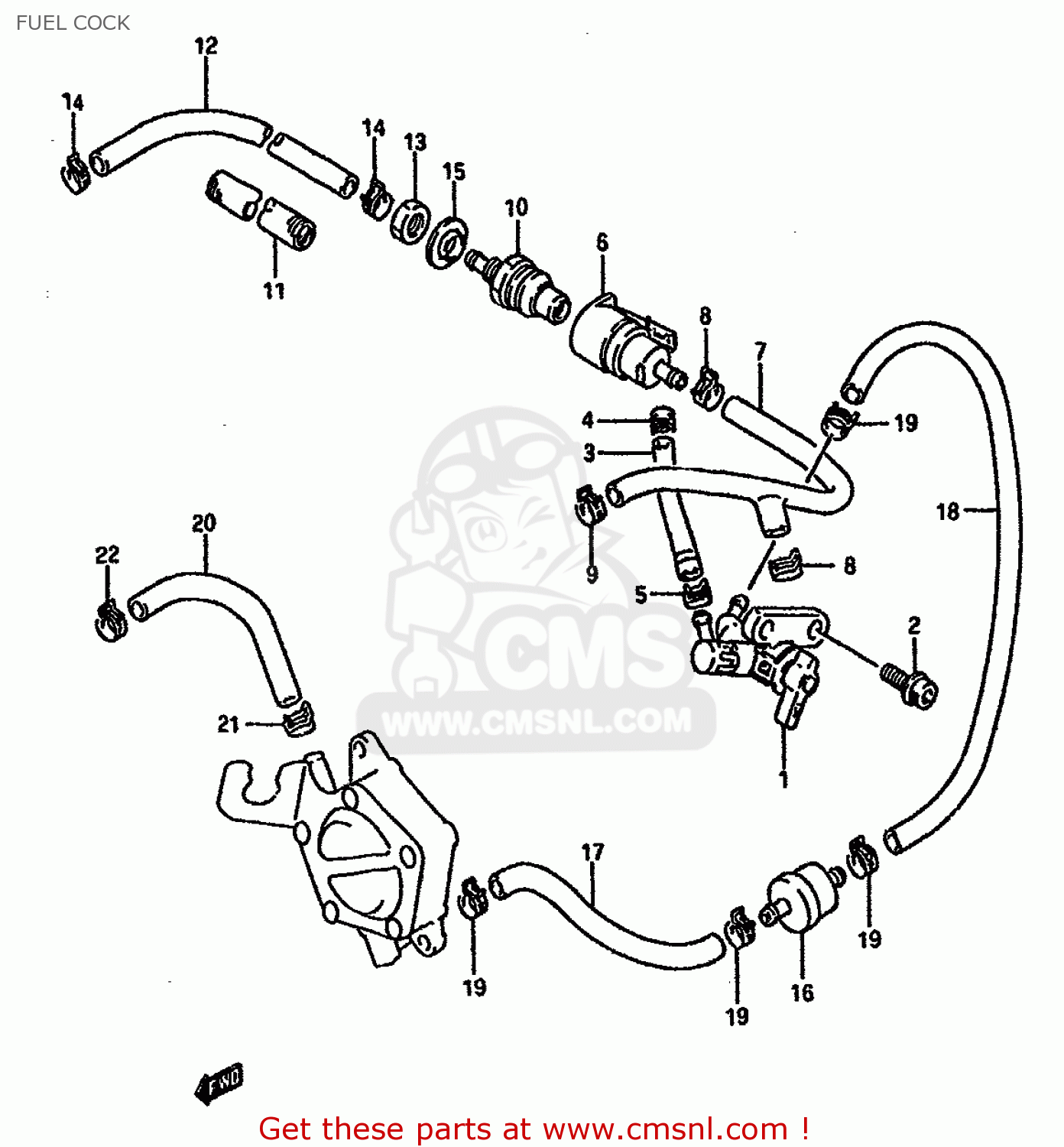

Fuel cock diagram DR750S 1989 (K) (1 2 4 15 16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

4430016701
ref: 1

COCK ASSY, FUEL

€ 58.50

0712006168
ref: 2

BOLT

€ 2.50

0935950822085
ref: 3

HOSE,FUEL ON

€ 38.00

0940108407
ref: 4

CLIP

€ 3.00

0940110409
ref: 5

CLIP

€ 2.50

6575094403
ref: 6

SOCKET,FUEL HOSE LH

€ 22.00

4442144B00
ref: 7

HOSE,FUEL 3WAY

€ 15.50

0940112404
ref: 8

CLIP

€ 2.50

0940110409
ref: 9

CLIP

€ 2.50

6572094401
ref: 10

PLUG

€ 27.00

4442344B00
ref: 11

HEATSHIELD,FUEL HOSE

€ 13.50

4442244B00
ref: 12

HOSE,FUEL JOINT,R

€ 10.00

0831022105
ref: 13

NUT

€ 2.00

0940110409
ref: 14

CLIP

€ 2.50

0916910022
ref: 15

WASHER

€ 2.50

1541094350
ref: 16

FILTER,FUEL

€ 7.00

0935253103090
ref: 17

HOSE,FUEL FILTER & PUMP

€ 19.50

0935470123180
ref: 18

HOSE

€ 26.00

0940112404
ref: 19

CLIP

€ 2.50

0935950822080
ref: 20

HOSE,PUMP & CARB

€ 38.00

0940108407
ref: 21

CLIP

€ 3.00

0940110409
ref: 22

CLIP

€ 2.50
