CAM CHAIN

DRZ400E 2005 2006 (K5) (K6) USA (E03)

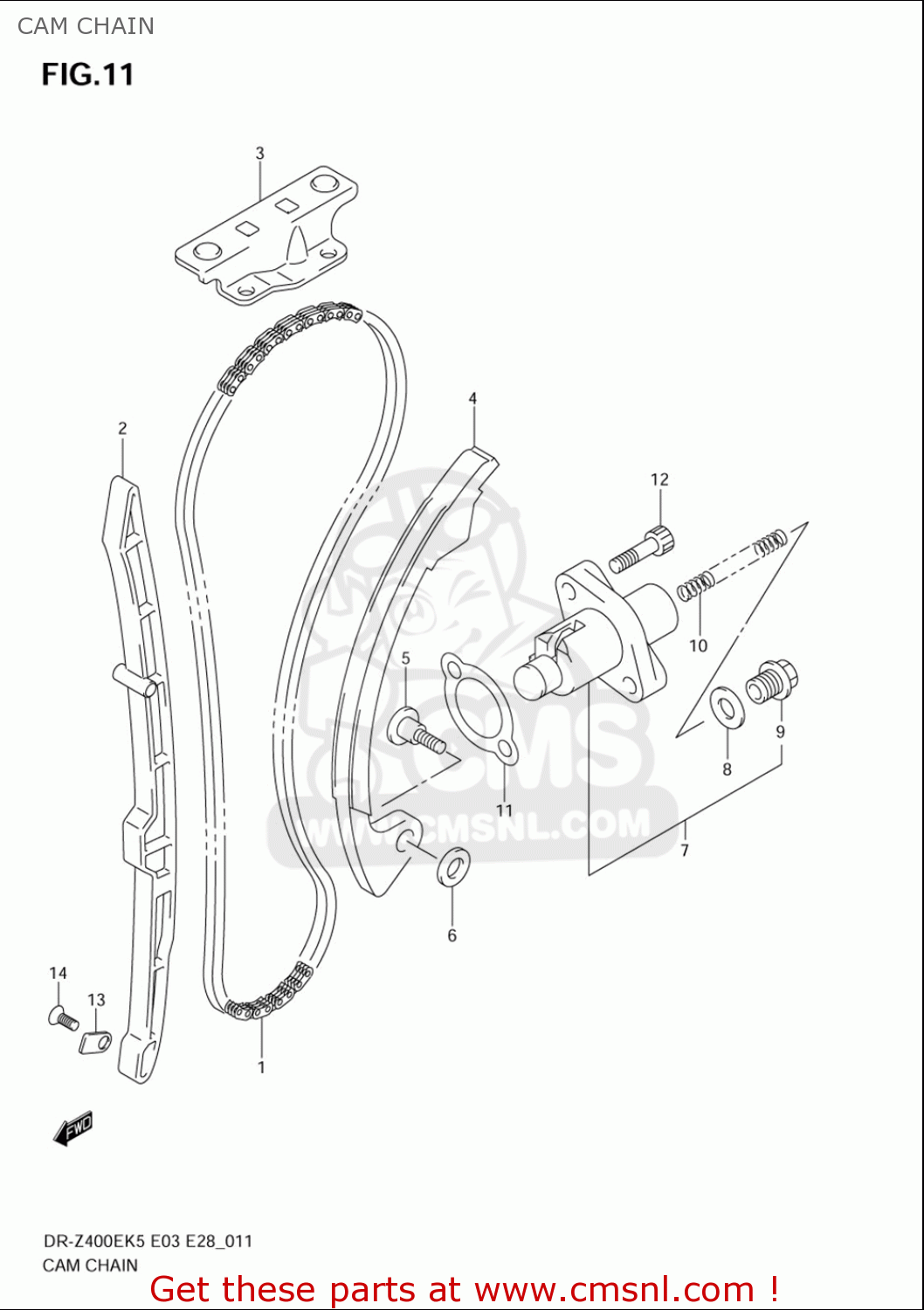

Cam chain diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276029F01
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 71.50

1277129F00
ref: 2

GUIDE,CAM CHAIN NO.1

€ 20.00

1278229F00
ref: 3

GUIDE,CAM CHAIN NO.2

€ 17.00

1281129F10
ref: 4

TENSIONER,CAM CHAIN

€ 38.50

1281235C00
ref: 5

BOLT,CAM CHAIN TENSIONER

€ 7.00

0821106181
ref: 6

WASHER

€ 2.00

1283029F10
ref: 7

ADJUSTER ASSY,TENSIONER

€ 80.50

1283724F10
ref: 8

GASKET,TENSIONER ADJUSTER (NAS)

€ 4.00

1283305A00
ref: 9

PLUG,FR TENSIONER ADJ

€ 9.00

1283139F00
ref: 10

SPRING

€ 3.50

1283724A10
ref: 11

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.50

0713006253
ref: 12

BOLT,CL.COVER

€ 3.00

1277324F00
ref: 13

RETAINER,CAM CHAIN GUIDE NO.1

€ 2.00

0912606011
ref: 14

SCREW(6X12)

€ 2.00
