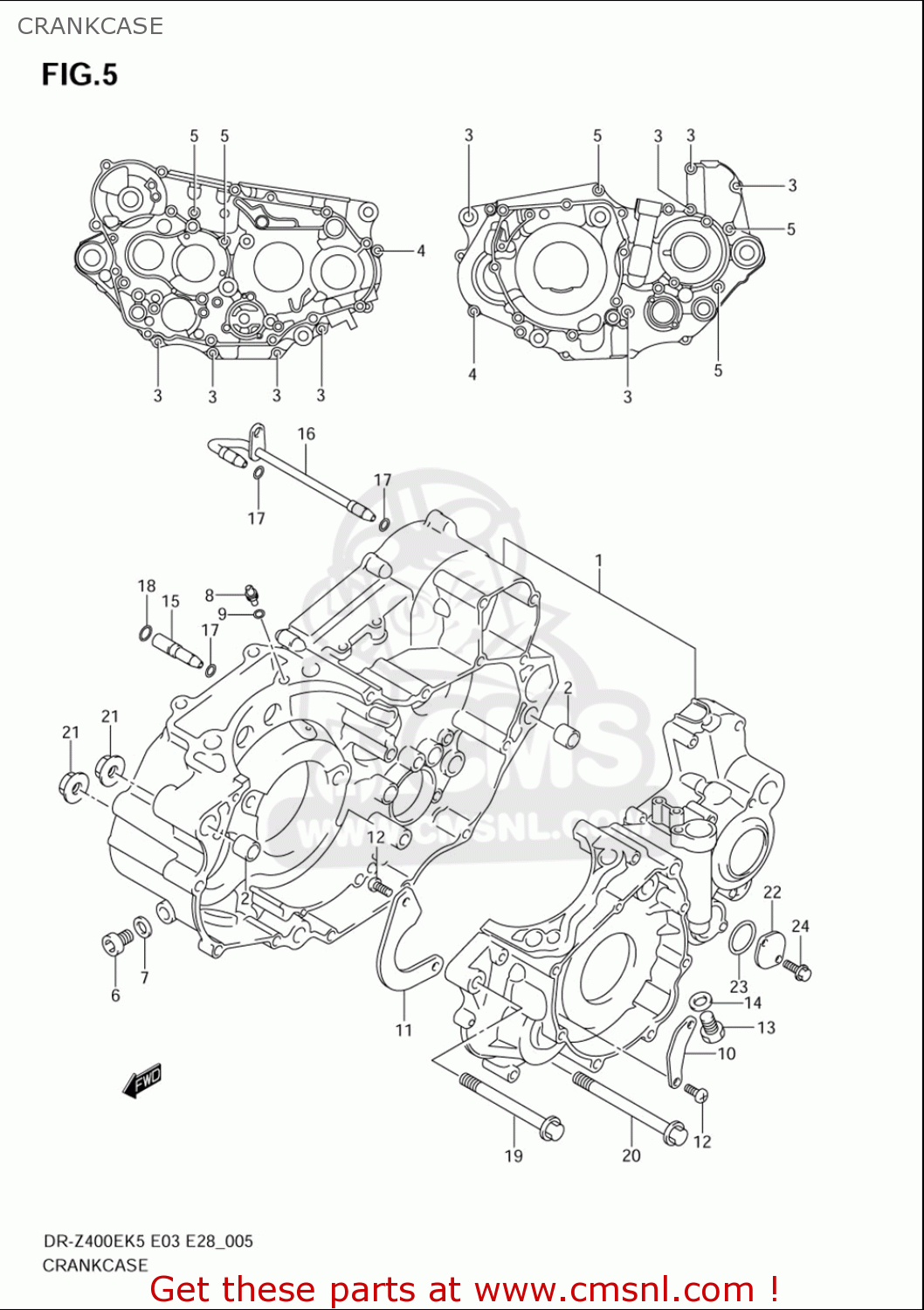

CRANKCASE

ref

part #

description

quantity

1-1

1130129853
ref: 1-1

CRANKCASE SET

€ 835.00

1-2

1130129853
ref: 1-2

CRANKCASE SET

€ 835.00

2

0421113189
ref: 2

PIN

€ 2.50

3

0154706403
ref: 3

BOLT

€ 3.00

4

0154706553
ref: 4

BOLT

€ 3.00

5

0154706703
ref: 5

BOLT

€ 3.00

6

0924810010
ref: 6

PLUG(10X10)

€ 4.00

7

0916810002
ref: 7

GASKET(10X14X3.6) (NAS)

€ 2.00

8

0949380005
ref: 8

JET(8)

€ 12.00

9

0928004004
ref: 9

O RING(D:1.2,ID:4)

€ 2.00

10

1132329F00
ref: 10

SEPARATOR,CRANKCASE OIL NO.1

€ 2.00

11

1132429F00
ref: 11

SEPARATOR,CRANKCASE OIL NO.2

€ 3.50

12-1

0912506086
ref: 12-1

SCREW(6X12)

€ 2.00

12-2

0912506110
ref: 12-2

BOLT(6X12)

€ 2.50

13

0924712011
ref: 13

PLUG(12X20)

€ 4.50

14

0916812002
ref: 14

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

15

1145129F00
ref: 15

PIPE,OIL INNER NO.1

€ 14.50

16

1146029F00
ref: 16

PIPE,T/M OIL INNER NO.2

€ 51.00

17

0928005004
ref: 17

O RING(D:1.9,ID:4.8)

€ 2.00

18

0928007004
ref: 18

O RING(D:1.9,ID:6.8)

€ 1.50

19

0910310110
ref: 19

BOLT(10X100)

€ 6.50

20

0910310063
ref: 20

BOLT(10X115)

€ 5.00

21

0915910115
ref: 21

NUT

€ 4.00

22

1145146000
ref: 22

CAP,GEAR SHIFT CAM PIVOT

€ 2.50

23

0928026005
ref: 23

O RING(D:2.4,ID:26.2)

€ 2.50

24

0154705103
ref: 24

BOLT

€ 2.50
