MAGNETO

DRZ400E 2005 2006 (K5) (K6) USA (E03)

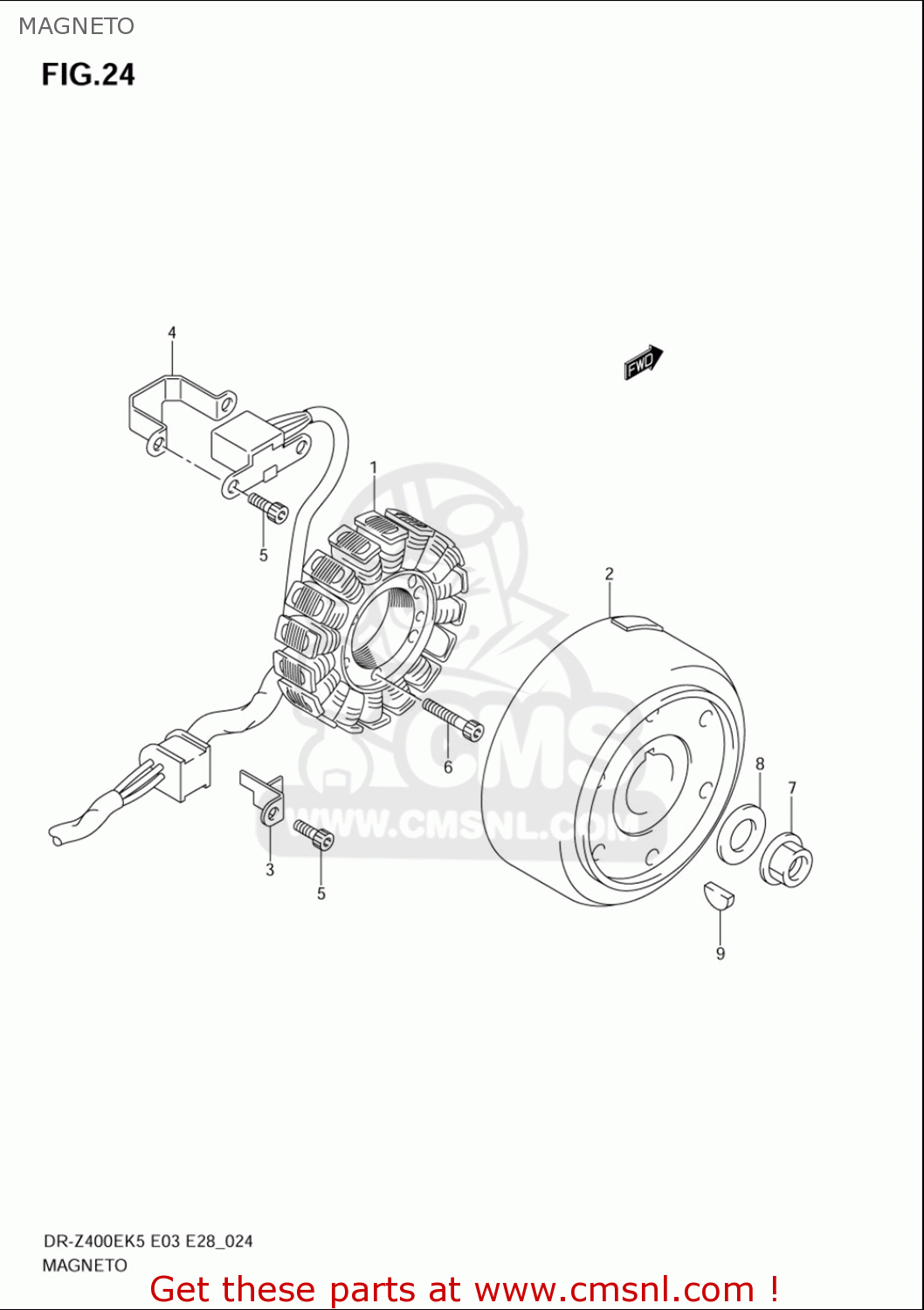

Magneto diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

MAGNETO DRZ400E 2005 2006 (K5) (K6) USA (E03)

MAGNETO DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3210129F00
ref: 1

STARTER ASSY

€ 523.00

2

3210229F00
ref: 2

ROTOR ASSY

€ 413.00

3

3237113E00
ref: 3

CLAMP,MAGNETO LEAD NO.1

€ 3.00

4

3237114D01
ref: 4

CLAMP,MAGNETO LEAD WIRE

€ 3.50

5

0713005123
ref: 5

BOLT

€ 2.50

6

0713005253
ref: 6

BOLT

€ 2.00

7

0915912055
ref: 7

NUT

€ 3.50

8

0916012051
ref: 8

WASHER(12X27X2)

€ 1.50

9

0942004008
ref: 9

KEY

€ 3.50
