SEAT

DRZ400E 2005 2006 (K5) (K6) USA (E03)

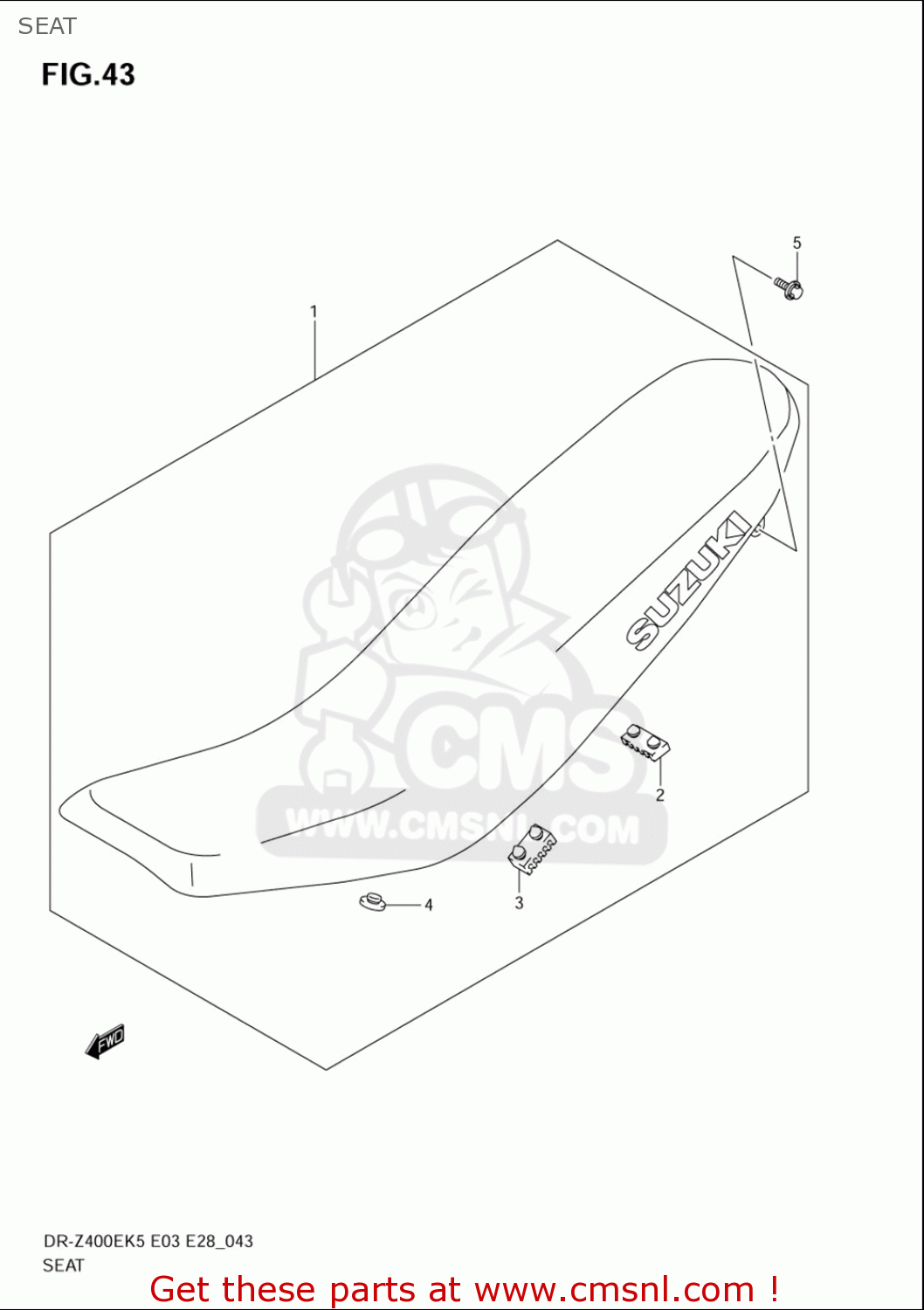

Seat diagram DRZ400E 2005 2006 (K5) (K6) USA (E03)

SEAT DRZ400E 2005 2006 (K5) (K6) USA (E03)

SEAT DRZ400E 2005 2006 (K5) (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4510029F90BAE
ref: 1-1

SEAT ASSY

€ 330.00

1-2

4510029F90CEP
ref: 1-2

SEAT ASSY

€ 230.50

2

4514912C00
ref: 2

CUSHION,SEAT(40X20X6)

€ 3.00

3

4514931300
ref: 3

CUSHION,SEAT(40X20X15)

€ 2.00

4

0932110022
ref: 4

CUSHION

€ 2.00

5-1

0911606182
ref: 5-1

BOLT(6X20)

€ 3.00

5-2

0911606188
ref: 5-2

BOLT

€ 3.00
