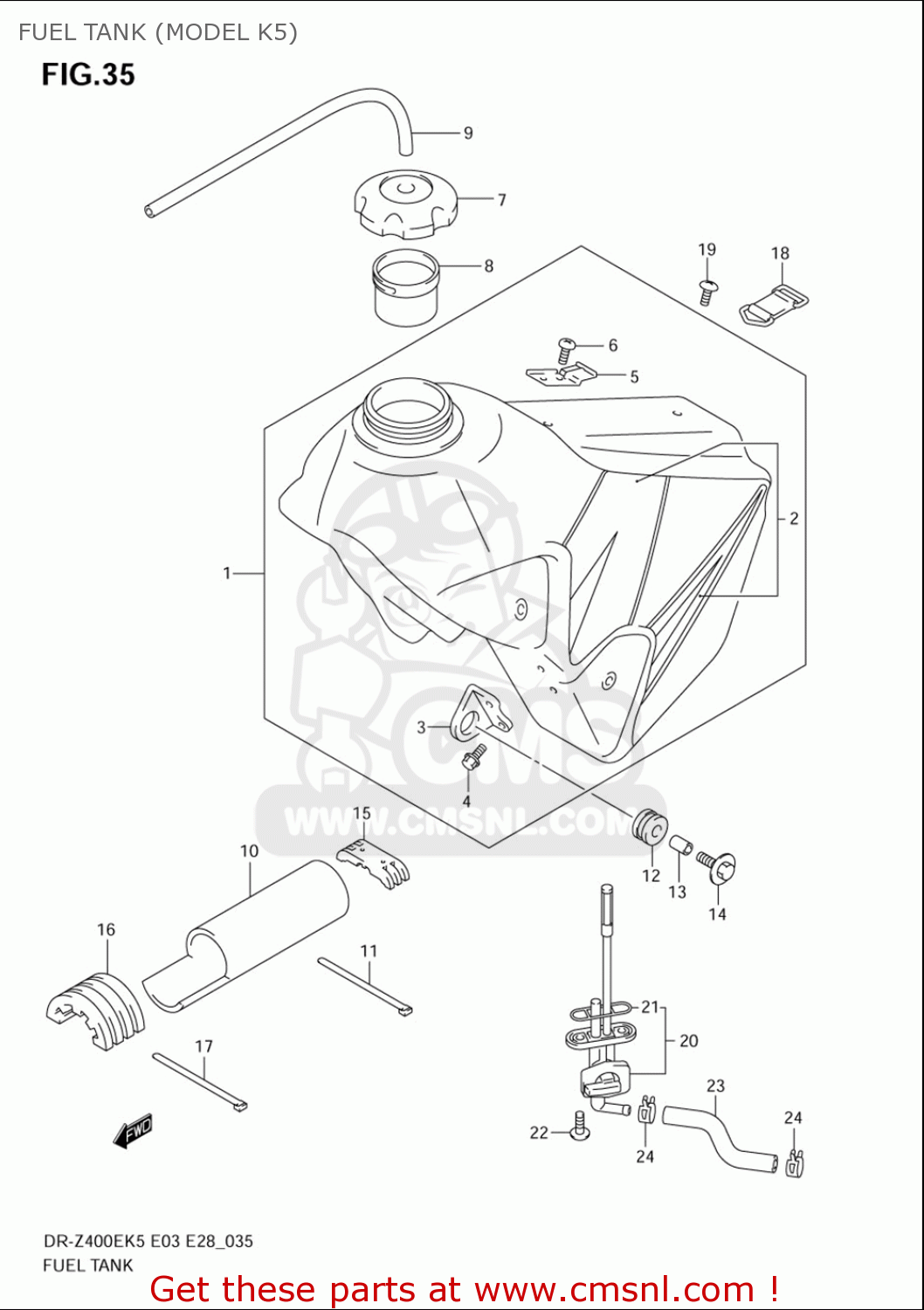

FUEL TANK (MODEL K5)

ref

part #

description

quantity

1

4910029F00YU1
ref: 1

TANK ASSY,FUEL(YELLOW)

€ 480.50

2

6811029FA0AZR
ref: 2

TAPE SET,FUEL TANK

€ 138.00

3

4413127C01
ref: 3

BRACKET,FUEL TANK FR

€ 6.50

4

0154706123
ref: 4

BOLT

€ 2.00

5

4413244E01
ref: 5

HOOK,SEAT FR

€ 5.50

6

021420612A
ref: 6

SCREW

€ 2.00

7

4420029F00
ref: 7

CAP ASSY,FUEL TANK FILLER

€ 42.50

8

4419919A00
ref: 8

TUBE,FILLER INLET

€ 4.00

9

0935250823600
ref: 9

HOSE(5X8.2X600)

€ 13.00

10

4419429F00
ref: 10

SHIELD,FUEL TANK

€ 38.50

11

0940730402
ref: 11

CLAMP(L:300)

€ 3.50

12

1476201B01
ref: 12

CUSHION,MUFFLER

€ 3.00

13

0918006268
ref: 13

SPACER(6.5X9X13.5)

€ 2.00

14

0911806112
ref: 14

BOLT(6X30)

€ 3.00

15

4454229F00
ref: 15

CUSHION,FUEL TANK RR

€ 14.00

16

4454129F00
ref: 16

CUSHION,FUEL TANK

€ 21.50

17

0940730402
ref: 17

CLAMP(L:300)

€ 3.50

18

4456044E00
ref: 18

BAND,FUEL TANK RR

€ 8.50

19

021420616A
ref: 19

SCREW

€ 2.50

20

4430029F10
ref: 20

COCK ASSY,FUEL

€ 80.50

21

4434887420
ref: 21

GASKET,JOINT (NAS)

€ 5.00

22

0154706163
ref: 22

BOLT

€ 2.50

23-1

4442129F00
ref: 23-1

HOSE,FUEL

€ 7.50

23-2

4442129F10
ref: 23-2

HOSE,FUEL

€ 7.50

24

0940111413
ref: 24

CLIP

€ 2.50

all assemblies
